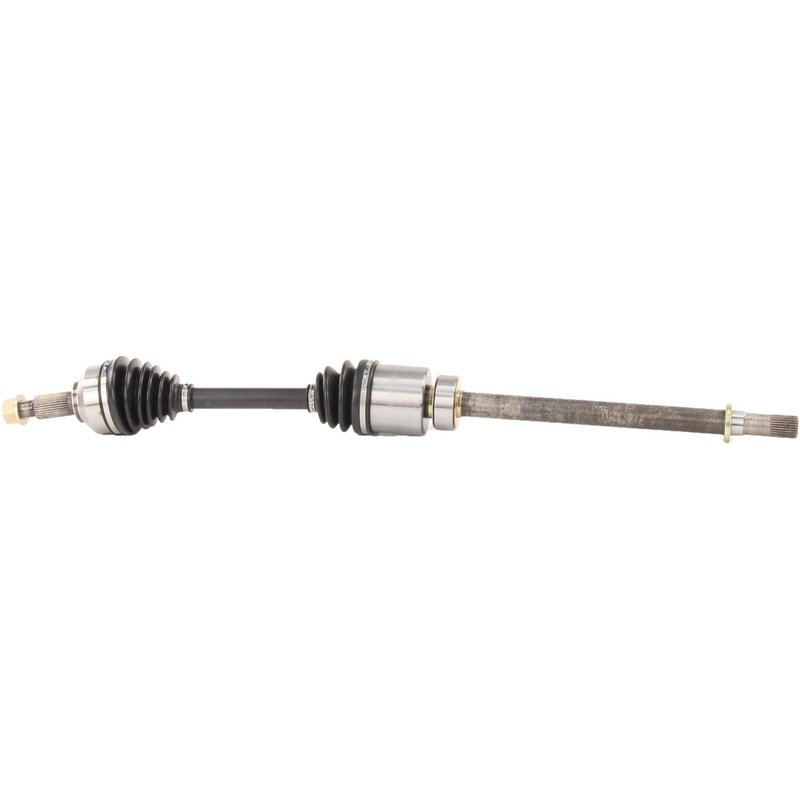

TrakMotive NI-8539 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8539 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.84 |
| Overall Compressed Length (mm) | 1012 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 11 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Durable boot material helps protect the joint from road grime and moisture.
Axle nut included. Comes with a hex nut and cotter-pin locking style for easier installation.
Cross-references TrakMotive NI-8539 and C9100-3TA0J-NW for the same application. See all 2.
TrakMotive CV Axle Shaft for Nissan Front Right Service
Restore front driveline performance with the TrakMotive CV Axle Shaft, part number NI-8539. This new axle shaft is built for front right applications on select Nissan Maxima and Nissan Altima models, with OE-style dimensions and spline counts for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8539
- Front right position
- New construction
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type
- Axle nut included with cotter pin locking type
- Axle nut thread size: M24*1.5
- Overall compressed length: 39.84 in. (1012 mm)
- 29 inboard splines and 32 outboard splines
- ABS tone ring not included
Product Details
TrakMotive NI-8539 is a CV axle shaft for front right driveline replacement on 2016-2020 Nissan Maxima, front right; 2014-2017 Nissan Altima, front right; 2018 Nissan Altima, front right with standard duty replacement notes; and 2013 Nissan Altima, front right with automatic transmission note. It is engineered as a new axle assembly with a neoprene boot, male inboard connection, spline-style outboard connection, and conventional outboard joint design. The included axle nut uses a hex head, M24*1.5 thread, and cotter pin locking style.
This TrakMotive CV axle shaft, NI-8539, is a direct-fit driveline replacement for Nissan Maxima and Nissan Altima front right service where the listed spline counts and compressed length match the original application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Torn boot conditions that can lead to grease loss and joint wear
- Front right driveline noise on Nissan Maxima or Nissan Altima
- Replacement after axle spline or joint wear
Installation Notes
Verify front right fitment by matching year, model, transmission notes, spline counts, and axle length before installation. Confirm the axle nut thread size and locking style during service, and inspect the hub, seals, and surrounding suspension components for wear before reassembly. ABS tone ring is not included on this axle shaft.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for driveline replacement parts.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Nissan | Maxima | — | — | — | — | Front Right | CV Axle Shaft |
| 2019 | Nissan | Maxima | — | — | — | — | Front Right | CV Axle Shaft |
| 2018 | Nissan | Altima | — | Automatic CVT | 3.5L | V6 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Nissan | Maxima | — | — | — | — | Front Right | CV Axle Shaft |
| 2017 | Nissan | Altima | — | — | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2017 | Nissan | Maxima | — | — | — | — | Front Right | CV Axle Shaft |
| 2016 | Nissan | Altima | — | — | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2016 | Nissan | Maxima | — | — | — | — | Front Right | CV Axle Shaft |
| 2015 | Nissan | Altima | — | — | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2014 | Nissan | Altima | Sedan | — | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2013 | Nissan | Altima | — | — | 3.5L | V6 | Front Right | Automatic; CV Axle Shaft |
