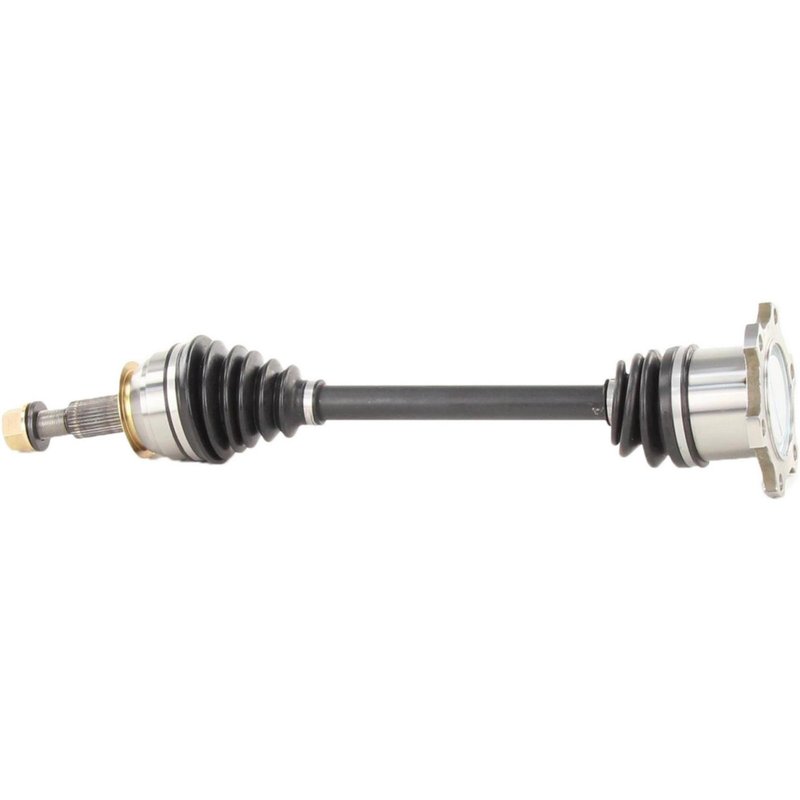

TrakMotive NI-8593 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft NI-8593 for Infiniti M45

The TrakMotive CV Axle Shaft NI-8593 is designed specifically for Infiniti M45 models, providing reliable driveline performance. This new CV axle shaft ensures proper torque transfer and smooth operation for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Infiniti M45
• New, not remanufactured
• Neoprene boot material for durability
• Hex head axle nut with cotter pin locking
• Overall compressed length of 25.1 inches (637.5 mm)
• Flange type inboard joint with bolt-on shaft connection
• Conventional outboard joint with 32 splines and spline shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials such as neoprene boots and secure connection styles like bolt-on flanges and spline shafts. The NI-8593 model exemplifies these standards, engineered to meet the specific requirements of the Infiniti M45's driveline system.

Technical Specifications and Features

The NI-8593 CV axle shaft includes a hex head axle nut measuring 1.25 inches (31.8 mm) across the flats, with a height of 0.93 inches (23.6 mm) and a length of 1.35 inches (34.4 mm). The axle nut features an M24x1.5 thread size and uses a cotter pin locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is a flange type with a bolt-on shaft connection style, while the outboard joint is conventional with a spline connection featuring 32 splines. The overall compressed length of the axle shaft is 25.1 inches (637.5 mm), ensuring proper fitment and alignment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Infiniti M45
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by maintaining boot integrity
• Restores proper torque transfer and driveline stability

Installation Notes and Tips

When installing the TrakMotive NI-8593 CV axle shaft on an Infiniti M45, ensure the cotter pin locking axle nut is properly secured to prevent loosening. Verify the bolt-on flange connection is torqued to manufacturer specifications. Inspect the neoprene boot for any damage before installation to maintain joint protection. Proper alignment of the spline shaft and outboard joint is critical for smooth operation and longevity.

Quality Assurance and Warranty Information

This CV axle shaft is a new, high-quality replacement part manufactured to meet OEM standards. TrakMotive ensures durability through the use of robust materials such as neoprene boots and precision-machined joints. While specific warranty details are not provided, the product is designed to offer reliable service life consistent with professional automotive replacement parts.
