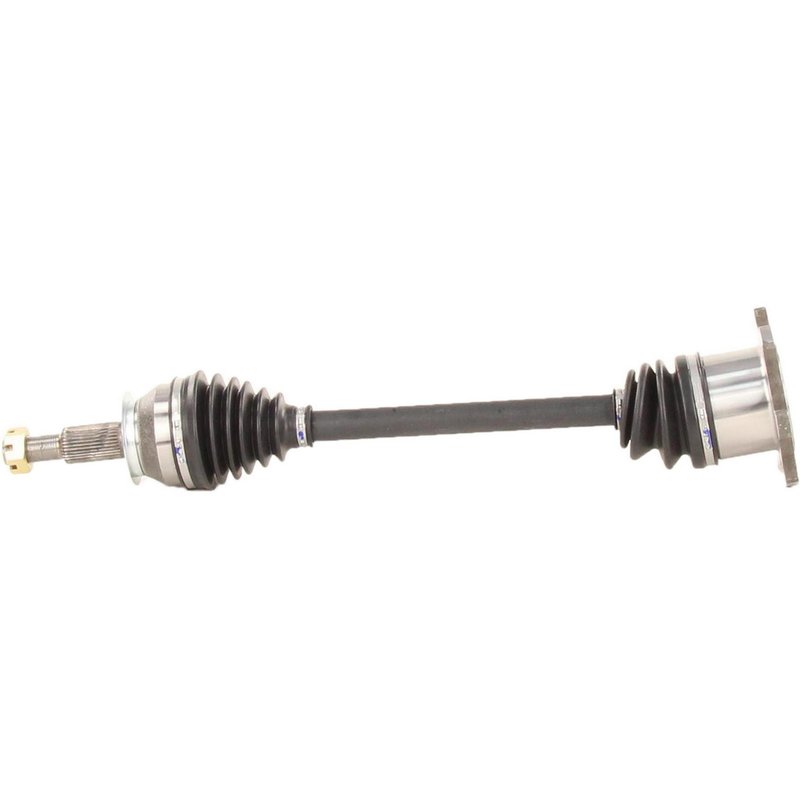

TrakMotive NI-8594 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft NI-8594 for Infiniti M45

The TrakMotive CV Axle Shaft NI-8594 is designed specifically for the Infiniti M45, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Infiniti M45 models
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced joint protection
• Inboard flange joint with bolt-on shaft connection
• Outboard conventional joint with spline shaft connection
• Overall compressed length of 26.06 inches (662 mm)
• Axle nut specifications: hex head, 1.4 inch (35.5 mm) hex size, 0.69 inch (17.5 mm) height
• Axle nut thread size M24*1.5 and length 1.61 inches (41 mm)
• 32 outboard splines for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and robust joint designs, including flange inboard joints and conventional outboard joints, to maintain drivetrain integrity and performance. The NI-8594 model exemplifies these standards with its tailored fitment for the Infiniti M45.

Technical Description and Features

The NI-8594 CV axle shaft is a new, direct replacement part engineered to meet OEM specifications for the Infiniti M45. It features a neoprene boot that offers resistance to wear and environmental factors, protecting the CV joints from contaminants. The inboard joint uses a flange design with a bolt-on connection style, ensuring secure attachment to the transmission. The outboard joint is conventional with a spline connection, providing a reliable interface with the wheel hub. The included axle nut has a hex head type with a cotter pin locking mechanism, thread size M24*1.5, and precise dimensions to match factory requirements. The overall compressed length of 26.06 inches (662 mm) ensures proper fitment and alignment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Infiniti M45
• Eliminates clicking or popping noises during turns caused by failing CV joints
• Resolves vibration issues related to axle shaft imbalance or joint wear
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle nut loosening with included cotter pin locking type nut

Installation Notes and Tips

• Ensure compatibility with Infiniti M45 model year before installation
• Use proper torque specifications for axle nut (M24*1.5 thread) and secure cotter pin
• Inspect surrounding suspension and driveline components during replacement
• Verify boot seating and joint alignment to prevent premature wear
• Professional installation recommended for accurate fitment and safety

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8594 is manufactured as a new component, meeting industry standards for durability and performance. It includes a factory-supplied axle nut with a cotter pin locking mechanism to ensure secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to quality control processes to support reliable operation in Infiniti M45 vehicles.
