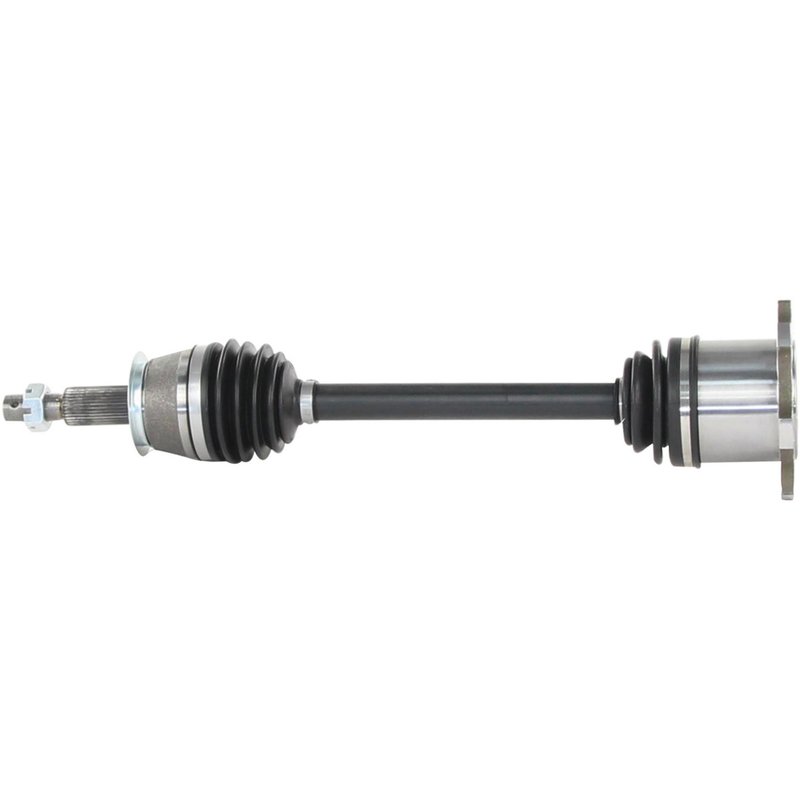

TrakMotive NI-86001 CV Axle Shaft - Rear
| Brand | TrakMotive NI-86001 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.55 |
| Overall Compressed Length (mm) | 649 |
| Overall Extended Length (in) | 27.64 |
| Overall Extended Length (mm) | 702 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 5 vehicles |
Bolt-on installation. Inboard flange connection helps simplify replacement.
Premium grade. Built with neoprene and thermoplastic boots for added durability.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive NI-86001 and 39600ZS00A for the same application. See all 2.
Rear CV Axle Shaft for Pathfinder
TrakMotive NI-86001 is a rear CV axle shaft for 2008-2012 Nissan Pathfinder models with standard duty replacement needs. It is built as a premium driveline component with OE-style fitment details for the rear axle position.
TrakMotive CV Axle Shaft products are part of the brand’s driveline and axle line, focused on direct-fit replacement components for passenger vehicles and light-duty applications. NI-86001 follows that approach with application-specific dimensions, spline counts, and joint construction for the Nissan Pathfinder rear axle.
- Fits 2008-2012 Nissan Pathfinder, rear
- Premium-grade CV axle shaft for driveline service
- Outboard shaft connection style: spline
- Outboard joint type: conventional
- Inboard joint type: flange with bolt-on connection
- 32 outboard splines
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and cotter pin locking type
- Overall compressed length: 649 mm; overall extended length: 702 mm
This rear CV axle shaft is used to restore torque transfer from the differential to the rear wheel assembly on the 2008-2012 Nissan Pathfinder. It cross-references Nissan 39600ZS00A for the same application.
- Rear axle vibration caused by worn CV joints
- Clicking or popping from the driveline during acceleration or turning
- Axle shaft play from damaged splines or joint wear
- Loss of smooth power delivery to the rear wheels
- Service replacement for a damaged or corroded rear CV axle
Installation should follow vehicle-specific service procedures and torque specifications. Verify rear position, spline count, flange bolt pattern, and axle nut thread size before installation. Inspect related seals, hub components, and mounting hardware condition during service.
Quality assurance is supported by TrakMotive’s ISO 9001:2008 and TS 16949:2009 certified manufacturing processes. NI-86001 is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Nissan | Pathfinder | 5.6L | V8 | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2011 | Nissan | Pathfinder | 5.6L | V8 | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Nissan | Pathfinder | 5.6L | V8 | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2009 | Nissan | Pathfinder | 5.6L | V8 | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Nissan | Pathfinder | 5.6L | V8 | Rear | Standard Duty Replacement; CV Axle Shaft |
