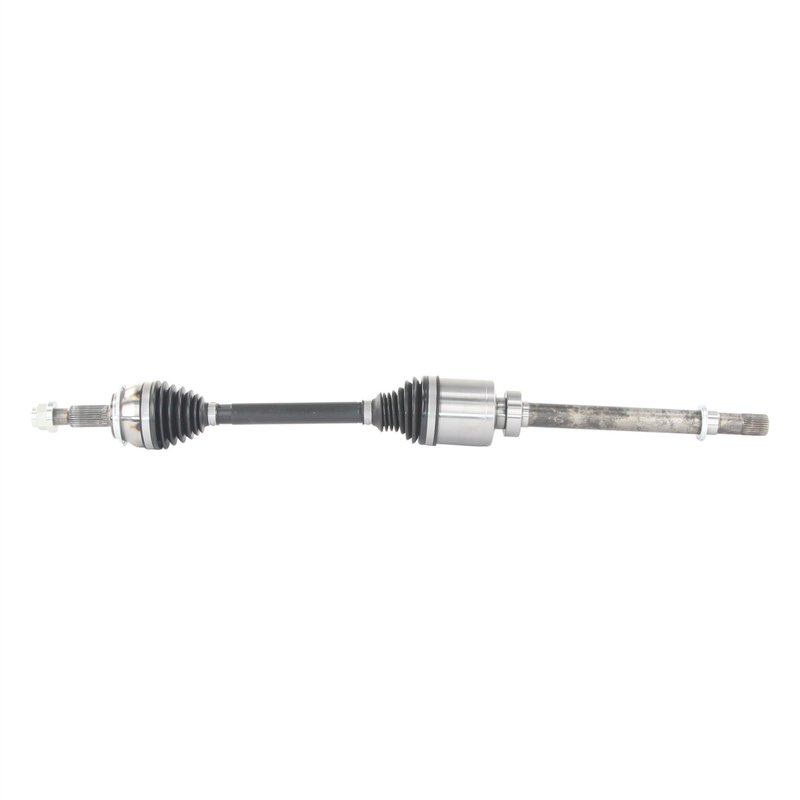

TrakMotive NI-86017 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-86017 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.19 |
| Axle Nut Height (mm) | 30 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.31 |
| Overall Compressed Length (mm) | 948 |
| Overall Extended Length (in) | 39.625 |
| Product line | AAR CV Axle Shaft |
| Fits | Nissan · 2 vehicles |
Premium grade. Built as a CV axle shaft with a durable thermoplastic boot design.
Spline connection. 29-spline ends help deliver a secure, precise fit.
Axle nut included. Comes with a hex nut and stake locking type for easier assembly.
Cross-references TrakMotive NI-86017 and NCV53214 for the same application. See all 2.
TrakMotive NI-86017 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft NI-86017 is built for the front right position on select Nissan Rogue models. It is a premium-grade replacement axle with a long-male inboard joint, conventional outboard joint, and spline connections at both ends for a direct driveline service fit.
Key Features
- Fits 2022-2023 Nissan Rogue, front right
- TrakMotive AAR CV Axle Shaft line for OE-style driveline service
- Premium grade construction
- 29-spline inboard and 29-spline outboard shaft connection
- Thermoplastic boot material on both inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 32 mm hex size, and stake locking type
- ABS ring tooth count: 0; ABS tone ring not included
- Overall compressed length: 37.31 in (948 mm)
- Overall extended length: 39.625 in (1006 mm)
Product Details
This TrakMotive NI-86017 CV axle shaft is engineered for the front right side of the 2022-2023 Nissan Rogue with OE AAR design. The AAR CV Axle Shaft product line focuses on application-specific driveline replacement, and this axle follows the original-style spline and joint configuration needed for proper fitment in the Nissan Rogue front axle position. TrakMotive NI-86017 also cross-references NCV53214 for the same application.
What This Part Helps Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or deteriorated CV boots that expose joint grease
- Axle shaft play or noise from damaged splines or joints
- Front right driveline service on a 2022-2023 Nissan Rogue
Installation Notes and Tips
Verify the front right application, axle nut thread size, and spline count before installation. This axle uses a hex-style axle nut with stake locking, so the nut should be secured according to the vehicle service procedure. Confirm that the OE AAR design matches the original axle configuration on the vehicle before replacement.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management practices.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Nissan | Rogue | FWD | 1.5L | L3 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Nissan | Rogue | FWD | 1.5L | L3 | Front Right | OE AAR design; AAR CV Axle Shaft |
