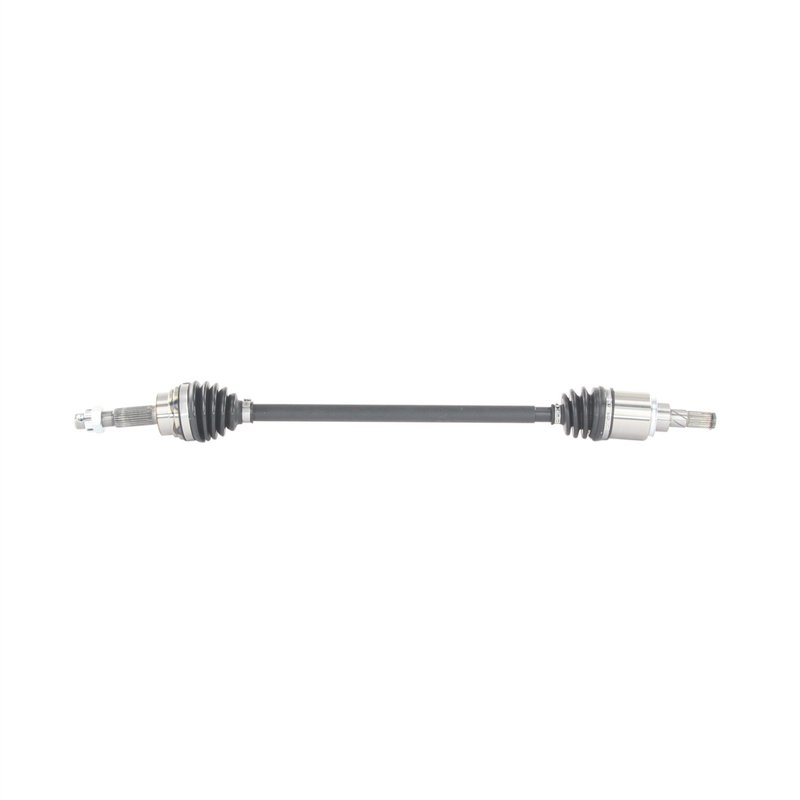

TrakMotive NI-86021 CV Axle Shaft - Rear
| Brand | TrakMotive NI-86021 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 21 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.25 |
| Overall Compressed Length (mm) | 819 |
| Overall Extended Length (in) | 33.81 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 3 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Premium grade. Built with neoprene and thermoplastic boot materials for added durability.
Includes axle nut. Comes with a hex nut and cotter-pin locking type.
Cross-references TrakMotive NI-86021 and NCV53215 for the same application. See all 2.
Rear CV Axle Shaft for Nissan Rogue
TrakMotive NI-86021 is a premium rear CV axle shaft for the 2021-2023 Nissan Rogue. It is built for standard-duty replacement service and includes the axle nut for a direct repair-focused installation.
Key Features
- Fits 2021-2023 Nissan Rogue, rear
- Premium-grade CV axle shaft for driveline repair
- Overall compressed length: 32.25 in. (819 mm)
- Overall extended length: 33.81 in. (859 mm)
- Inboard joint type: male with 21 splines
- Outboard joint type: conventional with 25 splines
- Neoprene inboard boot and thermoplastic outboard boot
- Axle nut included; M22x1.5 thread, 32 mm hex size, cotter pin locking type
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive CV Axle Shaft NI-86021 is engineered for rear axle service on the Nissan Rogue from 2021 through 2023. The shaft uses a spline-style inboard connection and a spline-style outboard connection, with boot materials selected for driveline protection in normal road use. TrakMotive identifies this part as a premium replacement and notes that its axle shafts are backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing processes. This part cross-references Monroe Shocks & Struts (e.g., NCV53215) for the same application.
What It Helps Repair
- Clicking or popping noises from the rear driveline during turns
- Vibration or shudder caused by a worn CV axle shaft
- Grease leakage from damaged axle boots
- Excessive play from worn axle splines or joints
- Loss of smooth power transfer to the rear wheels
Installation Notes and Tips
Confirm rear position and verify spline count, axle nut thread size, and compressed length before installation. The included axle nut uses a 32 mm hex size and M22x1.5 thread. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that its manufacturing is certified to ISO 9001:2008 and TS 16949:2009 standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Nissan | Rogue | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Nissan | Rogue | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Nissan | Rogue | Rear | Standard Duty Replacement; CV Axle Shaft |
