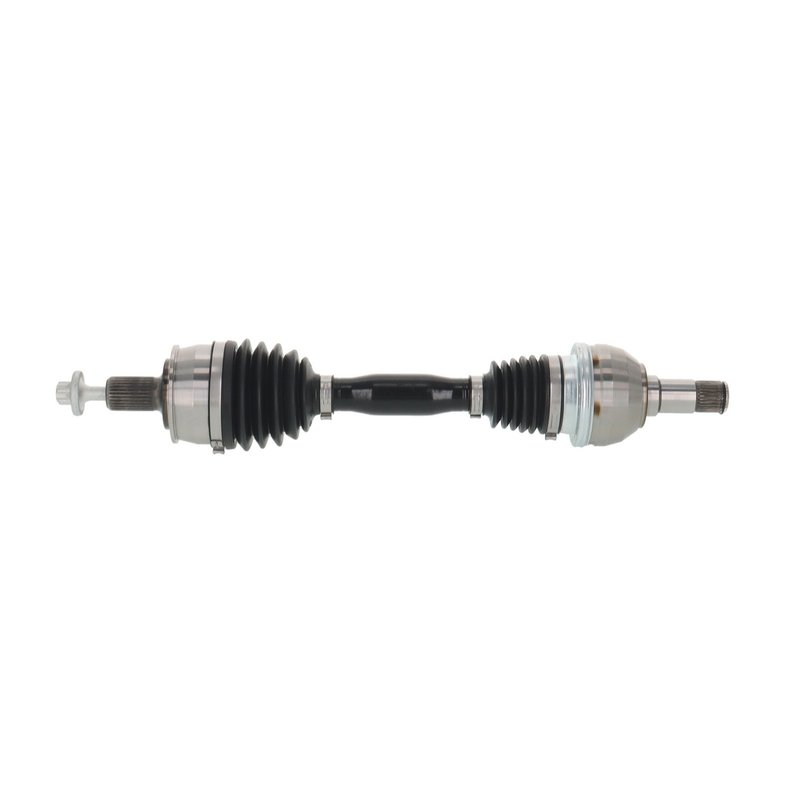

TrakMotive NI-86025 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-86025 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 16 |
| Axle Bolt Length (mm) | 80 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.31 |
| Overall Compressed Length (mm) | 542 |
| Overall Extended Length (in) | 22.94 |
| Overall Extended Length (mm) | 583 |
| Product line | CV Axle Shaft |
| Fits | INFINITI · 3 vehicles |
OE-style replacement. Built for driveline service with application-specific spline and bolt specifications.
Thermoplastic boots. Inboard and outboard joint boots help protect the axle assembly from contamination.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive NI-86025 for the same application. See all 1.
Overview
TrakMotive NI-86025 is a premium CV axle shaft for select compact crossover applications. It is built for the front left position and follows an OEM-style axle design to help maintain original ride quality.
Fits 2017-2019 INFINITI QX30, front left. This part cross-references TrakMotive (e.g., NI-86025) for the same application.
Key Features
- Premium-grade CV axle shaft for driveline service and replacement.
- Thermoplastic boots on the inboard and outboard joints for durable joint protection.
- 27-spline inboard connection and 30-spline outboard connection for application-specific fitment.
- ABS tone ring not included, making it suitable for non-ABS applications unless otherwise noted.
- Axle bolt specification: M16x1.5 thread, 16 mm hex, 80 mm length.
Detailed Description
The TrakMotive NI-86025 CV axle shaft is engineered for direct replacement service on the front left side of the INFINITI QX30. Its OEM-style construction is intended to preserve the vehicle’s original driveline feel, while the spline counts and bolt specifications support accurate fitment for the listed application. The thermoplastic boot material helps protect the joints from contamination during normal operation.
TrakMotive identifies this axle as a premium-grade driveline component and backs it with ISO 9001:2008 and TS 16949:2009 certified manufacturing. The NI-86025 is also listed with a limited lifetime warranty. For buyers searching for an INFINITI QX30 front left CV axle shaft, NI-86025 provides a fitment-specific replacement option.
Common Issues This Part May Address
- Clicking or popping noises during turns from a worn CV joint.
- Vibration or shudder caused by a damaged axle shaft.
- Torn boot conditions that expose the joint to dirt and moisture.
- Loss of driveline smoothness from internal joint wear.
- Replacement needs after axle damage or excessive play.
Installation Notes
Verify spline counts, axle bolt specifications, and ABS requirements before installation. This axle is listed without an ABS tone ring and without an axle nut, so confirm the vehicle’s original configuration matches the part before service. Professional installation and final inspection of driveline components are recommended.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty. Manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | INFINITI | QX30 | AWD | Front Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2018 | INFINITI | QX30 | AWD | Front Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2017 | INFINITI | QX30 | AWD | Front Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
