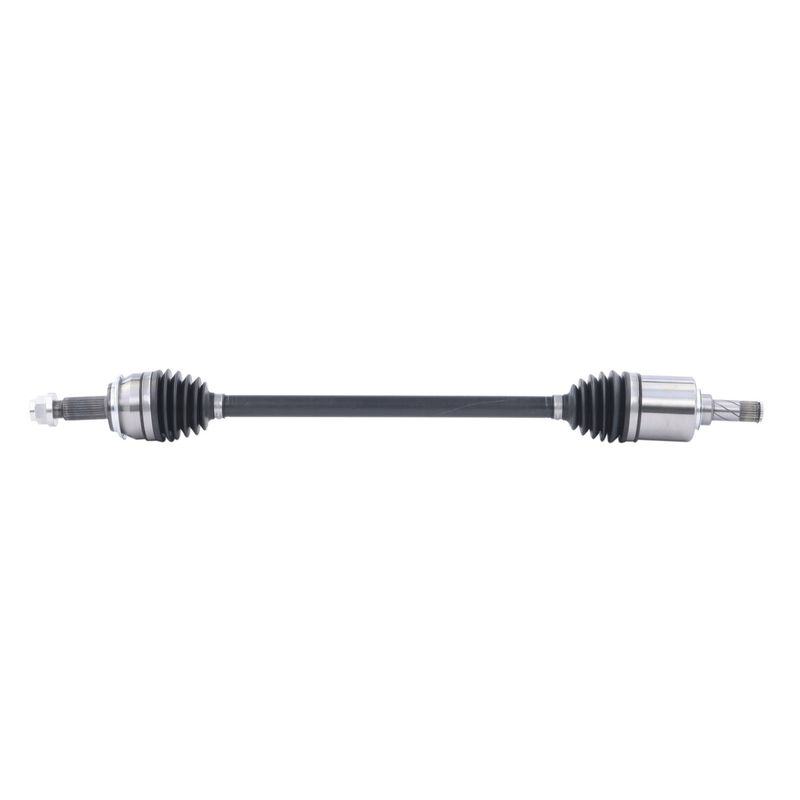

TrakMotive NI-86031 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-86031 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.19 |
| Axle Nut Height (mm) | 30 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 35 |
| Overall Compressed Length (mm) | 889 |
| Overall Extended Length (In) | 37 |
| Overall Extended Length (mm) | 941 |
| Product line | AAR CV Axle Shaft |
| Fits | Nissan · 2 vehicles |
OE AAR design. Application-specific axle shaft built for the listed driveline configuration.
Spline connection design. Male inboard joint with 26 inboard splines and 29 outboard splines.
Limited lifetime warranty. Backed by TrakMotive and manufactured under ISO 9001:2008 and TS 16949:2009 certification.
Cross-references TrakMotive NI-86031 for the same application. See all 1.
Overview
TrakMotive NI-86031 is an AAR CV axle shaft for select Nissan ARIYA applications. It is built for front right fitment and follows the OE AAR design noted in the fitment data, making it a direct replacement for the specified application.
This CV axle shaft uses a conventional outboard joint, spline connections, and a hex axle nut with a stake locking type. The axle nut is included, and the unit is specified without an ABS tone ring for non-ABS applications.
Key Features
- Fits 2023-2024 Nissan ARIYA, front right.
- OE AAR design for the listed application.
- Male inboard joint with spline shaft connections.
- Conventional outboard joint construction.
- Axle nut included with M24x1.5 thread size.
- Specified without ABS tone ring for non-ABS use.
Detailed Description
The TrakMotive NI-86031 CV axle shaft is engineered for the front right position on 2023-2024 Nissan ARIYA models listed in the fitment data. The shaft measures 35 inches compressed and 37 inches extended, with 26 inboard splines and 29 outboard splines to match the specified driveline configuration. TrakMotive NI-86031 is a fitment-specific driveline component for the Nissan ARIYA and is identified as an OE AAR design replacement for the application shown.
TrakMotive’s AAR CV Axle Shaft line focuses on application-specific axle assemblies with the connection style and joint design needed for the listed vehicle fitment. Part number NI-86031 is also referenced as NI-86031 in interchange data.
What It Is Used For
- Restoring driveline operation when the original axle shaft is worn or damaged.
- Addressing clicking or vibration caused by CV joint wear.
- Replacing a shaft with incorrect spline count or length.
- Correcting fitment issues on the specified front right application.
Installation Notes and Tips
Verify the vehicle’s ABS configuration before installation, since this axle is listed without an ABS tone ring and is intended for non-ABS applications unless otherwise noted. Confirm spline counts, compressed length, extended length, and axle nut thread size against the removed part before installation. Use the included axle nut and follow the vehicle service procedure for proper torque and staking.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this part. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Nissan | ARIYA | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2023 | Nissan | ARIYA | Front Right | OE AAR design; AAR CV Axle Shaft |
