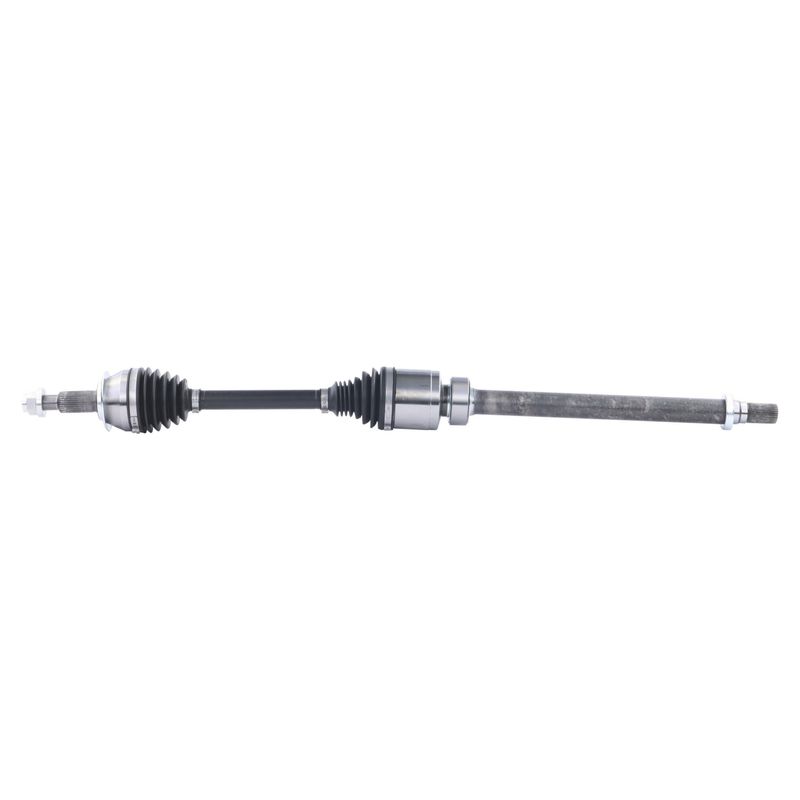

TrakMotive NI-86032 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-86032 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.19 |
| Axle Nut Height (mm) | 30 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 42.25 |
| Overall Compressed Length (mm) | 1073 |
| Overall Extended Length (In) | 44.38 |
| Overall Extended Length (mm) | 1127 |
| Product line | AAR CV Axle Shaft |
| Fits | INFINITI and Nissan · 4 vehicles |
OE AAR design. Built for direct replacement service with listed driveline specifications.
Spline connection style. Uses 30 inboard splines and 32 outboard splines for precise engagement.
Included axle nut. Supplied with M24x1.5 thread, 32 mm hex size, and stake locking type.
Cross-references TrakMotive NI-86032 and NCV39089 for the same application. See all 2.
Overview
The TrakMotive NI-86032 is an AAR CV axle shaft built for specific front right applications with OE-style fitment details. It is engineered with a conventional outboard joint, spline connections, and an included axle nut for a direct replacement approach.
Compatible With Nissan Pathfinder and INFINITI QX60 applications, this CV axle shaft is specified for non-ABS use unless otherwise noted. The NI-86032 also carries TrakMotive part number NI-86032 for easy identification during ordering and service lookup.
Key Features
- AAR CV axle shaft for driveline service
- Front right fitment for listed applications
- Conventional outboard joint with spline connection style
- Long-male inboard joint design with 30 inboard splines and 32 outboard splines
- Includes axle nut with M24x1.5 thread, 32 mm hex size, and stake locking type
- Built for non-ABS applications unless otherwise noted
Detailed Description
The TrakMotive AAR CV Axle Shaft, part number NI-86032, is specified for 2022-2024 Nissan Pathfinder front right applications and 2022 INFINITI QX60 front right applications. Its OE AAR design follows the listed fitment requirements and uses spline-based shaft connections with a conventional outboard joint for driveline replacement service. The axle measures 42.25 inches compressed and 44.38 inches extended, with a hex-head axle nut included for installation reference. TrakMotive identifies this axle as suitable for non-ABS applications unless otherwise noted, making it a focused replacement for the listed Pathfinder and QX60 configurations.
This part cross-references NCV39089 for the same application.
What It Is Used For
- Replacing a worn or damaged CV axle shaft
- Restoring driveline operation after spline or joint wear
- Addressing vibration or clicking caused by axle wear
- Servicing listed front right axle applications with OE AAR design
Installation Notes and Quality
Verify axle length, spline count, and axle nut specifications before installation. Confirm the vehicle uses a non-ABS application unless otherwise noted in the service information. The included axle nut uses an M24x1.5 thread, 32 mm hex size, and stake locking type.
TrakMotive states a limited lifetime warranty for this part. The company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Nissan | Pathfinder | FWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2023 | Nissan | Pathfinder | FWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | INFINITI | QX60 | FWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Nissan | Pathfinder | FWD | Front Right | OE AAR design; AAR CV Axle Shaft |
