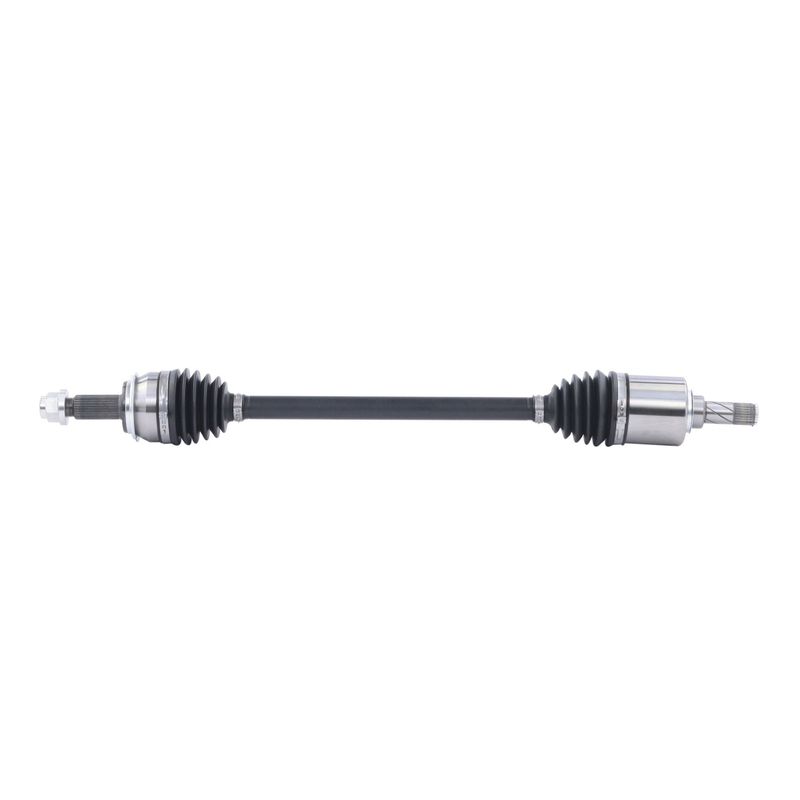

TrakMotive NI-86035 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-86035 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.19 |
| Axle Nut Height (mm) | 30 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.375 |
| Overall Compressed Length (mm) | 822 |
| Overall Extended Length (In) | 34.38 |
| Overall Extended Length (mm) | 874 |
| Product line | AAR CV Axle Shaft |
| Fits | Nissan · 2 vehicles |
OE-style replacement. AAR CV axle shaft built for direct driveline service.
Spline connection design. 26-spline inboard and 29-spline outboard engagement.
Quality certified. Manufactured under ISO 9001:2008 and TS 16949:2009 systems.
Cross-references TrakMotive NI-86035 for the same application. See all 1.
Product Overview
The TrakMotive NI-86035 is an AAR CV axle shaft built for direct replacement service on select Nissan applications. It is specified for the front left position and uses a conventional outboard joint with spline connections for a precise driveline interface.
Compatible with 2023-2024 Nissan ARIYA, front left. The NI-86035 includes an axle nut and is configured with a 32 mm hex size, M24x1.5 thread, and stake locking type for proper retention.
Key Features
- AAR CV axle shaft for OE-style driveline replacement
- Front left fitment for select Nissan ARIYA applications
- 26-spline inboard and 29-spline outboard shaft connections
- Conventional outboard joint design with spline engagement
- ABS tone ring not included; specified for non-ABS applications unless otherwise noted
- Axle nut included with hex head, stake lock, and M24x1.5 thread
Detailed Description
TrakMotive NI-86035 is a CV axle shaft engineered around the AAR design used in select Nissan driveline applications. The shaft measures 32.375 inches compressed and 34.38 inches extended, with male inboard joint construction and spline connections at both ends for secure engagement. This part cross-references TrakMotive NI-86035 for the same application.
Fits 2023-2024 Nissan ARIYA, front left. The axle is supplied without an ABS tone ring and is listed with zero ABS ring tooth count, making it appropriate for non-ABS configurations unless the application notes state otherwise. The included axle nut is sized for the specified hub interface and uses a stake-style locking method.
Common Replacement Uses
- Restores driveline transfer when a CV axle is worn or damaged
- Addresses clicking or binding during turns caused by joint wear
- Replaces a shaft with damaged splines or compromised joint engagement
- Corrects vibration or noise related to axle shaft wear
Installation Notes and Tips
Verify front left application, spline count, and axle nut specifications before installation. Confirm ABS requirements against the vehicle build, since this axle is listed without an ABS tone ring. Use the specified stake-style axle nut and torque procedures for the vehicle platform.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as part of a Limited Lifetime Warranty program and states that its manufacturing system is certified to ISO 9001:2008 and TS 16949:2009 standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Nissan | ARIYA | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Nissan | ARIYA | Front Left | OE AAR design; AAR CV Axle Shaft |
