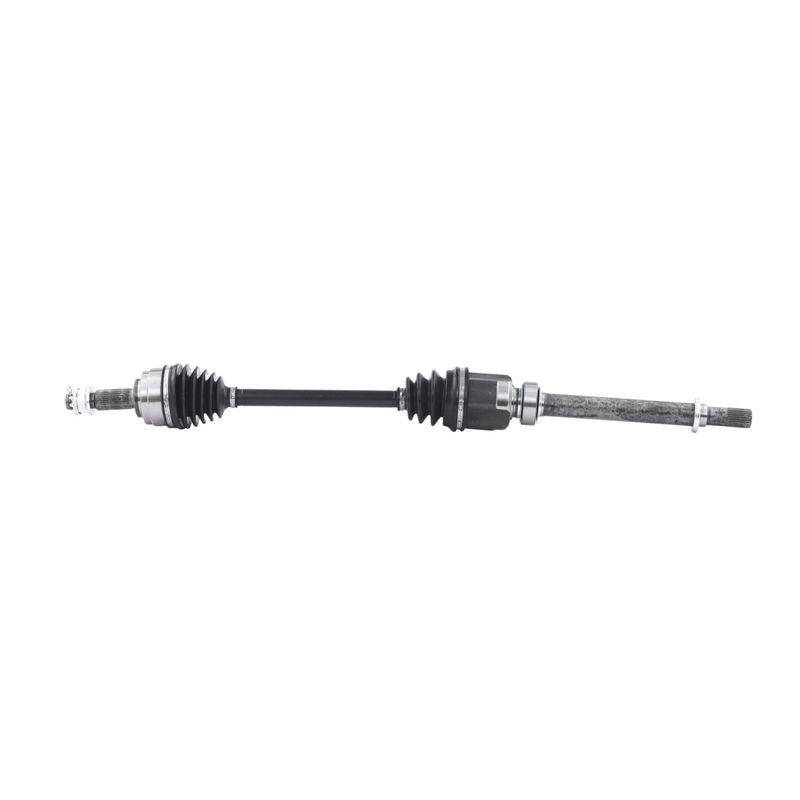

TrakMotive NI-86038 CV Axle Shaft - Front Right

Brand	TrakMotive NI-86038
Position	Front Right
ABS Tone Ring Included	No
ABS Tone Ring Tooth Quantity	0
Axle Nut Head Type	Hex
Axle Nut Height (in)	0.94
Axle Nut Height (mm)	24
Axle Nut Hex Size (in)	1.25
Axle Nut Hex Size (mm)	32
Axle Nut Included	Yes
Axle Nut Length (in)	1.44
Axle Nut Length (mm)	37
Axle Nut Locking Type	Standard
Axle Nut Socket Size	37
Axle Nut Thread Size	M24x1.5
Grade Type	Premium
Inboard Joint Boot Material	Neoprene
Inboard Joint Type	Long-male
Inboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number Of Outboard Splines	29
Outboard Joint Boot Material	Neoprene
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Conventional
Overall Compressed Length (in)	37.25
Overall Compressed Length (mm)	946
Overall Extended Length (in)	39.13
Overall Extended Length (mm)	994
Product line	CV Axle Shaft
Fits	Nissan · 6 vehicles

OE-style replacement. Built as a premium CV axle shaft for standard-duty driveline service.

Service-ready design. Includes an axle nut with M24x1.5 thread and 32 mm hex size.

Certified manufacturing. Produced under ISO 9001:2008 and TS 16949:2009 quality systems.

Cross-references TrakMotive NI-86038 for the same application. See all 1.

$114.59Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

CV Axle Shaft for NV200

TrakMotive NI-86038 is a premium CV axle shaft for the front right position on compatible Nissan NV200 applications. It is built for standard-duty replacement use and includes an axle nut for service-ready installation.

Key Features

Fits 2014-2019 Nissan NV200, front right.
Premium-grade CV axle shaft with neoprene boot materials.
Long-male inboard joint with spline connection and 27 inboard splines.
Conventional outboard joint design with 29 outboard splines.
ABS tone ring not included for non-ABS applications unless otherwise noted.
Axle nut included with M24x1.5 thread size and 32 mm hex.

Detailed Description

This TrakMotive CV axle shaft, part number NI-86038, is engineered for the front right side of the Nissan NV200 from 2014 through 2019. The shaft measures 37.25 inches compressed and 39.13 inches extended, with neoprene boot material at both joints for drivetrain service in standard-duty applications. The inboard side uses a long-male spline connection, while the outboard side uses a conventional joint design. NI-86038 is a direct replacement option for NV200 driveline service where the original axle matches these specifications.

TrakMotive identifies this axle as a premium-grade component and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing. The part number NI-86038 should be matched to the vehicle's axle configuration before installation, especially on non-ABS applications.

Common Issues This Part May Address

Clicking or popping from a worn CV joint during turns.
Vibration caused by a damaged or unbalanced axle shaft.
Torn axle boots that allow grease loss and contamination.
Driveline noise from spline or joint wear.

Installation Notes and Tips

Verify the vehicle's front right axle configuration, spline count, and overall length before installation. Confirm non-ABS application details, since this axle does not include an ABS tone ring. Use the included axle nut and match the M24x1.5 thread specification during service.

Quality Assurance

TrakMotive backs this axle shaft with a limited lifetime warranty. Manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification standards.

This part fits 6 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Position	Notes
2019	Nissan	NV200	Taxi	Front Right	Standard Duty Replacement; CV Axle Shaft
2018	Nissan	NV200	Taxi	Front Right	Standard Duty Replacement; CV Axle Shaft
2017	Nissan	NV200	Taxi	Front Right	Standard Duty Replacement; CV Axle Shaft
2016	Nissan	NV200	Taxi	Front Right	Standard Duty Replacement; CV Axle Shaft
2015	Nissan	NV200	Taxi	Front Right	Standard Duty Replacement; CV Axle Shaft
2014	Nissan	NV200	Taxi	Front Right	Standard Duty Replacement; CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 1 part number

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

TrakMotive — NI-86038
