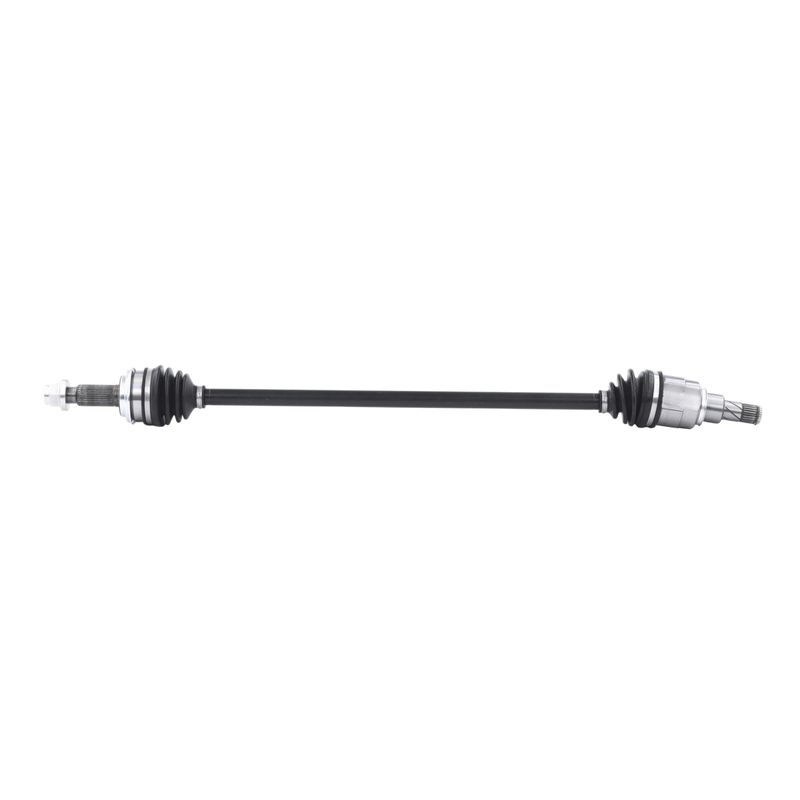

TrakMotive NI-86039 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-86039 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.19 |
| Axle Nut Height (mm) | 30 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.69 |
| Overall Compressed Length (mm) | 957 |
| Overall Extended Length (in) | 39.38 |
| Overall Extended Length (mm) | 1000 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 4 vehicles |
Premium-grade build. Engineered as a CV axle shaft for driveline replacement service.
Neoprene boot material. Helps protect the joints with durable inboard and outboard boot construction.
Axle nut included. Uses M24x1.5 threads, a 32 mm hex, and stake locking design.
Cross-references TrakMotive NI-86039 for the same application. See all 1.
Overview
TrakMotive NI-86039 is a premium CV axle shaft built for specific Nissan Kicks front right applications. It uses neoprene boots, a 25-spline inboard connection, and a conventional 29-spline outboard setup for a direct driveline replacement.
Key Features
- Premium-grade CV axle shaft for driveline service
- Neoprene inboard and outboard boot material for added durability
- Includes axle nut with M24x1.5 thread, 32 mm hex size, and stake locking type
- No ABS tone ring included
- Overall compressed length: 37.69 in; overall extended length: 39.38 in
Detailed Description
This TrakMotive CV axle shaft, part number NI-86039, is engineered for 2021-2024 Nissan Kicks front right fitment. It is listed for 2021-2022 Nissan Kicks, front right, standard duty replacement, and 2023-2024 Nissan Kicks, front right, with 5 lug wheel. The axle uses a male inboard joint with spline connection, a conventional outboard joint, and premium construction for driveline service. NI-86039 is a direct-fit replacement for the specified Nissan Kicks applications and is identified by TrakMotive part number NI-86039.
Common Uses
- Restoring power transfer through a worn CV axle
- Addressing clicking or popping during turns
- Replacing a damaged axle boot or joint assembly
- Correcting vibration caused by axle wear
Installation Notes
Verify the vehicle’s year, wheel configuration, and front right application before installation. This axle includes an axle nut and uses a 32 mm socket size with M24x1.5 thread. ABS tone ring is not included, so confirm the vehicle is a non-ABS application or otherwise matches the listed fitment notes.
Quality Assurance
TrakMotive lists this axle shaft as a premium-grade component and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Nissan | Kicks | SV | Front Right | With 5 Lug Wheel; CV Axle Shaft |
| 2023 | Nissan | Kicks | SV | Front Right | With 5 Lug Wheel; CV Axle Shaft |
| 2022 | Nissan | Kicks | SV | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Nissan | Kicks | SV | Front Right | Standard Duty Replacement; CV Axle Shaft |
