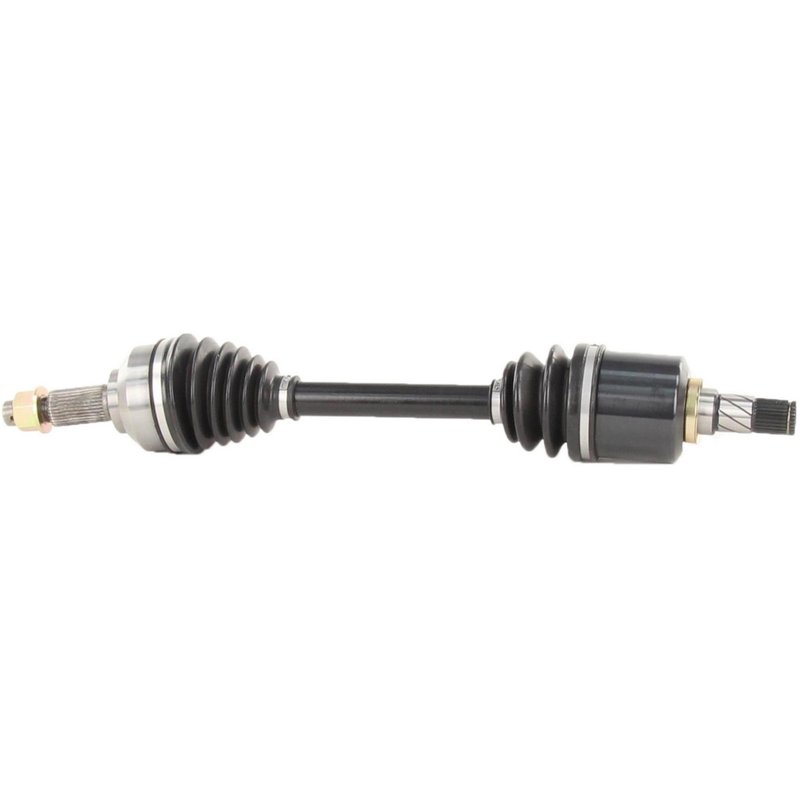

TrakMotive NI-8604 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8604 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.93 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.35 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.83 |
| Overall Compressed Length (mm) | 656 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 12 vehicles |
New CV axle shaft. Fresh replacement part for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Cotter-pin locking type simplifies installation.
Cross-references TrakMotive NI-8604 for the same application. See all 1.
CV Axle Shaft for Nissan Front Left Applications
TrakMotive NI-8604 is a new CV axle shaft for front left driveline service on select Nissan Maxima and Nissan Altima models. It is built with a neoprene boot, spline-style shaft connections, and the correct axle nut hardware for the listed applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8604
- New replacement axle shaft for front left use
- Neoprene boot material for CV joint protection
- Inboard joint type: male
- Inboard shaft connection style: spline
- Outboard joint type: conventional
- Outboard shaft connection style: spline
- Axle nut included with cotter pin locking type
- Axle nut thread size: M24 x 1.5
- Overall compressed length: 25.83 in. (656 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is engineered for front left driveline replacement on 2015-2017 Nissan Altima, 2016-2017 Nissan Maxima, 2018 Nissan Altima, and 2018-2023 Nissan Maxima applications. The NI-8604 uses a 29-spline inboard connection and a 32-spline outboard connection, with a hex-style axle nut included for installation on the listed vehicles. TrakMotive identifies this part as a standard duty replacement for some applications and an updated design for others, making it a direct-fit service part for the specified Nissan Maxima and Nissan Altima fitments.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for vehicle-specific fitment. NI-8604 follows that product line approach with application-matched dimensions, joint styles, and hardware details for the front left position.
This part cross-references TrakMotive NI-8604 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn outer CV joint during turns
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- Clunking caused by excessive driveline play
- Loss of smooth power transfer to the front left wheel
Installation Notes
Verify front left fitment against the vehicle’s year, model, and drivetrain configuration before installation. Confirm axle nut thread size, spline count, and overall compressed length match the original part. The included axle nut uses a cotter pin locking type, and the ABS tone ring is not included. Because ABS axles can fit non-ABS applications unless otherwise noted, compare the original axle’s ABS setup before ordering.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for this CV axle shaft.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Nissan | Maxima | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Nissan | Maxima | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Nissan | Maxima | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Nissan | Maxima | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Nissan | Maxima | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Nissan | Altima | — | 3.5L | V6 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Nissan | Maxima | — | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Nissan | Altima | — | 3.5L | V6 | Front Left | Updated Design; CV Axle Shaft |
| 2017 | Nissan | Maxima | — | — | — | Front Left | Updated Design; CV Axle Shaft |
| 2016 | Nissan | Altima | Automatic | 3.5L | V6 | Front Left | Updated Design; CV Axle Shaft |
| 2016 | Nissan | Maxima | Automatic | — | — | Front Left | Updated Design; CV Axle Shaft |
| 2015 | Nissan | Altima | Automatic | 3.5L | V6 | Front Left | Updated Design; CV Axle Shaft |
