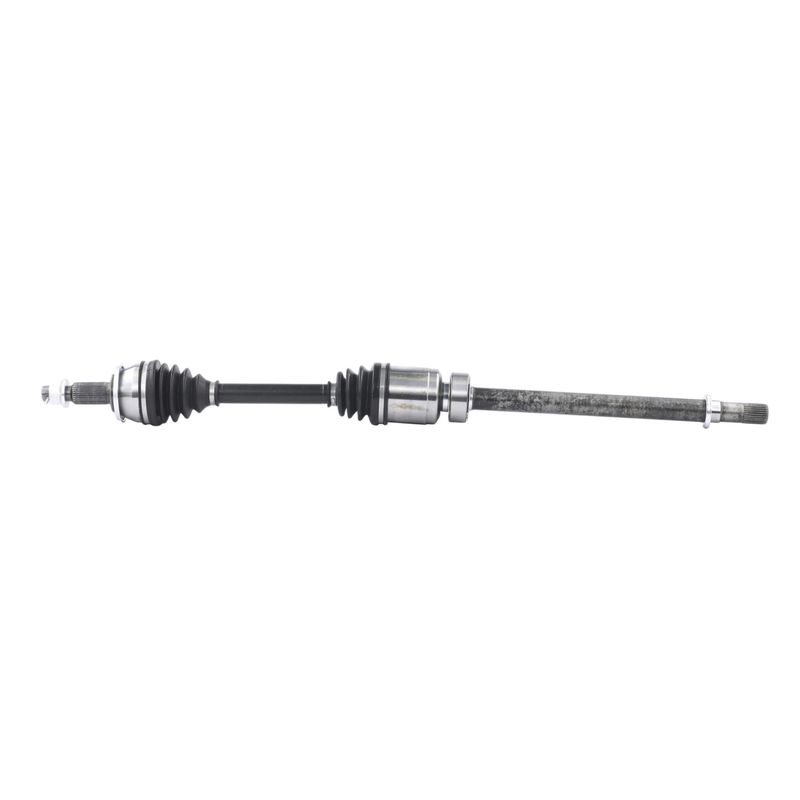

TrakMotive NI-86040 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-86040 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 39.81 |
| Overall Compressed Length (mm) | 1012 |
| Overall Extended Length (in) | 42.19 |
| Overall Extended Length (mm) | 1072 |
| Product line | AAR CV Axle Shaft |
| Fits | Nissan · 2 vehicles |
OE AAR design. Built for the specified driveline application with premium-grade construction.
Neoprene boot material. Helps protect the joints from contamination during service.
Axle nut included. Standard M24x1.5 hardware is listed for replacement work.
Cross-references TrakMotive NI-86040 for the same application. See all 1.
Overview
The TrakMotive NI-86040 is a CV axle shaft for select Nissan Maxima applications with OE AAR design. It is built for non-ABS use unless otherwise noted and includes a standard axle nut for service replacement work.
Fits 2021-2022 Nissan Maxima, front right. This part number is NI-86040.
Key Features
- Premium-grade CV axle shaft for driveline service
- Neoprene boots on both joints for added protection
- 29 inboard splines and 32 outboard splines
- Hex axle nut included with M24x1.5 thread size
- OE AAR design for the specified application
Detailed Description
TrakMotive NI-86040 is an AAR CV axle shaft engineered for the Nissan Maxima platform listed in the fitment data. The shaft uses a long-male inboard joint with spline connection, a conventional outboard joint, and premium construction details that match the service requirements of the application. The overall compressed length is 39.81 inches, and the extended length is 42.19 inches.
The axle is configured without an ABS tone ring and is intended for non-ABS applications unless otherwise noted. Neoprene boot material helps protect the joints, while the included axle nut simplifies replacement of worn driveline components. If you are sourcing a Nissan Maxima CV axle shaft, NI-86040 provides the specified OE AAR design and fitment for the front right position.
This part cross-references TrakMotive NI-86040 for the same application.
Common Uses
- Restoring driveline operation after CV joint wear
- Replacing a noisy or clicking axle assembly
- Addressing vibration during acceleration
- Correcting torn boot-related contamination issues
- Servicing a damaged axle shaft on the Nissan Maxima
Installation Notes
Verify the vehicle is equipped for a non-ABS axle before ordering. Confirm spline count, axle nut thread size, and compressed length against the removed part before installation. Use the listed fitment only: Fits 2021-2022 Nissan Maxima, front right.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a premium-grade replacement and states a limited lifetime warranty. The company also notes ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Nissan | Maxima | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Nissan | Maxima | Front Right | OE AAR design; AAR CV Axle Shaft |
