TrakMotivePart #: NI-86041

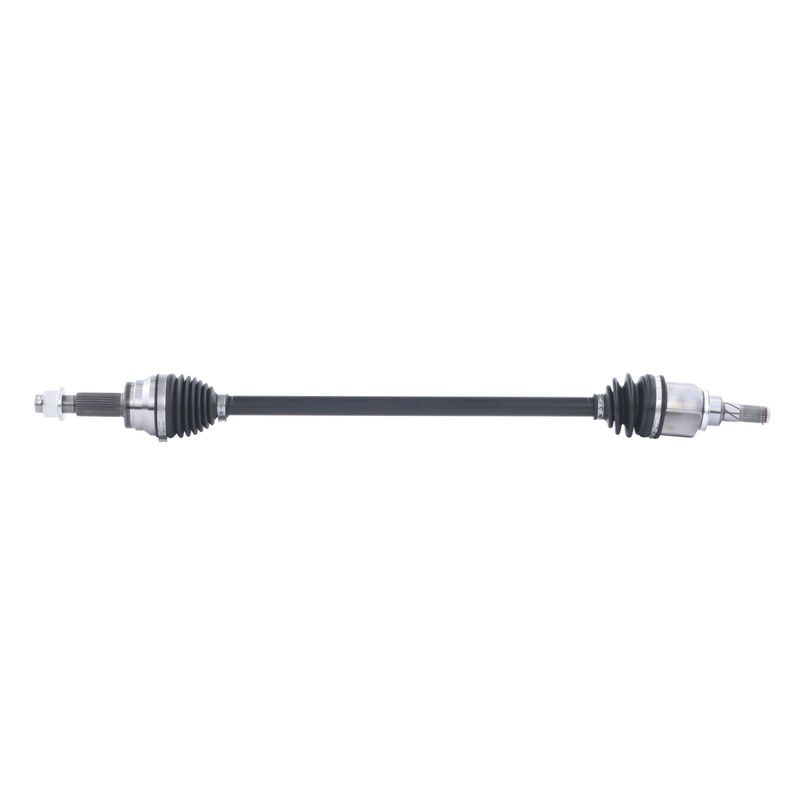

TrakMotive NI-86041 CV Axle Shaft - Rear
5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$122.96Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear
Fitment: INFINITI and Nissan, Pathfinder and QX60
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive NI-86041 CV Axle Shaft - Rear
| Brand | TrakMotive |
|---|---|
| Part Number | NI-86041 |
| Position | CV Axle Shaft, Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 21 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 35 |
| Overall Compressed Length (mm) | 889 |
| Overall Extended Length (in) | 36.44 |
| Overall Extended Length (mm) | 926 |
| Overall Extended Length(In) | 36.44 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Nissan | Pathfinder | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2023 | INFINITI | QX60 | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Nissan | Pathfinder | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2022 | INFINITI | QX60 | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Nissan | Pathfinder | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
NCV39091NI-86041
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
