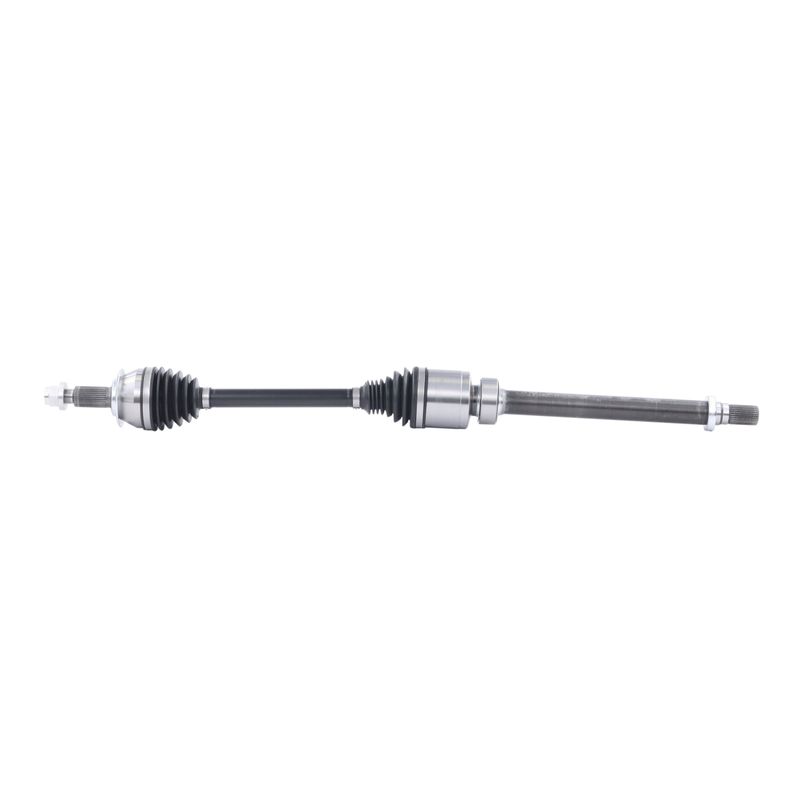

TrakMotive NI-86043 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive NI-86043 CV Axle Shaft - Front Right

Brand TrakMotive NI-86043
Position Front Right
ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 1.19
Axle Nut Height (mm) 30
Axle Nut Hex Size (in) 1.25
Axle Nut Hex Size (mm) 32
Axle Nut Included Yes
Axle Nut Length (in) 1.44
Axle Nut Length (mm) 37
Axle Nut Locking Type Stake
Axle Nut Thread Size M24x1.5
Inboard Joint Type Long-male
Inboard Shaft Connection Style Spline
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 30
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 32
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 41.5
Overall Compressed Length (mm) 1054
Overall Extended Length (In) 43.625
Overall Extended Length (mm) 1108
Product line AAR CV Axle Shaft
Fits INFINITI and Nissan · 3 vehicles

OE AAR design. Built for direct application matching in select driveline setups.

Axle nut included. M24x1.5 thread with a 32 mm hex and stake-style locking.

Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.

Cross-references TrakMotive NI-86043 for the same application. See all 1.

$193.89Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $193.89
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Compatible With OE AAR Applications

The TrakMotive AAR CV Axle Shaft, part number NI-86043, is built for specific front right driveline applications that require an OE AAR design. It is listed for the 2024-2025 INFINITI QX60 and the 2025 Nissan Murano, with fitment focused on non-ABS use unless otherwise noted.

  • Fits 2024-2025 INFINITI QX60, front right.
  • Fits 2025 Nissan Murano, front right.
  • OE AAR design for direct application matching.

Key Features

  • Part number NI-86043 for accurate ordering and catalog matching.
  • Includes an axle nut with M24x1.5 thread size and 32 mm hex.
  • Long-male inboard joint with spline connection for proper driveline engagement.
  • Conventional outboard joint design with spline connection.
  • Built without an ABS tone ring; ABS ring tooth count is 0.
  • Overall compressed length is 41.5 in, with extended length of 43.625 in.

Product Details

This TrakMotive CV axle shaft is part of the AAR CV Axle Shaft line and is identified by part number NI-86043. The design details include 30 inboard splines, 32 outboard splines, a hex axle nut, and a stake-style locking nut. For buyers searching for a front right CV axle shaft for INFINITI QX60 or Nissan Murano applications, this listing provides the fitment and construction data needed for selection.

This part cross-references TrakMotive NI-86043 for the same application.

Common Issues This Part May Address

  • Clicking or popping from a worn CV joint.
  • Vibration during acceleration from axle wear.
  • Grease leakage from a damaged axle assembly.
  • Driveline noise caused by spline or joint wear.

Installation Notes

Verify axle length, spline count, and axle nut specifications before installation. This axle is listed for front right applications and uses a stake-style axle nut with the included nut specified in the product data. Confirm non-ABS application details against the vehicle build information before ordering.

Quality Assurance

TrakMotive identifies this AAR CV axle shaft under part number NI-86043 and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2025INFINITIQX60FWD2.0LL4Front RightOE AAR design; AAR CV Axle Shaft
2025NissanMuranoFWD2.0LL4Front RightOE AAR design; AAR CV Axle Shaft
2024INFINITIQX60FWD——Front RightOE AAR design; AAR CV Axle Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — NI-86043
