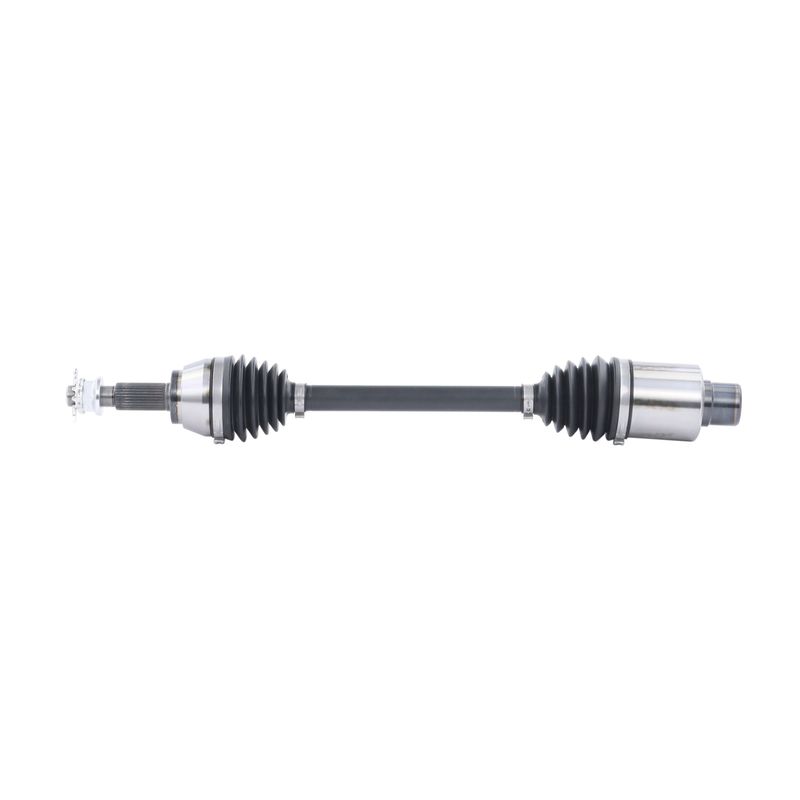

TrakMotive NI-86048 CV Axle Shaft - Rear Right
| Brand | TrakMotive NI-86048 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.56 |
| Overall Compressed Length (mm) | 674 |
| Overall Extended Length (in) | 28.75 |
| Overall Extended Length (mm) | 730 |
| Product line | AAR CV Axle Shaft |
| Fits | Nissan · 2 vehicles |
OE AAR design. Built for the listed driveline configuration and application-specific replacement.
Axle nut included. M24x1.5 thread, 32 mm hex size, and standard locking type.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive NI-86048 for the same application. See all 1.
Product Overview
The TrakMotive NI-86048 is an AAR CV axle shaft for the rear right position on select Nissan ARIYA applications. It is built for non-ABS use and follows the OE AAR design noted in the fitment data.
This axle shaft uses spline connections at both ends, a conventional outboard joint, and a female inboard joint. The included axle nut uses an M24x1.5 thread, a 32 mm hex size, and a standard locking type.
Key Features
- Fits 2023-2024 Nissan ARIYA, rear right.
- OE AAR design for the listed application.
- ABS tone ring not included; fits non-ABS applications unless otherwise noted.
- Female inboard joint with spline connection style.
- Conventional outboard joint with spline connection style.
- Axle nut included with M24x1.5 thread and 32 mm hex size.
Detailed Description
The TrakMotive NI-86048 CV axle shaft is specified for 2023-2024 Nissan ARIYA rear right applications and matches the OE AAR design called out in the fitment notes. The shaft measures 26.56 inches compressed and 28.75 inches extended, with 31-2T inboard splines and 29 outboard splines for the listed driveline configuration. NI-86048 is a direct reference for buyers looking for the correct rear axle shaft by part number.
TrakMotive’s AAR CV Axle Shaft line focuses on application-specific driveline replacement parts. NI-86048 is part of that line and is identified by the same part number across interchange listings, which helps simplify ordering and verification.
What It Is Used For
- Replacing a worn or damaged CV axle shaft.
- Restoring driveline connection at the rear right corner.
- Addressing clicking, vibration, or binding related to axle wear.
- Correcting spline or joint wear in the specified axle assembly.
- Replacing a shaft specified for non-ABS use.
Installation Notes and Tips
Verify the vehicle’s rear right application, OE AAR design note, and non-ABS requirement before installation. Confirm spline counts, compressed length, extended length, and axle nut thread size against the removed part. The included axle nut uses a 32 mm hex size and standard locking type.
Quality Assurance
TrakMotive lists this axle shaft under a Limited Lifetime Warranty and states that the company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Nissan | ARIYA | AWD | Rear Right | OE AAR design; AAR CV Axle Shaft |
| 2023 | Nissan | ARIYA | AWD | Rear Right | OE AAR design; AAR CV Axle Shaft |
