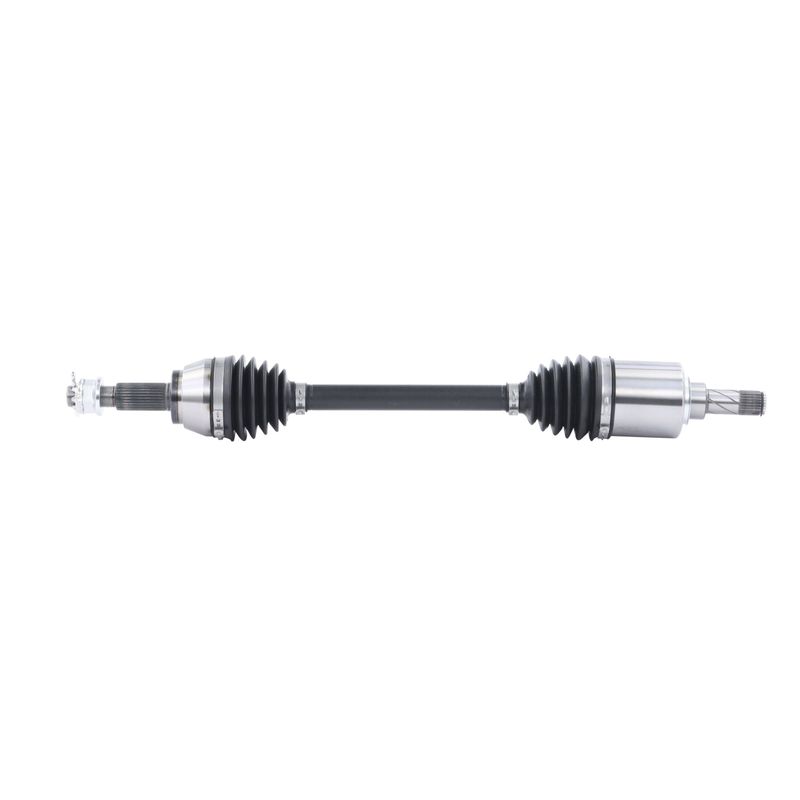

TrakMotive NI-86049 CV Axle Shaft - Rear Left
| Brand | TrakMotive NI-86049 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.81 |
| Overall Compressed Length (mm) | 706 |
| Overall Extended Length (In) | 30 |
| Overall Extended Length (mm) | 762 |
| Product line | AAR CV Axle Shaft |
| Fits | Nissan · 3 vehicles |
OE-style replacement. AAR CV axle shaft built for direct driveline service.
Precision spline fit. 26 inboard and 29 outboard splines for secure engagement.
Warranty included. Backed by a Limited Lifetime Warranty from TrakMotive.
Cross-references TrakMotive NI-86049 for the same application. See all 1.
Overview
The TrakMotive NI-86049 is an AAR CV axle shaft built for rear left applications on select Nissan ARIYA models. It is a direct driveline replacement for non-ABS use cases where the OE-style AAR configuration is required.
Fits 2023-2025 Nissan ARIYA, rear left. Part number NI-86049 is also listed as NI-86049 for reference.
Key Features
- AAR CV axle shaft for driveline service
- Male inboard joint with spline connection
- Conventional outboard joint design
- Includes axle nut with standard locking type
- ABS tone ring not included; 0-tooth ABS ring count
Detailed Description
This TrakMotive CV axle shaft is engineered with 26 inboard splines and 29 outboard splines, along with a 27.81-inch compressed length and 30-inch extended length. The NI-86049 uses a hex axle nut with M24x1.5 thread, 32 mm hex size, and 24 mm height, supporting a precise OE-style driveline service replacement. The NI-86049 is identified for 2023-2025 Nissan ARIYA rear left fitment and is specified for non-ABS applications unless otherwise noted.
This part cross-references TrakMotive NI-86049 for the same application.
What It Is Used For
- Replacing a worn or damaged CV axle shaft
- Restoring spline engagement in the driveline
- Addressing vibration or clicking caused by axle wear
- Servicing a non-ABS rear left axle application
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Confirm non-ABS application requirements and match the rear left position exactly to the vehicle specification. Use the included axle nut and follow factory torque procedures during assembly.
Quality Assurance
TrakMotive lists this axle shaft under its AAR CV Axle Shaft line and states a Limited Lifetime Warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Nissan | ARIYA | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2024 | Nissan | ARIYA | Rear Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Nissan | ARIYA | Rear Left | OE AAR design; AAR CV Axle Shaft |
