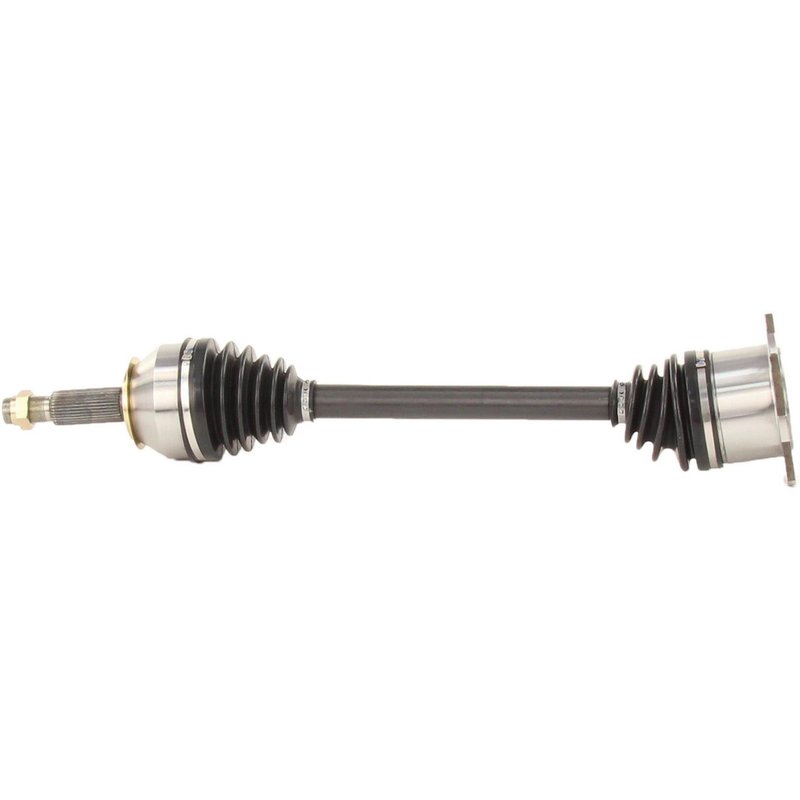

TrakMotive NI-8605 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive NI-8605 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.73 |
| Axle Nut Height (mm) | 18.5 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.59 |
| Axle Nut Length (mm) | 40.42 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Bolt-on |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 34 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.74 |
| Overall Compressed Length (mm) | 730 |
| Product line | CV Axle Shaft |
| Fits | Nissan and INFINITI · 25 vehicles |
New CV axle shaft. Bolt-on design with spline and flange connections for straightforward replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Self-locking hex nut is ready for installation.
Cross-references TrakMotive NI-8605 for the same application. See all 1.
Rear CV Axle Shaft for Nissan Armada and INFINITI QX80
TrakMotive NI-8605 is a new rear CV axle shaft built for select Nissan Armada and INFINITI QX80 applications. It is specified with a neoprene boot, a flange-style inboard joint, and a conventional outboard joint for direct driveline service on listed rear positions.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8605
- New axle shaft, not remanufactured
- Rear, rear right, and rear left fitment depending on vehicle application
- Neoprene boot material for driveline protection
- Inboard joint type: flange with bolt-on shaft connection
- Outboard joint type: conventional with spline shaft connection
- Includes axle nut with self-lock design
- Axle nut thread size: M27*1.5
- 34 outboard splines
- Overall compressed length: 28.74 in. (730 mm)
- ABS tone ring not included
Fitment Details
- Fits 2019-2023 Nissan Armada, rear; standard duty replacement; CV axle shaft.
- Fits 2017-2018 Nissan Armada, rear right; CV axle shaft.
- Fits 2017-2018 Nissan Armada, rear left; CV axle shaft.
- Fits 2019 INFINITI QX80, rear; thru 12/31/18; CV axle shaft.
- Fits 2018 INFINITI QX80, rear; standard duty replacement; CV axle shaft.
- Fits 2014-2017 INFINITI QX80, rear right; CV axle shaft.
- Fits 2014-2017 INFINITI QX80, rear left; CV axle shaft.
- Fits 2011-2013 INFINITI QX56, rear right; CV axle shaft.
- Fits 2011-2013 INFINITI QX56, rear left; CV axle shaft.
What This Axle Shaft Helps Address
- Clicking or popping noises from a worn rear CV joint
- Vibration during acceleration from driveline wear
- Grease leakage caused by a damaged axle boot
- Excess play in the rear axle assembly
- Loss of smooth power transfer to the rear wheels
Installation Notes and Tips
Confirm rear position, side, spline count, and axle length before installation. This part uses a bolt-on inboard connection and includes an axle nut with a 35 mm hex size, so verify fastener access and thread match during service. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
This part cross-references TrakMotive NI-8605 for the same application.
Quality Assurance
TrakMotive identifies this axle shaft as a new component and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification for its quality management system.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Nissan | Armada | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Nissan | Armada | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Nissan | Armada | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Nissan | Armada | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2019 | INFINITI | QX80 | Rear | Thru 12/31/18; CV Axle Shaft |
| 2019 | Nissan | Armada | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2018 | INFINITI | QX80 | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Nissan | Armada | Rear Right | CV Axle Shaft |
| 2018 | Nissan | Armada | Rear Left | CV Axle Shaft |
| 2017 | INFINITI | QX80 | Rear Right | CV Axle Shaft |
| 2017 | INFINITI | QX80 | Rear Left | CV Axle Shaft |
| 2017 | Nissan | Armada | Rear Right | CV Axle Shaft |
| 2017 | Nissan | Armada | Rear Left | CV Axle Shaft |
| 2016 | INFINITI | QX80 | Rear Right | CV Axle Shaft |
| 2016 | INFINITI | QX80 | Rear Left | CV Axle Shaft |
| 2015 | INFINITI | QX80 | Rear Right | CV Axle Shaft |
| 2015 | INFINITI | QX80 | Rear Left | CV Axle Shaft |
| 2014 | INFINITI | QX80 | Rear Right | CV Axle Shaft |
| 2014 | INFINITI | QX80 | Rear Left | CV Axle Shaft |
| 2013 | INFINITI | QX56 | Rear Right | CV Axle Shaft |
| 2013 | INFINITI | QX56 | Rear Left | CV Axle Shaft |
| 2012 | INFINITI | QX56 | Rear Right | CV Axle Shaft |
| 2012 | INFINITI | QX56 | Rear Left | CV Axle Shaft |
| 2011 | INFINITI | QX56 | Rear Right | CV Axle Shaft |
| 2011 | INFINITI | QX56 | Rear Left | CV Axle Shaft |
