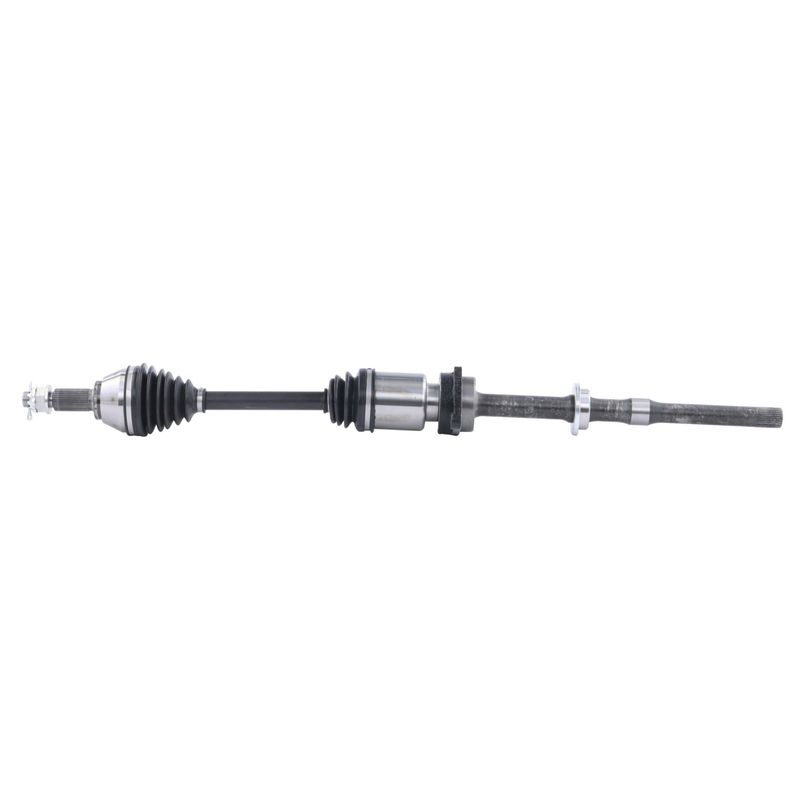

TrakMotive NI-86057 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-86057 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 41.75 |
| Overall Compressed Length (mm) | 1060 |
| Overall Extended Length (In) | 43.81 |
| Overall Extended Length (mm) | 1114 |
| Product line | AAR CV Axle Shaft |
| Fits | INFINITI · 1 vehicle |
OE design replacement. Built as a direct driveline service part for the specified application.
Axle nut included. Supplied with M24x1.5 thread, 32 mm hex size, and standard locking type.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive NI-86057 for the same application. See all 1.
Overview
TrakMotive NI-86057 is an AAR CV axle shaft for the front right position on the 2013 Infiniti JX35. It is built for non-ABS applications unless otherwise noted and includes the axle nut specified in the product data.
Key Features
- Fits 2013 Infiniti JX35, front right.
- AAR CV axle shaft construction for driveline replacement.
- Long-male inboard joint with spline connection.
- Conventional outboard joint with spline connection.
- ABS tone ring not included; 0-tooth ABS ring configuration.
- Axle nut included with M24x1.5 thread, 32 mm hex size, and standard locking type.
Product Details
This TrakMotive CV axle shaft, part number NI-86057, is specified for the 2013 Infiniti JX35 front right application. The shaft uses a 29-spline inboard connection and a 32-spline outboard connection, with an overall compressed length of 41.75 inches and an extended length of 43.81 inches. NI-86057 is listed as an OE design replacement and is intended for non-ABS applications unless otherwise noted.
This part cross-references TrakMotive NI-86057 for the same application.
Common Replacement Needs
- Clicking or popping during turns from a worn CV joint.
- Vibration or shudder caused by axle wear.
- Grease leakage from a damaged axle assembly.
- Excessive play in the driveline connection.
Installation Notes
Verify the front right fitment, spline count, and axle length before installation. Confirm non-ABS application details and match the axle nut thread size and hex size to the vehicle specification. Professional installation is recommended for proper driveline alignment and torque procedures.
Quality Assurance
TrakMotive lists this axle shaft with a limited lifetime warranty and states that the manufacturing facility is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2013 | INFINITI | JX35 | AWD | Front Right | OE Design; AAR CV Axle Shaft |
