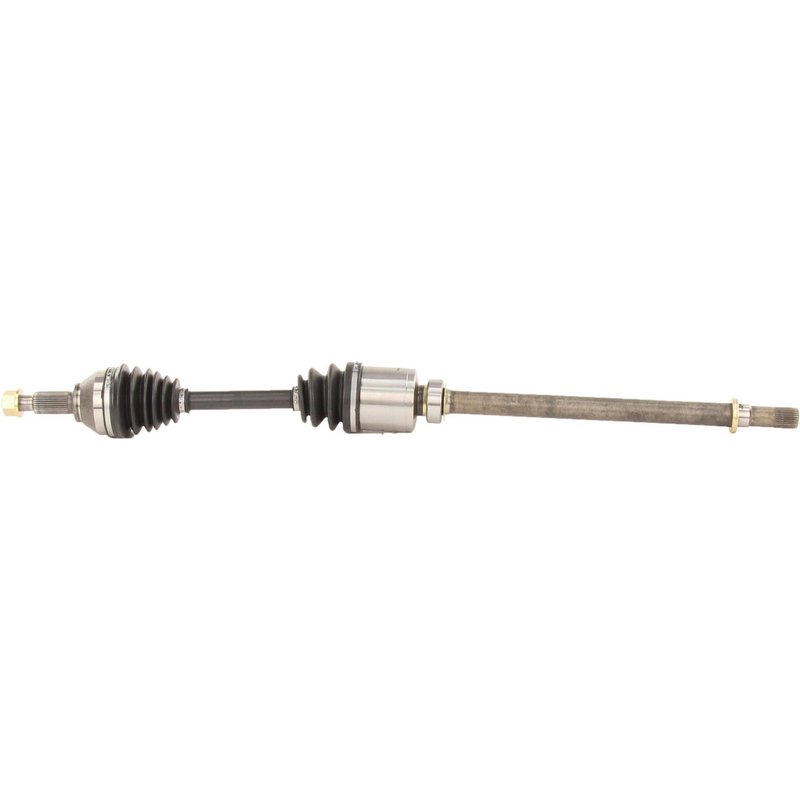

TrakMotive NI-8620 CV Axle Shaft - Front Right
Front Right CV Axle Shaft for 2016 Murano
The TrakMotive AAR CV Axle Shaft, part number NI-8620, is a new front right axle assembly for the 2016 Nissan Murano. It is built for direct replacement service with the correct spline counts, compressed length, and axle nut specifications for the listed application.
Key Features
- Fits 2016 Nissan Murano, front right
- TrakMotive AAR CV Axle Shaft line
- Part number NI-8620
- New construction with neoprene boot material
- Inboard joint type: male
- Inboard shaft connection style: spline
- Outboard joint type: conventional
- Outboard shaft connection style: spline
- 29 inboard splines and 32 outboard splines
- Overall compressed length: 41.54 in. (1055 mm)
- Axle nut included with hex head, cotter pin locking type, and M24 x 1.5 thread size
Product Details
The TrakMotive AAR CV Axle Shaft NI-8620 is engineered for the front right position on the 2016 Nissan Murano. This axle shaft uses a male inboard joint, a conventional outboard joint, and spline-style shaft connections to match the listed fitment. The included axle nut features a hex head, 1.25 in. hex size, and M24 x 1.5 thread specification. TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted, and the AAR CV Axle Shaft line is backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references TrakMotive NI-8620 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from a worn front right CV axle
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Excessive play or noise from worn CV joints
- Loss of driveline smoothness on the 2016 Nissan Murano
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Confirm whether the vehicle is equipped with ABS and compare the original axle configuration to the replacement part. Inspect related components such as wheel hub, seals, and suspension hardware during service to help prevent repeat repairs. Torque the axle nut to the vehicle manufacturer’s specification and secure it with the proper locking method.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft and supports the AAR CV Axle Shaft line with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification for its production standards.
| Brand | TrakMotive |
|---|---|
| Part Number | NI-8620 |
| Position | AAR CV Axle Shaft, Front Right |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.93 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 41.54 |
| Overall Compressed Length (mm) | 1055 |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Drive Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Nissan | Murano | FWD | ELECTRIC/GAS | Front Right | Updated Design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
