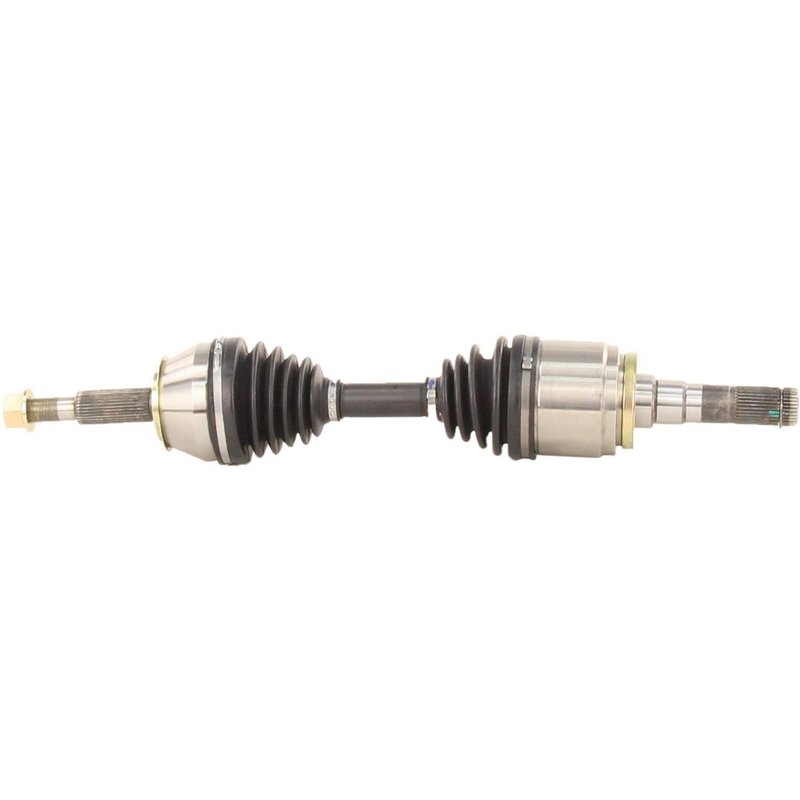

TrakMotive NI-8622 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive NI-8622 |
|---|---|
| Position | Front Left |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.93 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 33 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.76 |
| Overall Compressed Length (mm) | 705 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 12 vehicles |
New. Freshly built CV axle shaft for dependable replacement performance.
Neoprene boot. Helps resist wear while keeping the joint protected.
Spline connections. Provides a secure, precise fit at both ends.
Cross-references Cardone New 66-6434HD and TrakMotive NI-8622 for the same application. See all 2.
TrakMotive CV Axle Shaft for Nissan TITAN XD
TrakMotive NI-8622 is a new CV axle shaft for front applications on the Nissan TITAN XD. It is built with a neoprene boot, spline-style shaft connections, and includes the axle nut specified for the application.
Key Features
- Part number: NI-8622
- Brand line: CV Axle Shaft
- New replacement axle shaft for driveline and axle service
- Front, front left, and front right fitment coverage for listed Nissan TITAN XD applications
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard shaft connection: spline with 33 inboard splines
- Outboard shaft connection: spline with 32 outboard splines
- Neoprene boot material for the CV joint assembly
- Axle nut included; hex head, cotter pin locking type, M24 x 1.5 thread
- Overall compressed length: 27.76 in (705 mm)
Product Details
TrakMotive NI-8622 is a CV axle shaft for Nissan TITAN XD front driveline service. It is listed for 2016-2019 Nissan TITAN XD front right and front left, and for 2020-2023 Nissan TITAN XD front standard duty replacement applications. This part cross-references Cardone New 66-6434HD for the same application. The axle is manufactured as a new unit and comes from an ISO 9001:1007 and TS 16949:2009 certified company, with a limited lifetime warranty noted by the manufacturer.
What This Part Helps Address
- Clicking or popping from a worn front CV joint during turns
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive play in the front axle assembly
- Driveline noise related to worn spline or joint components
Installation Notes and Tips
Verify front axle position, spline count, and axle nut thread size before installation. Confirm the vehicle is a Nissan TITAN XD with the exact year and position listed for NI-8622. Replace the axle nut if the application requires service replacement and torque all fasteners to factory specifications. Because ABS axles can fit non-ABS applications unless otherwise noted, confirm the vehicle’s brake and hub configuration before ordering.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company and is backed by a limited lifetime warranty. NI-8622 is a new replacement part built for the listed Nissan TITAN XD front applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Nissan | TITAN XD | Front | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Nissan | TITAN XD | Front | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Nissan | TITAN XD | Front | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Nissan | TITAN XD | Front | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Nissan | TITAN XD | Front Right | CV Axle Shaft |
| 2019 | Nissan | TITAN XD | Front Left | CV Axle Shaft |
| 2018 | Nissan | TITAN XD | Front Right | CV Axle Shaft |
| 2018 | Nissan | TITAN XD | Front Left | CV Axle Shaft |
| 2017 | Nissan | TITAN XD | Front Right | CV Axle Shaft |
| 2017 | Nissan | TITAN XD | Front Left | CV Axle Shaft |
| 2016 | Nissan | TITAN XD | Front Right | CV Axle Shaft |
| 2016 | Nissan | TITAN XD | Front Left | CV Axle Shaft |
| No rows match your filter. | ||||
