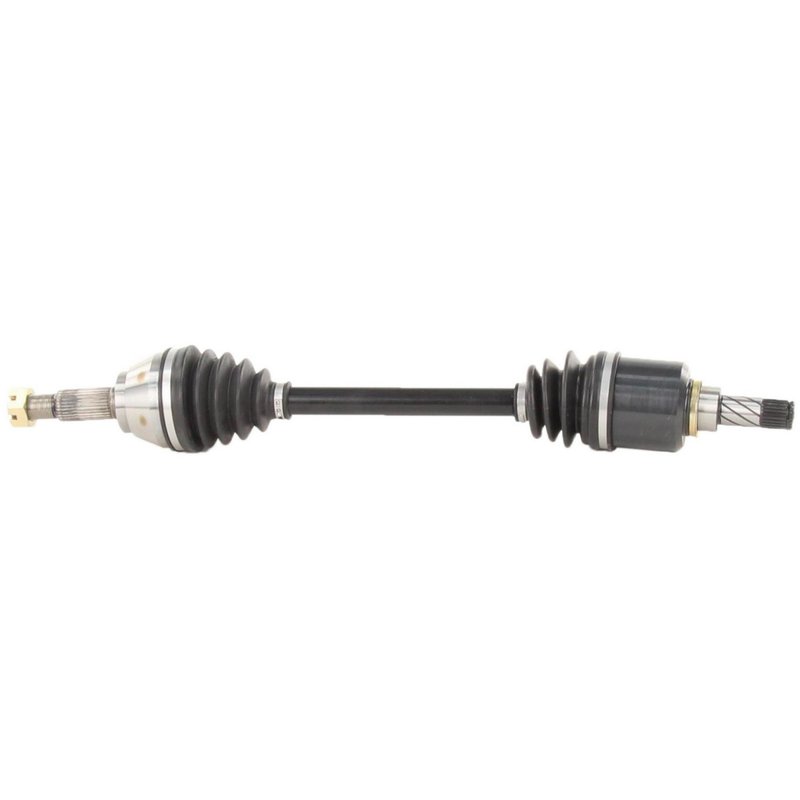

TrakMotive NI-8629 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8629 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.69 |
| Axle Nut Height (mm) | 17.5 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Length (mm) | 40.99 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.97 |
| Overall Compressed Length (mm) | 685 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 3 vehicles |
New CV axle shaft. Fresh replacement part with a neoprene boot for durable joint protection.
Axle nut included. Hex nut with cotter pin locking for a secure, ready-to-install setup.
Spline connections. 26 inboard and 29 outboard splines for precise drivetrain engagement.
Cross-references TrakMotive NI-8629 and 391013ZM0B for the same application. See all 2.
CV Axle Shaft for 2017-2019 Nissan Sentra
TrakMotive NI-8629 is a new CV axle shaft for the front left position on select 2017-2019 Nissan Sentra models. It is built with a neoprene boot, spline-style shaft connections, and includes the axle nut for a direct replacement service.
Key Features
- Fits 2017-2019 Nissan Sentra, front left
- New CV axle shaft for driveline repair
- Inboard joint type: male
- Inboard shaft connection style: spline with 26 inboard splines
- Outboard joint type: conventional with 29 outboard splines
- Neoprene boot material for axle boot durability
- Axle nut included with M24 x 1.5 thread size
- Hex axle nut head type with cotter pin locking
- Overall compressed length: 26.97 in. (685 mm)
- TrakMotive part number NI-8629
Product Details
This TrakMotive CV axle shaft is engineered for the front left side of the Nissan Sentra and matches the listed spline counts, joint styles, and compressed length for the application. The axle nut is included, and the unit uses a neoprene boot to help protect the joint area during normal driveline operation. TrakMotive NI-8629 is also referenced by OE number 391013ZM0B for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Clunking noise from driveline wear
- Axle shaft play or binding at the joint
Installation Notes
Verify front left fitment against the vehicle’s original axle dimensions, spline counts, and axle nut thread size before installation. Inspect the hub, seals, and surrounding suspension components during replacement, and confirm proper torque procedures for the axle nut and related fasteners. ABS tone ring is not included.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and backs it with a limited lifetime warranty. The company states its products are produced under ISO 9001:1007 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Nissan | Sentra | Manual | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2018 | Nissan | Sentra | Manual | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2017 | Nissan | Sentra | Manual | 1.6L | L4 | Front Left | CV Axle Shaft |
