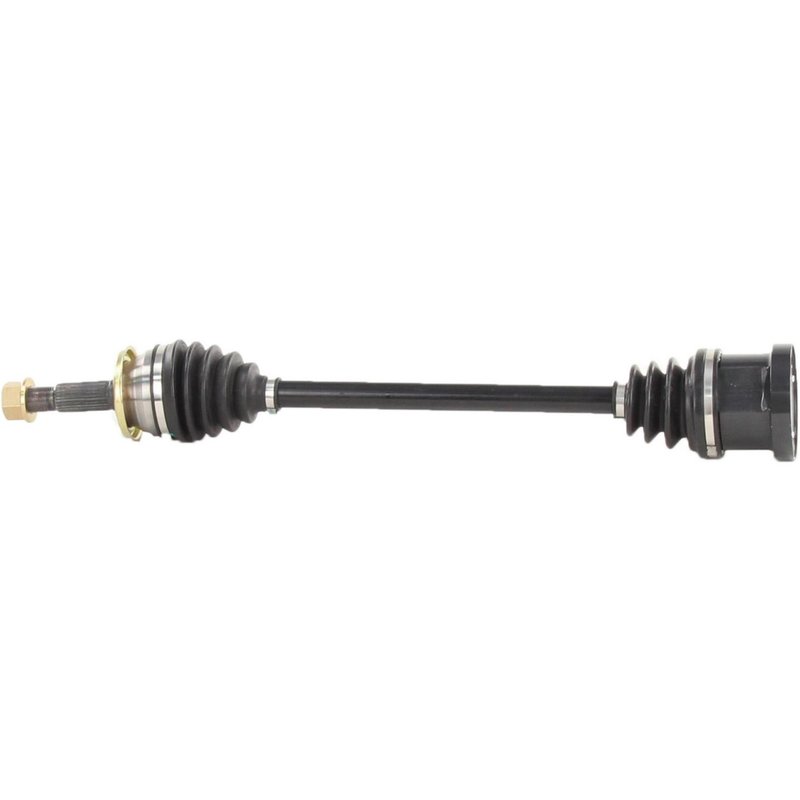

TrakMotive NI-8654 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8654

The TrakMotive CV Axle Shaft NI-8654 is designed specifically for INFINITI FX37 and QX70 models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with INFINITI FX37 and QX70
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced durability
• Inboard flange joint and conventional outboard joint
• Overall compressed length of 26.89 inches (683 mm)
• Axle nut hex size 1.25 inches (31.8 mm) and height 23.6 mm
• 27 outboard splines for secure connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The NI-8654 model is part of this line, featuring a flange-type inboard joint and a conventional outboard joint to maintain smooth power transfer and vehicle stability. This product line emphasizes compatibility and quality for CV components in driveline and axle systems.

Detailed Product Description

The NI-8654 CV Axle Shaft from TrakMotive is a new, direct replacement part designed to meet OEM specifications for INFINITI FX37 and QX70 vehicles. It features a neoprene boot that resists wear and environmental damage, helping to protect the internal joints. The inboard joint uses a flange connection style, while the outboard joint is conventional, ensuring proper articulation and power delivery. The included axle nut has a hex head type with a 1.25-inch (31.8 mm) hex size and a height of 23.6 mm, secured with a cotter pin locking mechanism for added safety. The axle nut thread size is M24*1.5, and the nut length measures 36.72 mm. The shaft has 27 outboard splines, providing a secure fit and reliable torque transfer. The overall compressed length of 26.89 inches (683 mm) ensures proper fitment within the vehicle's driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on INFINITI FX37 and QX70
• Resolves issues with axle vibration or clicking noises during turns
• Addresses grease leaks caused by torn or degraded CV boots
• Fixes driveline instability or uneven power delivery
• Prevents axle nut loosening with included cotter pin locking mechanism

Installation Notes and Tips

When installing the TrakMotive NI-8654 CV Axle Shaft, ensure the vehicle is securely lifted and supported. Remove the old axle shaft carefully, noting the orientation of the inboard flange and outboard conventional joints. Use the included axle nut and secure it with the cotter pin locking type to prevent loosening. Verify the neoprene boot is properly seated to avoid premature wear. Torque specifications should follow the vehicle manufacturer’s guidelines for the M24*1.5 axle nut thread size.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft NI-8654 is a new, high-quality replacement part manufactured to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and fitment accuracy for INFINITI FX37 and QX70 models. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase.
