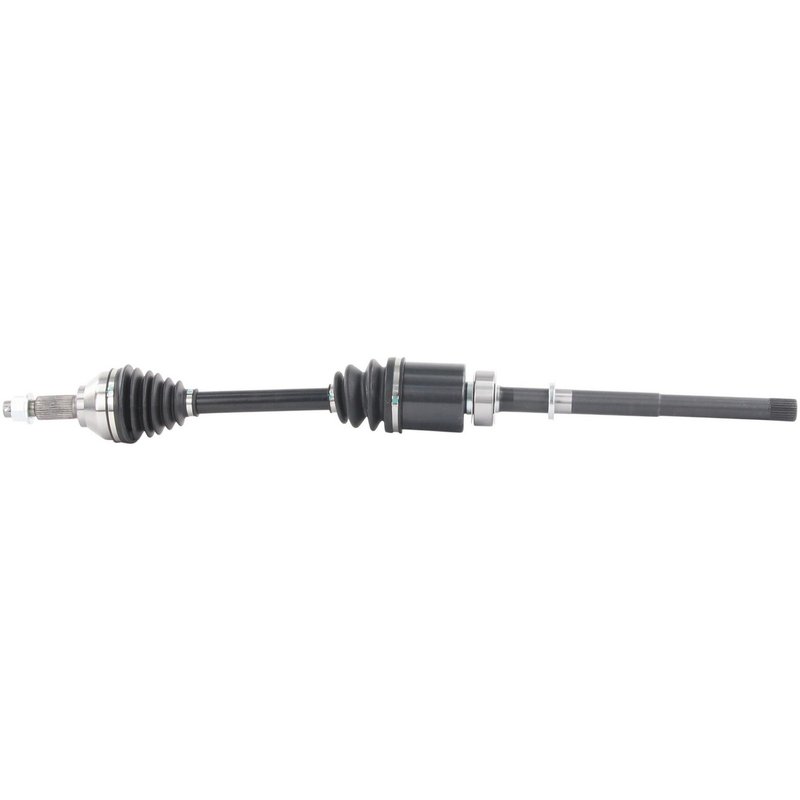

TrakMotive NI-8726 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive NI-8726 CV Axle Shaft - Front Right

Brand TrakMotive NI-8726
Position Front Right
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 0.93
Axle Nut Height (mm) 23.6
Axle Nut Hex Size (in) 1.25
Axle Nut Hex Size (mm) 31.8
Axle Nut Included Yse
Axle Nut Length (in) 1.45
Axle Nut Length (mm) 36.72
Axle Nut Locking Type Cotter Pin
Axle Nut Thread Size M24*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Inboard Splines 29
Number Of Outboard Splines 32
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 39.49
Overall Compressed Length (mm) 1003
Product line AAR CV Axle Shaft
Fits INFINITI · 7 vehicles

New replacement shaft. Built as a fresh CV axle shaft for straightforward service.

Neoprene boot material. Helps resist wear while keeping the joint protected.

Spline connection style. Provides a secure, precise fit at both ends.

Cross-references TrakMotive NI-8726 and 391005NA4A for the same application. See all 2.

$164.97Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $164.97
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

TrakMotive NI-8726 Front Right CV Axle Shaft

The TrakMotive NI-8726 AAR CV axle shaft is a new replacement axle for select Infiniti front-right applications. It is built with a neoprene boot, spline connections, and OE-style dimensions to support proper driveline operation on the 2019-2023 Infiniti QX50 and 2022-2023 Infiniti QX55.

Key Features

  • Part number: NI-8726
  • Brand line: AAR CV Axle Shaft
  • Front right CV axle shaft for select Infiniti applications
  • New construction with male inboard joint type
  • 29 inboard splines and 32 outboard splines
  • Neoprene boot material for driveline protection
  • Overall compressed length: 39.49 in. (1003 mm)
  • Axle nut included; hex head, M24 x 1.5 thread, cotter pin locking type
  • No ABS tone ring included

Product Details

TrakMotive’s AAR CV Axle Shaft line focuses on OE-style driveline replacement parts with application-specific dimensions and connection styles. NI-8726 is engineered for front-right use on the Infiniti QX50 and Infiniti QX55, including the 2019 Infiniti QX50 updated design with a 1003 mm compressed length. The axle uses spline connections at both ends, a conventional outboard joint type, and a neoprene boot to help maintain joint protection in daily driving conditions.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Clicking or popping during turns from a worn outer CV joint
  • Vibration or shudder from a damaged axle shaft
  • Grease leakage caused by a torn CV boot
  • Driveline noise from spline or joint wear
  • Loss of smooth power transfer to the front right wheel

Installation Notes and Fitment

Fits 2019 Infiniti QX50, front right; Fits 2020-2023 Infiniti QX50, front right; Fits 2022-2023 Infiniti QX55, front right. Confirm axle length, spline count, and axle nut specifications before installation. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive states this axle is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. The NI-8726 is a new CV axle shaft built for consistent fitment on select Infiniti QX50 and QX55 front-right applications.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2023INFINITIQX50AWDFront RightOE AAR design; AAR CV Axle Shaft
2023INFINITIQX55—Front RightOE AAR design; AAR CV Axle Shaft
2022INFINITIQX50AWDFront RightOE AAR design; AAR CV Axle Shaft
2022INFINITIQX55—Front RightOE AAR design; AAR CV Axle Shaft
2021INFINITIQX50AWDFront RightOE AAR design; AAR CV Axle Shaft
2020INFINITIQX50AWDFront RightOE AAR design; AAR CV Axle Shaft
2019INFINITIQX50—Front RightUpdated Design; 1003mm Compressed Length; AAR CV Axle Shaft
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — NI-8726391005NA4A
