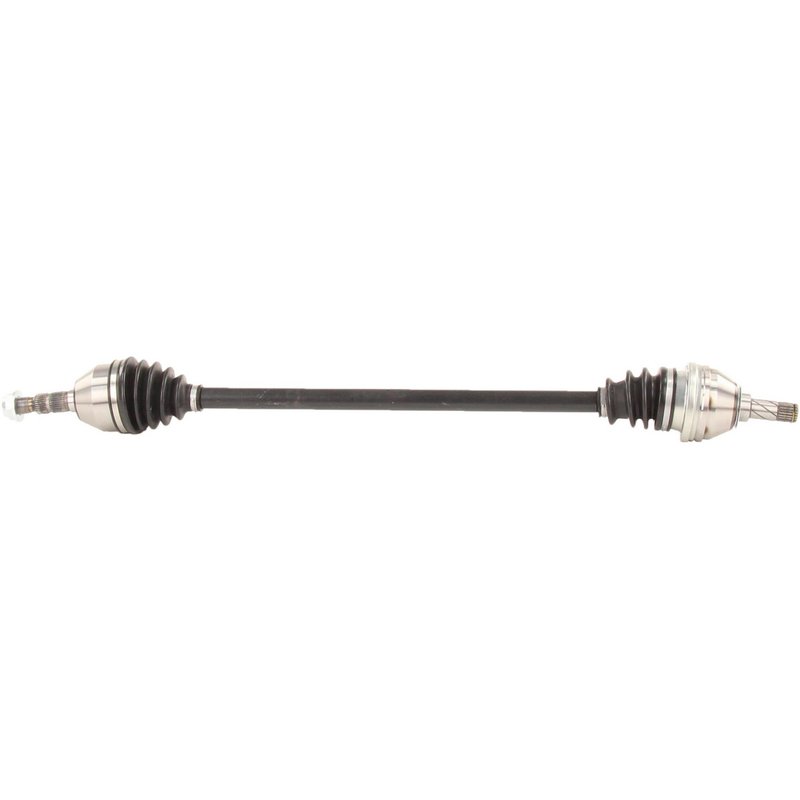

TrakMotive OP-8012 CV Axle Shaft - Front Right
| Brand | TrakMotive OP-8012 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.4 |
| Overall Compressed Length (mm) | 950 |
| Product line | CV Axle Shaft |
| Fits | Saturn · 2 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Durable boot material helps protect the joint from wear and contamination.
Axle nut included. Comes with a self-locking hex nut for easier installation.
Cross-references TrakMotive OP-8012 for the same application. See all 1.
CV Axle Shaft for Saturn Astra Front Right
TrakMotive OP-8012 is a new CV axle shaft for the front right position on select 2008-2009 Saturn Astra models. It is built for direct driveline replacement and includes the axle nut specified for the application.
Key Features
- Fits 2008-2009 Saturn Astra, front right
- New CV axle shaft for driveline service
- Male inboard shaft connection with 22 inboard splines
- Conventional outboard joint with spline connection and 33 outboard splines
- Neoprene boot material for CV joint protection
- Axle nut included with self-lock design, M22 x 1.5 thread
- No ABS tone ring included
- Overall compressed length: 37.4 in (950 mm)
Product Details
TrakMotive OP-8012 is a CV axle shaft engineered for the front right side of the Saturn Astra. The shaft uses a male inboard joint, a conventional outboard joint, and the specified spline counts to match the listed application. The included axle nut features a hex head, self-lock design, and M22 x 1.5 thread size for proper service replacement. TrakMotive positions this axle shaft within its CV Axle Shaft product line for driveline and axle repair work.
This part cross-references TrakMotive OP-8012 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn outer CV joint
- Vibration or shudder during acceleration from a damaged axle shaft
- Torn or deteriorated CV boot material that exposes the joint to contamination
- Excessive driveline play caused by worn splines or joint wear
- Front right axle failure on a 2008-2009 Saturn Astra
Installation Notes and Tips
Verify front right fitment before installation and confirm spline count, axle nut thread size, and overall compressed length against the removed part. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle shaft. Torque the included axle nut to the vehicle manufacturer’s specification during final assembly.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Saturn | Astra | Manual | Front Right | CV Axle Shaft |
| 2008 | Saturn | Astra | Manual | Front Right | CV Axle Shaft |
