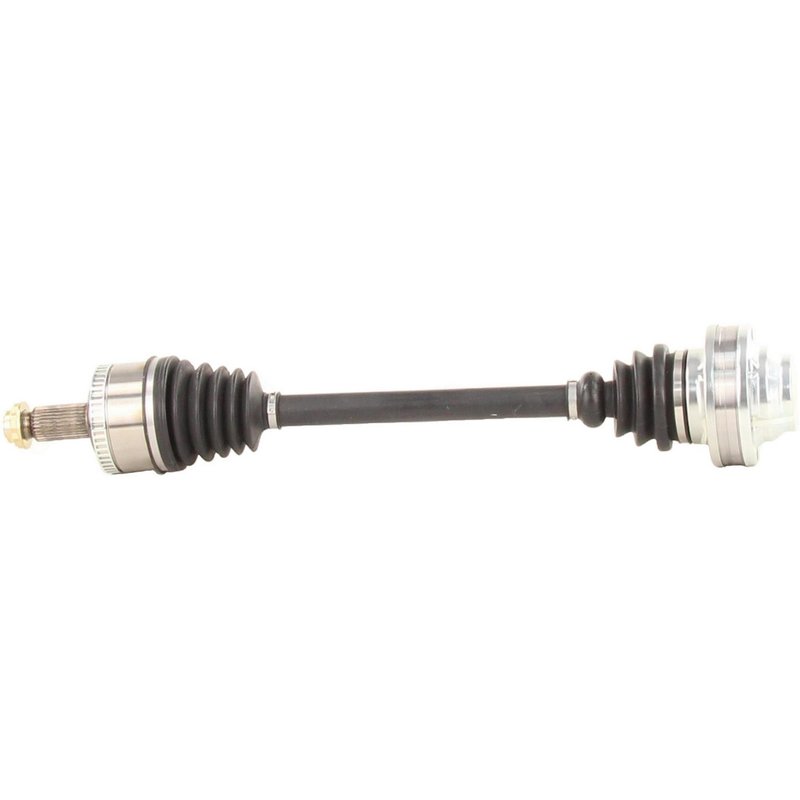

TrakMotive RV-8008 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft RV-8008 for Range Rover

The TrakMotive CV Axle Shaft RV-8008 is engineered specifically for Land Rover Range Rover models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Land Rover Range Rover vehicles
• Includes ABS tone ring with 48 window-type teeth
• Equipped with a neoprene boot for enhanced durability
• Comes with a stake locking hex axle nut (M27*1.5 thread size)
• Overall compressed length of 27.2 inches (691 mm)
• Inboard joint features bolt-on connection style
• Outboard joint uses conventional connection with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering high-quality constant velocity axle components designed to meet OEM specifications. This product line emphasizes precise engineering, including features such as integrated ABS tone rings and durable neoprene boots, to maintain optimal driveline function and vehicle safety. The RV-8008 model exemplifies these standards with its bolt-on inboard joint and conventional outboard joint design, tailored for Land Rover Range Rover applications.

Technical Specifications and Features

The RV-8008 CV Axle Shaft includes a 48-tooth window-type ABS ring, which is essential for accurate wheel speed sensor readings and ABS system performance. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is a hex head type with a stake locking mechanism, measuring 5/8 inch in height and 1 2/5 inch across the hex, ensuring secure fastening. The inboard joint uses a bolt-on connection style, while the outboard joint is conventional with 30 splines, providing a reliable transfer of torque. The overall compressed length of 27.2 inches (691 mm) matches OEM dimensions for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Land Rover Range Rover
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Addresses boot damage or grease leakage issues
• Resolves axle nut fastening problems with included locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft RV-8008, ensure the bolt-on inboard joint is securely fastened according to manufacturer torque specifications. Verify the ABS tone ring is properly aligned with the wheel speed sensor to maintain ABS functionality. Use the included stake locking hex axle nut (M27*1.5 thread) and stake it to prevent loosening. Inspect the neoprene boot for any damage during installation to avoid premature failure.

Quality Assurance and Warranty

This CV Axle Shaft is a new, remanufactured-free component designed to meet or exceed OEM standards for Land Rover Range Rover vehicles. The inclusion of an ABS tone ring and durable neoprene boot reflects attention to quality and longevity. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship under normal use.
