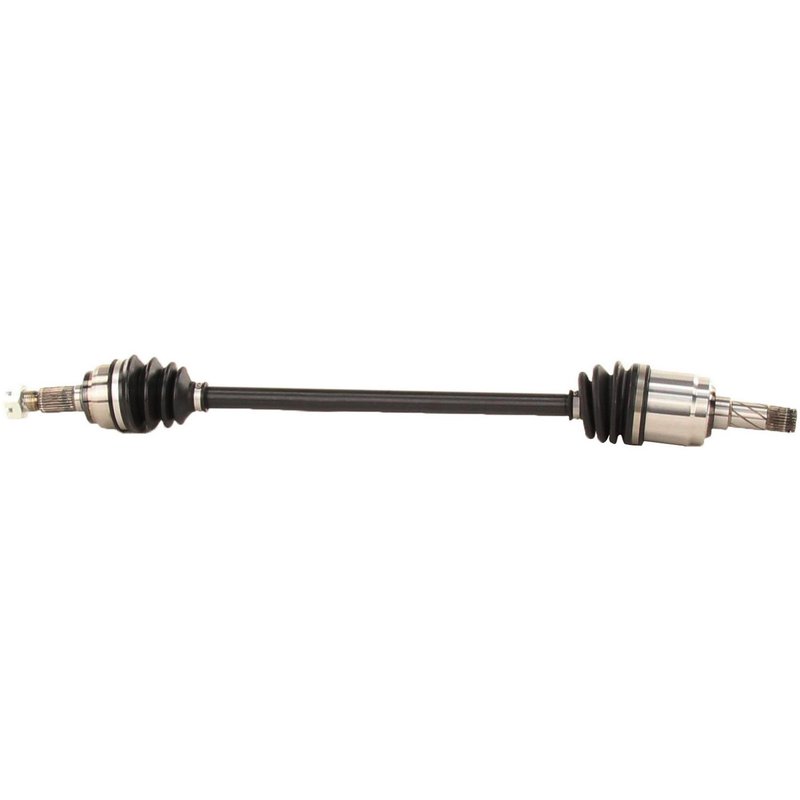

TrakMotive RV-8012 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive RV-8012 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.28 |
| Overall Compressed Length (mm) | 820 |
| Product line | CV Axle Shaft |
| Fits | Land Rover · 10 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a self-locking hex nut.
Cross-references TrakMotive RV-8012, LR024525 and LR041309 for the same application. See all 4.
Rear CV Axle Shaft for Land Rover LR2
TrakMotive RV-8012 is a new CV axle shaft for rear left and rear right applications on the Land Rover LR2. It is built for 2011-2015 LR2 models, with 2011-2014 coverage from VIN BH230867 and 2015 coverage for both rear positions.
Key Features
- Direct replacement CV axle shaft for rear driveline service
- Fits Land Rover LR2 rear right and rear left applications
- New construction with a neoprene boot material
- Includes axle nut with self-lock design
- Male inboard shaft connection with conventional outboard joint
- 26 inboard splines and 28 outboard splines
- Overall compressed length: 32.28 in. (820 mm)
- No ABS tone ring included
- TrakMotive CV Axle Shaft line part number RV-8012
Product Details
This TrakMotive CV Axle Shaft line part is engineered for rear axle service on the Land Rover LR2 and cross-references OE numbers LR024525, LR041309, and LR061592 for the same application. The RV-8012 uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support driveline movement while maintaining a proper fit in the rear suspension layout. The included axle nut uses an M24x2 thread with a hex head and self-lock design.
Compatible With 2015 Land Rover LR2, rear right and rear left. Compatible With 2011-2014 Land Rover LR2, rear right and rear left, from VIN BH230867.
Common Issues This Part Can Address
- Clicking or popping from a worn rear CV joint
- Vibration during acceleration from axle wear
- Torn or leaking axle boot condition
- Excessive play in the rear axle assembly
- Noise from damaged splines or joint wear
Installation Notes and Tips
Verify rear left or rear right position before ordering, and confirm VIN break BH230867 for 2011-2014 Land Rover LR2 applications. Match the axle nut thread size, hex size, and overall length to the original assembly before installation. Inspect seals, hub surfaces, and adjacent suspension components during replacement to help ensure a proper repair.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. The RV-8012 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Land Rover | LR2 | Rear Right | CV Axle Shaft |
| 2015 | Land Rover | LR2 | Rear Left | CV Axle Shaft |
| 2014 | Land Rover | LR2 | Rear Right | From VIN BH230867; CV Axle Shaft |
| 2014 | Land Rover | LR2 | Rear Left | From VIN BH230867; CV Axle Shaft |
| 2013 | Land Rover | LR2 | Rear Right | From VIN BH230867; CV Axle Shaft |
| 2013 | Land Rover | LR2 | Rear Left | From VIN BH230867; CV Axle Shaft |
| 2012 | Land Rover | LR2 | Rear Right | From VIN BH230867; CV Axle Shaft |
| 2012 | Land Rover | LR2 | Rear Left | From VIN BH230867; CV Axle Shaft |
| 2011 | Land Rover | LR2 | Rear Right | From VIN BH230867; CV Axle Shaft |
| 2011 | Land Rover | LR2 | Rear Left | From VIN BH230867; CV Axle Shaft |
