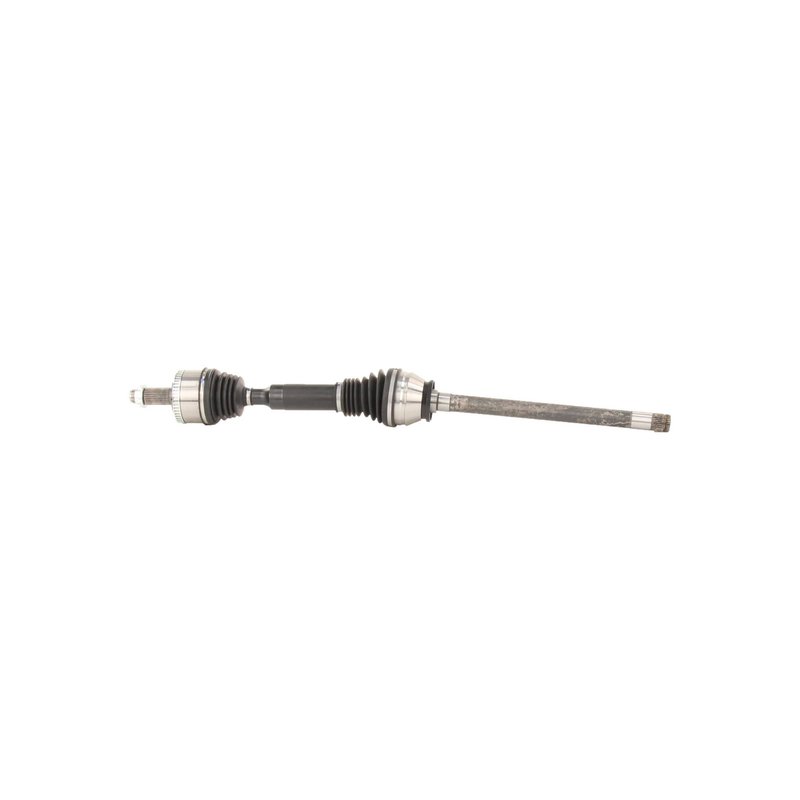

TrakMotive RV-8014 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Land Rover Range Rover

The TrakMotive CV Axle Shaft RV-8014 is engineered to meet the specific driveline needs of Land Rover Range Rover vehicles. Designed with precision, this new axle shaft ensures consistent performance and durability for your vehicle's CV components.

• Compatible with Land Rover Range Rover models
• New CV Axle Shaft with 30 splines on both inboard and outboard ends
• 48-tooth window-type ABS ring for accurate wheel speed sensing
• Includes a hex head axle nut with stake locking mechanism
• Overall compressed length of 38.09 inches (967.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering reliable driveline components designed to match OEM specifications. The RV-8014 model features a male inboard joint with spline shaft connection styles on both ends, ensuring proper fit and function for Land Rover Range Rover vehicles. This product line emphasizes precision engineering and compatibility with factory ABS systems, as evidenced by the included 48-tooth window-type ABS ring.

Technical Specifications and Features

This CV axle shaft includes a 48-tooth window ABS ring, which supports accurate anti-lock braking system operation without an included tone ring. The axle nut is a hex head type measuring 1.4 inches (35.5 mm) across flats, with a height of 0.63 inches (16 mm) and a length of 1.61 inches (40.99 mm). It features a stake locking type thread size of M27 x 1.5 to secure the assembly firmly. Both the inboard and outboard joints utilize spline connection styles with 30 splines each, providing a secure and precise fit. The overall compressed length of 38.09 inches (967.5 mm) ensures proper alignment within the driveline system.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Land Rover Range Rover
• Restores proper ABS sensor function with the integrated 48-tooth window ABS ring
• Eliminates driveline vibrations caused by faulty or bent axles
• Addresses axle nut thread wear or damage with included hex head axle nut
• Ensures smooth power transfer from transmission to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft RV-8014, verify compatibility with your specific Land Rover Range Rover model year. Use the included hex head axle nut with the stake locking feature to secure the axle properly. Ensure the ABS ring aligns correctly with the vehicle’s sensor for accurate wheel speed readings. It is recommended to inspect related driveline components during installation for wear or damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. Warranty details should be confirmed with the distributor or manufacturer.
