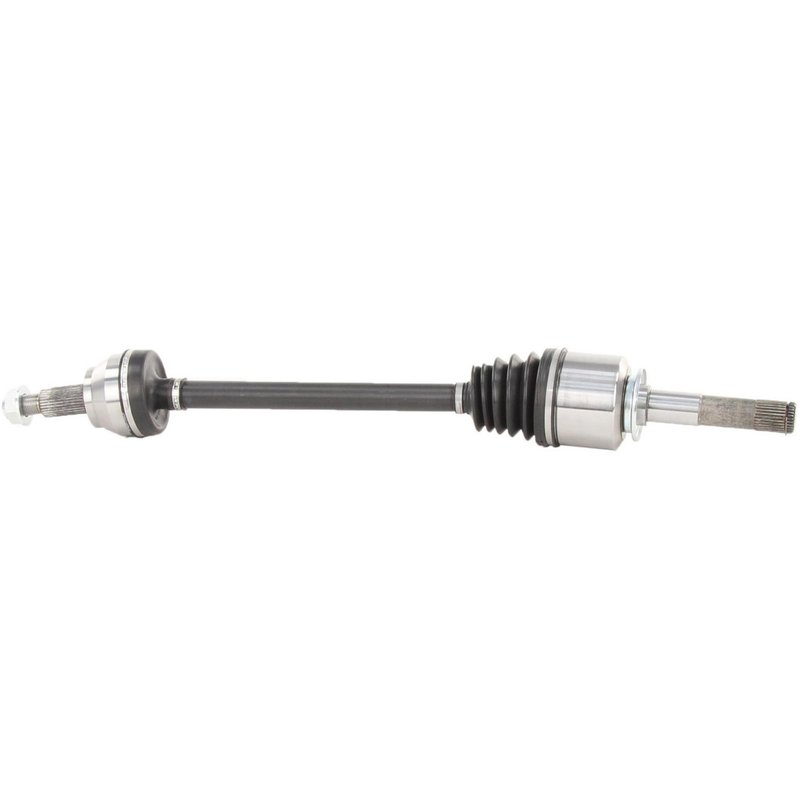

TrakMotive RV-8016 CV Axle Shaft - Front Left or Rear Left
| Brand | TrakMotive RV-8016 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | HEX |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Length (mm) | 40.99 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.95 |
| Overall Compressed Length (mm) | 837 |
| Product line | CV Axle Shaft |
| Fits | Land Rover · 14 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
Spline connections. Inboard and outboard spline ends promote secure engagement.
Certified manufacturing. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive RV-8016, LR069102 and LR073345 for the same application. See all 3.
TrakMotive CV Axle Shaft RV-8016
TrakMotive RV-8016 is a new CV axle shaft built for specific Land Rover rear-left and front-left applications. It features a neoprene boot, spline-style shaft connections, and includes the axle nut for a direct replacement on confirmed vehicle listings.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: RV-8016
- New construction for replacement service
- Neoprene boot material
- Inboard joint type: male
- Inboard shaft connection: spline
- Outboard joint type: conventional
- Outboard shaft connection: spline
- Overall compressed length: 32.95 in. (837 mm)
- Axle nut included; hex head, stake locking type, M24 x 2 thread
- No ABS tone ring included
Application Details
This TrakMotive CV axle shaft is listed for 2013-2018 Land Rover Range Rover, rear left with locking differential; 2014-2018 Land Rover Range Rover Sport, front left with 2 speed transfer case and torque vectoring; and 2017-2019 Land Rover Discovery, rear left with 2 speed transfer case and torque vectoring. The RV-8016 is also cross-referenced to LR069102 and LR073345 for the same application.
As part of the TrakMotive CV Axle Shaft line, RV-8016 is built for driveline service where precise spline engagement, correct compressed length, and application-specific fitment matter. For Land Rover Range Rover, Range Rover Sport, and Discovery models, this axle shaft supports direct replacement on the listed positions without requiring a remanufactured unit.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a deteriorated boot
- Noise caused by spline or joint wear
- Driveline issues tied to a bent or fatigued axle assembly
Installation Notes
Verify the vehicle position, transfer case, differential, and torque vectoring or locking differential configuration before installation. Confirm axle length, spline count, and axle nut thread size match the original part. The axle nut is included; ABS tone ring is not included. This part is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive states this axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. RV-8016 is a new CV axle shaft built to meet the listed application requirements for Land Rover driveline service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Land Rover | Discovery | Rear Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2018 | Land Rover | Discovery | Rear Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2018 | Land Rover | Range Rover | Rear Left | w/ Locking Differential; CV Axle Shaft |
| 2018 | Land Rover | Range Rover Sport | Front Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2017 | Land Rover | Discovery | Rear Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2017 | Land Rover | Range Rover | Rear Left | w/ Locking Differential; CV Axle Shaft |
| 2017 | Land Rover | Range Rover Sport | Front Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2016 | Land Rover | Range Rover | Rear Left | w/ Locking Differential; CV Axle Shaft |
| 2016 | Land Rover | Range Rover Sport | Front Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2015 | Land Rover | Range Rover | Rear Left | w/ Locking Differential; CV Axle Shaft |
| 2015 | Land Rover | Range Rover Sport | Front Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2014 | Land Rover | Range Rover | Rear Left | w/ Locking Differential; CV Axle Shaft |
| 2014 | Land Rover | Range Rover Sport | Front Left | 2 Speed Transfer Case; w/ Torque Vectoring; CV Axle Shaft |
| 2013 | Land Rover | Range Rover | Rear Left | w/ Locking Differential; CV Axle Shaft |
