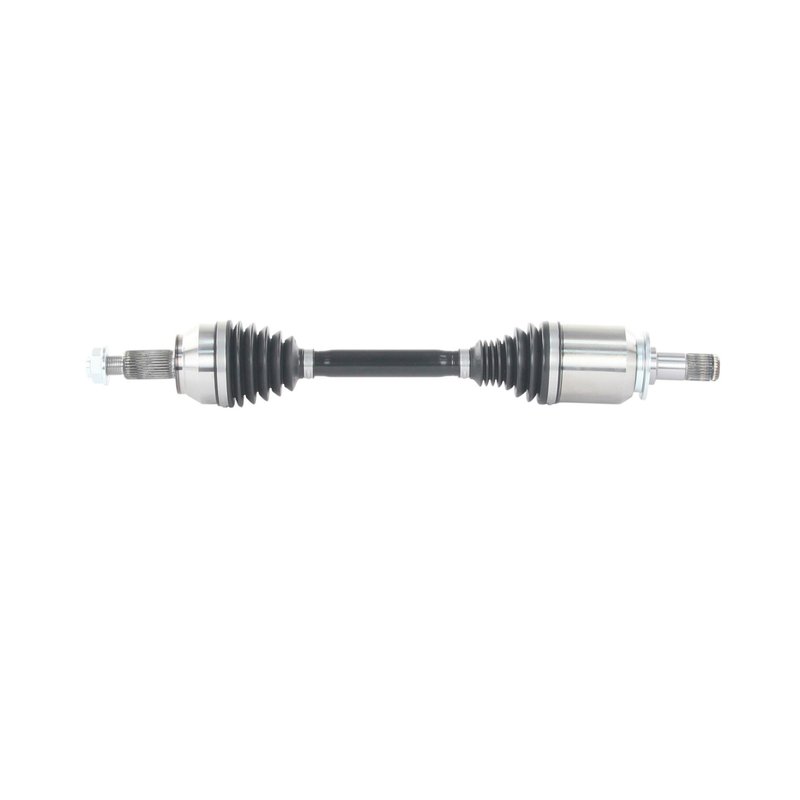

TrakMotive RV-86001 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Range Rover Sport

The TrakMotive AAR CV Axle Shaft RV-86001 is a front left driveline replacement for select 2014-2020 Land Rover Range Rover Sport models with a 1-speed transfer case. It is built as a premium CV axle shaft with application-specific spline counts and dimensions for a direct-fit service part.

Key Features

• Fits 2014-2020 Land Rover Range Rover Sport, front left, with 1-speed transfer case
• TrakMotive AAR CV Axle Shaft, part number RV-86001
• 29 inboard splines and 31 outboard splines
• Thermoplastic boots on both inboard and outboard joints
• Male inboard joint and conventional outboard joint design
• No ABS tone ring included; ABS ring tooth count is 0
• Axle nut thread size: M24x2; 36 mm hex size
• Overall compressed length: 26.19 in (665 mm); extended length: 28.75 in (730 mm)

Product Details

RV-86001 is part of TrakMotive’s AAR CV Axle Shaft line, a product line focused on application-matched driveline replacement for passenger vehicles and SUVs. This axle is engineered around the listed spline counts, joint styles, and installed length to match the front left position on the Land Rover Range Rover Sport platform. The manufacturer notes ISO 9001:2008 and TS 16949:2009 certified production, and this axle is backed by a limited lifetime warranty.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Clicking or popping during turns caused by worn CV joints
• Vibration from a damaged or out-of-balance front axle shaft
• Torn axle boots that allow grease loss and contamination
• Axle play or looseness from worn splines or joint wear
• Front driveline noise on Range Rover Sport models with the specified transfer case setup

Installation Notes and Tips

Verify the vehicle uses the front left position and a 1-speed transfer case before ordering. Confirm axle nut thread size, hex size, and spline counts against the original shaft to ensure proper fitment on your Range Rover Sport. Because this axle does not include an axle nut or ABS tone ring, reuse or source those items separately as needed for the application.

Quality Assurance

TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. RV-86001 is covered by a limited lifetime warranty.
