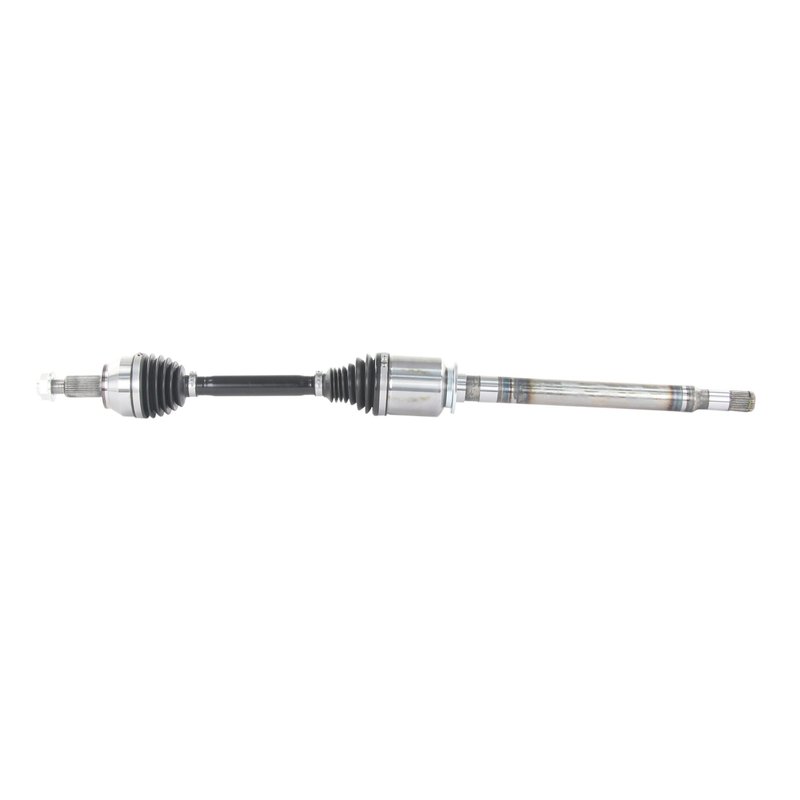

TrakMotive RV-86006 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Range Rover Sport

The TrakMotive AAR CV Axle Shaft RV-86006 is a premium driveline replacement for the front right position on select 2014-2020 Land Rover Range Rover Sport models with a 1-speed transfer case. It is built for direct-fit service where a worn or noisy axle needs to be replaced with a precise OE-style component.

TrakMotive’s AAR CV Axle Shaft line focuses on application-specific fitment and consistent manufacturing standards. This RV-86006 axle is produced by an ISO 9001:2008 and TS 16949:2009 certified company and is backed by a limited lifetime warranty.

Key Features

• Front right CV axle shaft for select Land Rover Range Rover Sport applications
• Fits 2014-2020 Land Rover Range Rover Sport, front right, with 1-speed transfer case
• Premium grade replacement axle shaft
• Long-male inboard joint design with conventional outboard joint
• 29 inboard splines and 31 outboard splines
• 36 mm axle nut hex size with M24x2 thread size
• No ABS tone ring included; ABS ring tooth count is 0
• Overall compressed length: 40.44 in (1027 mm); extended length: 43 in (1092 mm)

Detailed Description

TrakMotive RV-86006 is a CV axle shaft for the front right side of the Land Rover Range Rover Sport, covering 2014-2020 vehicles equipped with a 1-speed transfer case. If you are searching for a front right Range Rover Sport CV axle shaft, a Land Rover Range Rover Sport driveline replacement, or TrakMotive RV-86006 fitment details, this part matches the listed application and dimensions for direct replacement service. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Issues This Part Can Help Solve

• Clicking or popping noises during turns
• Vibration felt through the drivetrain
• Grease leakage from a worn axle boot or joint
• Excessive play in the front axle assembly
• Loss of smooth power transfer to the front wheel

Installation Notes and Tips

Verify the vehicle is a 2014-2020 Land Rover Range Rover Sport with a 1-speed transfer case before ordering. Confirm axle nut thread size, hex size, spline counts, and overall length against the original axle to ensure proper fit. The axle nut is not included, so reuse or replace it as required by the vehicle service procedure. Because this is a front right application, confirm side and position before installation.

Quality Assurance

TrakMotive manufactures this AAR CV Axle Shaft as a premium replacement part and states that the company is ISO 9001:2008 and TS 16949:2009 certified. RV-86006 is covered by a limited lifetime warranty.
