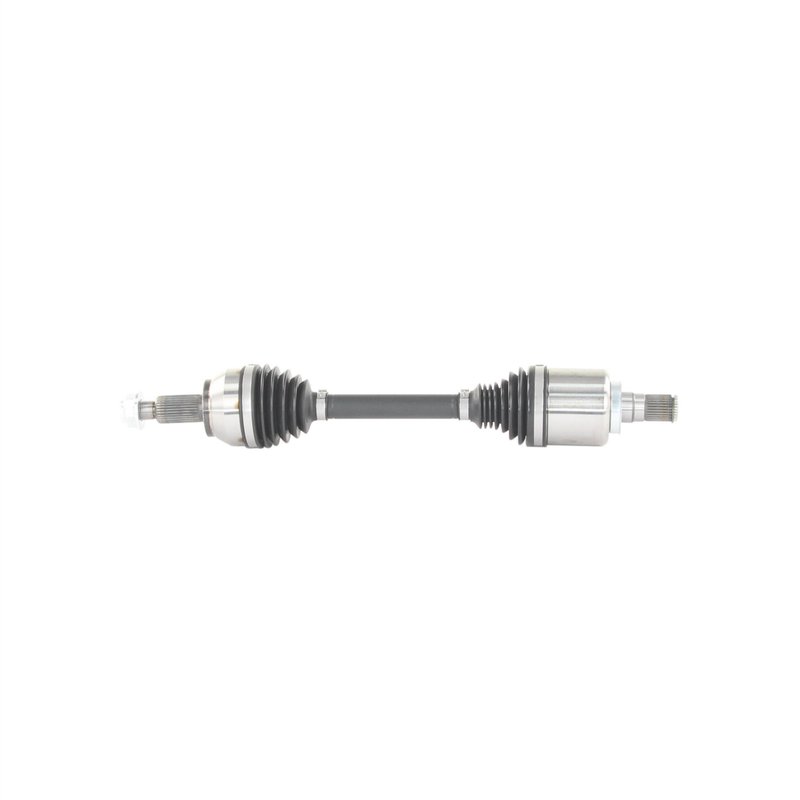

TrakMotive RV-86010 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Land Rover

TrakMotive RV-86010 is a premium AAR CV axle shaft for front left applications on select Land Rover models. It is built for vehicles that use a 31-spline inboard and 31-spline outboard configuration, with OE AAR design details for proper driveline fitment.

Compatible with 2015-2017 Land Rover Discovery Sport, front left, and 2012-2017 Land Rover Range Rover Evoque, front left. This TrakMotive AAR CV Axle Shaft RV-86010 is a direct-fit driveline replacement for vehicles requiring the specified axle geometry and spline count.

Key Features

• Premium-grade CV axle shaft for front left driveline service
• OE AAR design for the listed Land Rover applications
• 31 inboard splines and 31 outboard splines
• Male inboard joint with conventional outboard joint type
• No ABS tone ring included; ABS ring tooth count is 0
• Axle nut thread size: M24x2
• Axle nut socket size: 36 mm
• Overall compressed length: 618.5-619 mm; overall extended length: 671 mm

Product Details

TrakMotive RV-86010 is part of the AAR CV Axle Shaft line, a product line focused on OE-style axle geometry for driveline replacement. This axle is specified for front left use on the Land Rover Discovery Sport and Range Rover Evoque applications listed above, with the correct spline counts, joint style, and length dimensions needed for proper installation and operation. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

What This Axle Shaft Helps Address

• Clicking or popping noises during turns caused by worn CV joints
• Vibration from a worn or damaged front axle shaft
• Grease leakage from a failing CV boot or joint assembly
• Driveline play or looseness at the front left axle position
• Loss of smooth power transfer to the front wheel

Installation Notes and Tips

Verify axle nut thread size, socket size, spline count, and overall length before installation. Confirm whether the vehicle uses ABS or non-ABS axle configuration, since this axle does not include an ABS tone ring. Always inspect related seals, hub components, and mounting points during axle replacement.

Quality Assurance

TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing and quality control.
