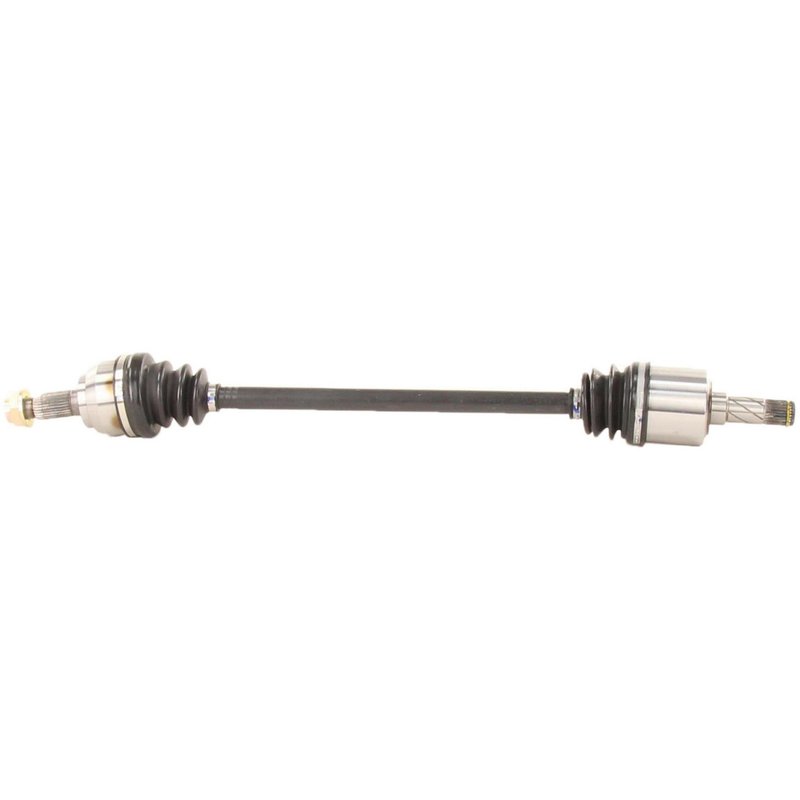

TrakMotive RV-8707 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft RV-8707 for Land Rover LR2

The TrakMotive CV Axle Shaft RV-8707 is designed specifically for Land Rover LR2 models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Land Rover LR2
• New CV axle shaft with part number RV-8707
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut with M24*1.5 thread size
• Overall compressed length of 32.22 inches (818.5 mm)
• Inboard joint type: Male with 26 splines
• Outboard joint type: Conventional with 28 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The CV Axle Shaft RV-8707 is part of this line, offering a new, direct-fit replacement designed to meet factory specifications for the Land Rover LR2. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like the axle nut to facilitate installation.

Technical Description and Specifications

This CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint is a male type with 26 splines, while the outboard joint is conventional with 28 splines, ensuring compatibility with the Land Rover LR2's driveline system. The included axle nut has a hex head measuring 1 2/5 inches (35.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). The stake locking type axle nut secures the assembly firmly in place. The overall compressed length of the shaft is 32.22 inches (818.5 mm), matching OEM dimensions for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Land Rover LR2
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Addresses grease leakage from torn or degraded boots
• Restores driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft RV-8707 on a Land Rover LR2, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. The neoprene boot should be inspected for any damage during installation. Verify spline engagement on both inboard and outboard joints to avoid driveline issues. It is recommended to replace the axle nut included with the shaft to maintain secure assembly.

Quality Assurance and Warranty Information

This CV axle shaft is a new, direct replacement part manufactured to meet or exceed OEM standards for fit and function. The use of durable neoprene boots and precision-machined splines supports long service life. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation for exact warranty terms.
