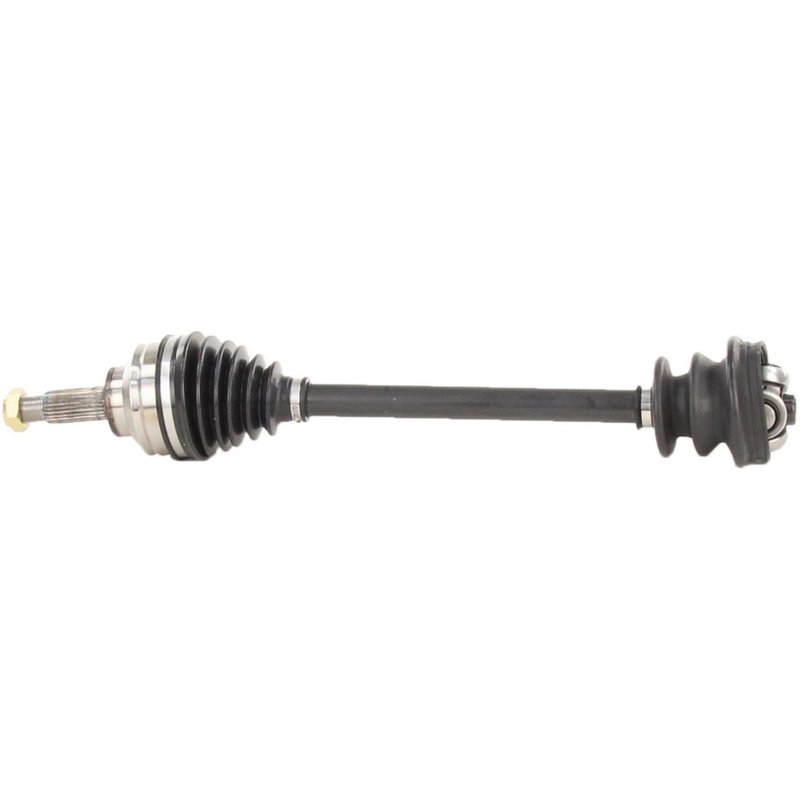

TrakMotive SA-8003 CV Axle Shaft - Front Right
| Brand | TrakMotive SA-8003 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Tripod |
| Inboard Shaft Connection Style | Tripod |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.25 |
| Overall Compressed Length (mm) | 616 |
| Product line | CV Axle Shaft |
| Fits | Saab · 5 vehicles |
New axle shaft. Built with a neoprene boot and conventional tripod joint design.
Axle nut included. Self-locking hex nut is included for a complete install.
ISO certified. Made by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone Reman 60-9039, TrakMotive SA-8003 and 40-13106 for the same application. See all 12.
CV Axle Shaft for Saab 900 Front Right
TrakMotive SA-8003 is a new CV axle shaft for the front right position on 1985-1989 Saab 900 models. It is built with a tripod inboard joint, a conventional outboard joint, and a neoprene boot for driveline service on the specified application.
Key Features
- Fits 1985-1989 Saab 900, front right
- TrakMotive CV Axle Shaft, part number SA-8003
- New axle assembly with 25 outboard splines
- Tripod inboard shaft connection style
- Conventional outboard shaft connection style
- Neoprene boot material
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and self-lock design
- No ABS tone ring included
Product Details
SA-8003 is a direct-fit driveline replacement for the front right side of the Saab 900 within the listed model years. The axle uses a tripod-style inboard joint for articulation and a conventional outboard joint for wheel-end connection, with an overall compressed length of 24.25 inches (616 mm). TrakMotive identifies this axle as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone Reman 60-9039 for the same application.
Common Repair Uses
- Restoring drivetrain power transfer after CV joint wear
- Addressing clicking or popping during turns
- Correcting vibration caused by a worn axle shaft
- Replacing a damaged boot or contaminated joint assembly
- Repairing front right axle issues on Saab 900 models
Installation Notes
Verify spline count, axle length, and axle nut specifications before installation. This axle includes the axle nut; the nut uses a 32 mm hex size, M22 x 1.5 thread, and a self-lock design. Confirm the vehicle is equipped for the listed front right application and inspect related hub, seal, and suspension components during service.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for the SA-8003 axle shaft.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Saab | 900 | Front Right | CV Axle Shaft |
| 1988 | Saab | 900 | Front Right | CV Axle Shaft |
| 1987 | Saab | 900 | Front Right | CV Axle Shaft |
| 1986 | Saab | 900 | Front Right | CV Axle Shaft |
| 1985 | Saab | 900 | Front Right | CV Axle Shaft |
