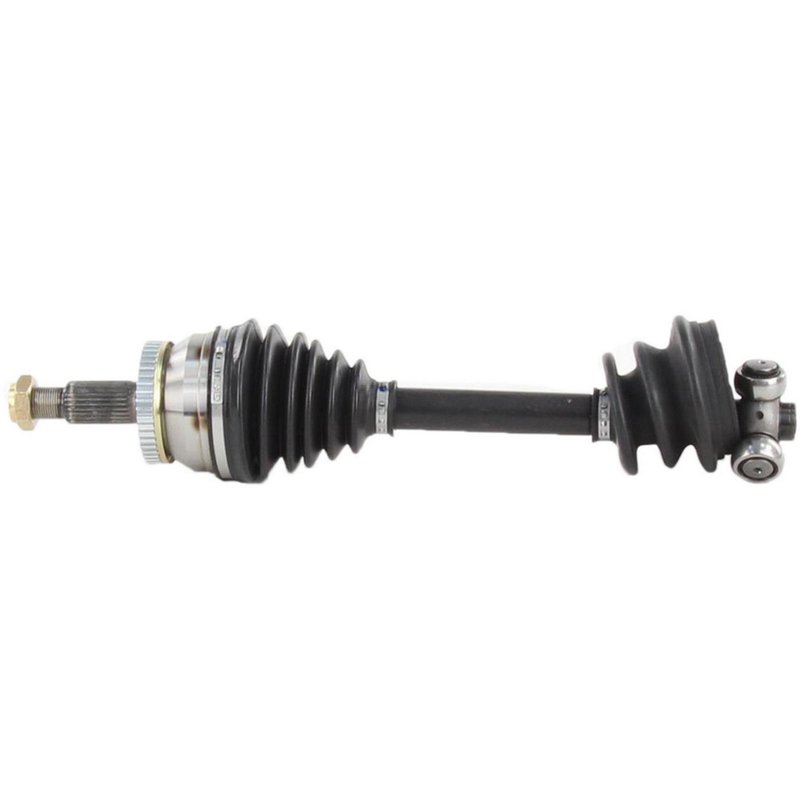

TrakMotive SA-8005 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SA-8005 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Tripod |
| Inboard Shaft Connection Style | Tripod |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 19.57 |
| Overall Compressed Length (mm) | 497 |
| Product line | CV Axle Shaft |
| Fits | Saab · 20 vehicles |
New CV axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
ABS tone ring included. Built with a 46-tooth toothed ring for accurate wheel-speed signal.
Axle nut included. Self-locking hex nut is included for a complete install.
Cross-references Anchor 9637, Cardone Reman 60-9000 and Cardone Reman 60-9170 for the same application. See all 17.
TrakMotive SA-8005 CV Axle Shaft for Saab 9000
The TrakMotive SA-8005 is a new CV axle shaft for Saab 9000 front applications. It is built for front left and front right positions on select 1990-1998 Saab 9000 models, with fitment details that include ABS-equipped and non-ABS applications where noted.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SA-8005
- New axle shaft, not remanufactured
- Front left and front right fitment for Saab 9000
- Inboard joint type: tripod
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 46-tooth toothed ring
- Axle nut included: M22 x 1.5, 32 mm hex, self-locking
- Overall compressed length: 19.57 in. (497 mm)
Product Details
The TrakMotive SA-8005 CV axle shaft is engineered for driveline service on Saab 9000 front axle positions. This axle uses a tripod inboard joint and a conventional outboard joint, along with a neoprene boot for the joint assembly. The included ABS tone ring and 46-tooth toothed ring support applications that require wheel speed signal compatibility. TrakMotive identifies this axle shaft as part of its CV Axle Shaft line, and the SA-8005 reference is useful when cross-checking replacement options for Saab 9000 front right or front left service.
This part cross-references Anchor 9637 and MOOG Chassis Products 5536 for the same application.
What It Helps Address
- Clicking or popping noises during turns from worn CV joints
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that can lead to grease loss and contamination
- ABS-related drivability issues when the tone ring is part of the original setup
- Front driveline wear on Saab 9000 vehicles with failing axle components
Installation Notes and Tips
Verify the vehicle position before ordering, since this axle is listed for front left and front right Saab 9000 applications. Confirm the axle nut thread size, hex size, and locking style against the original part before installation. For 1991-1993 Saab 9000 applications, check the chassis break note from CH#M1026826. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat axle failure.
Quality Assurance
TrakMotive lists this axle shaft as a new component and states that the company is ISO 9001:1007 and TS 16949:2009 certified. The SA-8005 also carries a limited lifetime warranty.
Fitment
- Fits 1990 Saab 9000, front right.
- Fits 1990 Saab 9000, front left.
- Fits 1991-1993 Saab 9000, front right. From CH#M1026826; CV Axle Shaft.
- Fits 1991-1993 Saab 9000, front left. From CH#M1026826; CV Axle Shaft.
- Fits 1994-1998 Saab 9000, front right.
- Fits 1994-1998 Saab 9000, front left.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1998 | Saab | 9000 | — | — | — | Front Right | CV Axle Shaft |
| 1998 | Saab | 9000 | — | — | — | Front Left | CV Axle Shaft |
| 1997 | Saab | 9000 | — | — | — | Front Right | CV Axle Shaft |
| 1997 | Saab | 9000 | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Saab | 9000 | — | — | — | Front Right | CV Axle Shaft |
| 1996 | Saab | 9000 | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Saab | 9000 | — | — | — | Front Right | CV Axle Shaft |
| 1995 | Saab | 9000 | — | — | — | Front Left | CV Axle Shaft |
| 1994 | Saab | 9000 | — | — | — | Front Right | CV Axle Shaft |
| 1994 | Saab | 9000 | — | — | — | Front Left | CV Axle Shaft |
| 1993 | Saab | 9000 | Automatic | — | — | Front Left | From CH#M1026826; CV Axle Shaft |
| 1993 | Saab | 9000 | — | — | — | Front Right | From CH#M1026826; CV Axle Shaft |
| 1992 | Saab | 9000 | Manual | — | — | Front Right | From CH#M1026826; CV Axle Shaft |
| 1992 | Saab | 9000 | Automatic | — | — | Front Right | From CH#M1026826; CV Axle Shaft |
| 1992 | Saab | 9000 | Automatic | — | — | Front Left | From CH#M1026826; CV Axle Shaft |
| 1991 | Saab | 9000 | Manual | — | — | Front Right | From CH#M1026826; CV Axle Shaft |
| 1991 | Saab | 9000 | Automatic | — | — | Front Right | From CH#M1026826; CV Axle Shaft |
| 1991 | Saab | 9000 | Automatic | — | — | Front Left | From CH#M1026826; CV Axle Shaft |
| 1990 | Saab | 9000 | Automatic | — | — | Front Left | CV Axle Shaft |
| 1990 | Saab | 9000 | Automatic | 2.3L | L4 | Front Right | CV Axle Shaft |
