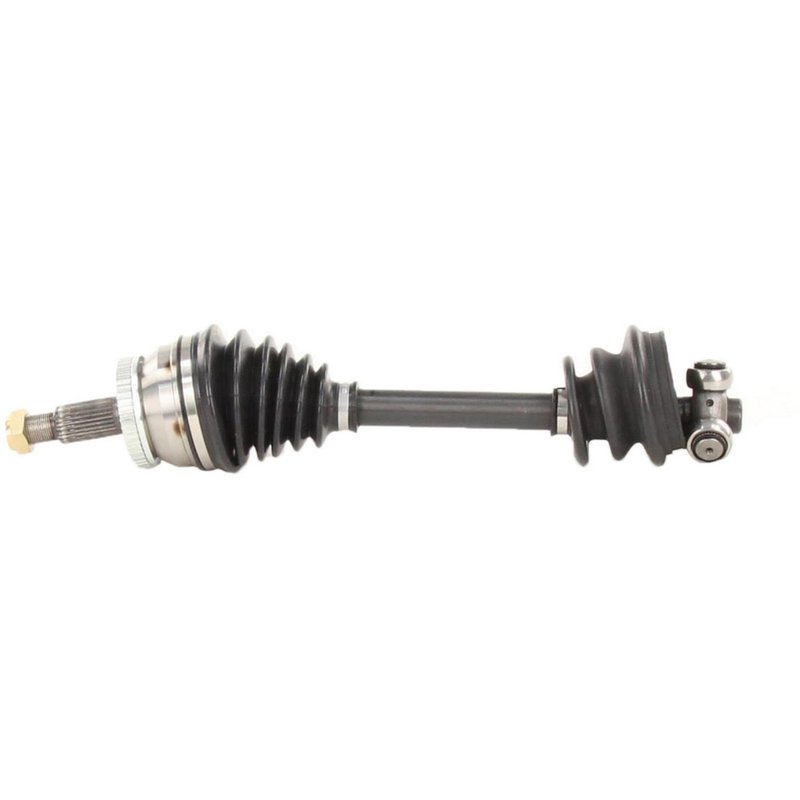

TrakMotive SA-8011 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SA-8011 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Tripod |
| Inboard Shaft Connection Style | Tripod |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.33 |
| Overall Compressed Length (mm) | 516.5 |
| Product line | CV Axle Shaft |
| Fits | Saab · 12 vehicles |
OE-style replacement. New CV axle shaft with a direct-fit design for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring with 46 teeth for ABS-equipped applications.
Cross-references Anchor 9634, Cardone Reman 60-9169 and TrakMotive SA-8011 for the same application. See all 8.
TrakMotive CV Axle Shaft for Saab 9000
The TrakMotive SA-8011 CV axle shaft is a new driveline replacement for select Saab 9000 front axle applications. It is built with a tripod inboard joint, conventional outboard joint, and a neoprene boot to support smooth power transfer and consistent operation.
Compatible with Saab 9000 front left and front right applications across the listed model years, this CV axle shaft is a direct-fit option for drivers replacing a worn or noisy axle assembly. The SA-8011 also includes ABS tone ring details for applications that require it.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SA-8011
- New axle shaft assembly
- Tripod inboard joint and conventional outboard joint
- Neoprene boot material
- ABS tone ring included with 46-tooth toothed ring
- Axle nut included with self-lock design
- Axle nut thread size: M22 x 1.5
- Overall compressed length: 20.33 in. (516.5 mm)
- 26 outboard splines
Product Details
The TrakMotive SA-8011 is engineered as a replacement CV axle shaft for Saab 9000 front axle service. Its tripod inboard shaft connection and conventional outboard shaft connection match the listed fitment requirements, while the neoprene boot helps protect the joint assembly from road debris and contamination. This part number is listed for 1990-1994 Saab 9000 front left and front right applications, including 1991 Saab 9000 vehicles with the specified chassis break notes. The SA-8011 is also referenced under interchange numbers used for the same application.
This part cross-references Cardone Reman 60-9169 for the same application.
What It Helps Address
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration caused by axle wear
- Grease leakage from a damaged axle boot
- Noise from a failing front axle shaft assembly
- Driveline performance issues on Saab 9000 front axle service
Installation Notes and Tips
Verify the vehicle position, axle length, spline count, and ABS requirements before installation. This axle includes an ABS tone ring and is listed to fit non-ABS applications unless otherwise noted by the vehicle configuration. Confirm the 1991 Saab 9000 chassis break notes carefully: front right to CH#m1026825, front left to CH#m1026825, and front left from CH#M1026826. Always inspect seals, hub components, and axle nut thread engagement during replacement.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The SA-8011 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1994 | Saab | 9000 | — | Front Right | CV Axle Shaft |
| 1994 | Saab | 9000 | — | Front Left | CV Axle Shaft |
| 1993 | Saab | 9000 | Manual | Front Left | CV Axle Shaft |
| 1992 | Saab | 9000 | Manual | Front Left | CV Axle Shaft |
| 1991 | Saab | 9000 | Manual | Front Left | CV Axle Shaft |
| 1991 | Saab | 9000 | Manual | Front Right | To CH#m1026825; CV Axle Shaft |
| 1991 | Saab | 9000 | Manual | Front Left | To CH#m1026825; CV Axle Shaft |
| 1991 | Saab | 9000 | Manual | Front Left | From CH#M1026826; CV Axle Shaft |
| 1991 | Saab | 9000 | Automatic | Front Right | To CH#m1026825; CV Axle Shaft |
| 1991 | Saab | 9000 | Automatic | Front Left | To CH#m1026825; CV Axle Shaft |
| 1990 | Saab | 9000 | Manual | Front Right | CV Axle Shaft |
| 1990 | Saab | 9000 | Manual | Front Left | CV Axle Shaft |
