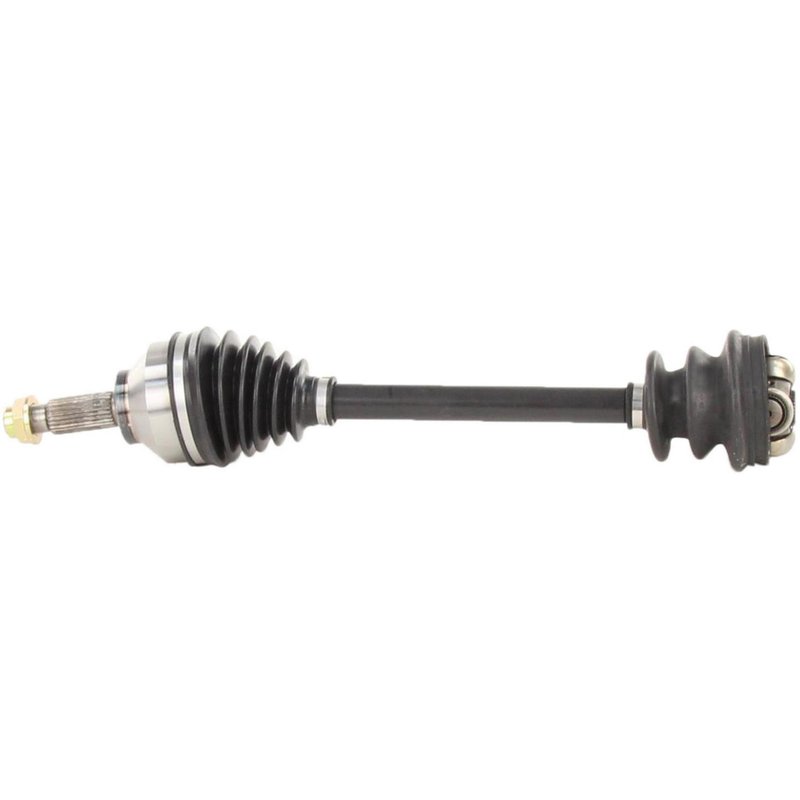

TrakMotive SA-8013 CV Axle Shaft - Front Left
| Brand | TrakMotive SA-8013 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Tripod |
| Inboard Shaft Connection Style | Tripod |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.44 |
| Overall Compressed Length (mm) | 570 |
| Product line | CV Axle Shaft |
| Fits | Saab · 9 vehicles |
OE-style replacement. New CV axle shaft with a bolt-on fit and included axle nut.
Neoprene boot. Durable material helps protect the joint from wear and contamination.
Tripod inboard joint. Conventional outboard design for smooth driveline operation.
Cross-references Anchor 9611, TrakMotive SA-8013 and 60-9172 for the same application. See all 9.
CV Axle Shaft for Saab 900 Front Left
TrakMotive SA-8013 is a new CV axle shaft for the front left position on 1981-1989 Saab 900 models. Built for driveline service, it includes a neoprene boot, a tripod inboard joint, and a conventional outboard joint for direct replacement use.
Key Features
- Fits 1981-1989 Saab 900, front left
- TrakMotive CV Axle Shaft, part number SA-8013
- New axle assembly with 25 outboard splines
- Tripod inboard shaft connection style
- Conventional outboard shaft connection style
- Neoprene boot material for the CV joint assembly
- Includes axle nut with M22 x 1.5 thread size
- Axle nut uses a stake locking type and 31.8 mm hex size
- Overall compressed length: 22.44 in. (570 mm)
Product Details
SA-8013 is a front left CV axle shaft for Saab 900 applications from 1981 through 1989. This TrakMotive CV axle shaft is built as a new replacement unit with a tripod-style inboard joint and a conventional outboard joint, matching the driveline layout used on the listed vehicle applications. The axle nut is included, and the assembly uses a neoprene boot for joint protection. This part cross-references Anchor 9611 for the same application.
Common Repair Uses
- Restores driveline transfer when a worn axle causes vibration or clicking
- Addresses torn CV boots that can lead to grease loss and joint wear
- Replaces a damaged front left axle on Saab 900 models
- Helps correct noise during acceleration or turning from a failing CV joint
- Supports repair after spline, joint, or shaft wear in the front driveline
Installation Notes
Verify front left fitment against the vehicle’s year and drivetrain configuration before installation. Confirm axle nut thread size, hex size, and locking style match the vehicle requirements. Inspect the hub, seals, and mating components for wear before installing the new axle shaft. Use the listed compressed length and spline count to confirm application details for the Saab 900.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states that its products are manufactured under ISO 9001:1007 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1988 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1987 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1986 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1985 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1984 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1983 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1982 | Saab | 900 | Front Left | New; CV Axle Shaft |
| 1981 | Saab | 900 | Front Left | New; CV Axle Shaft |
