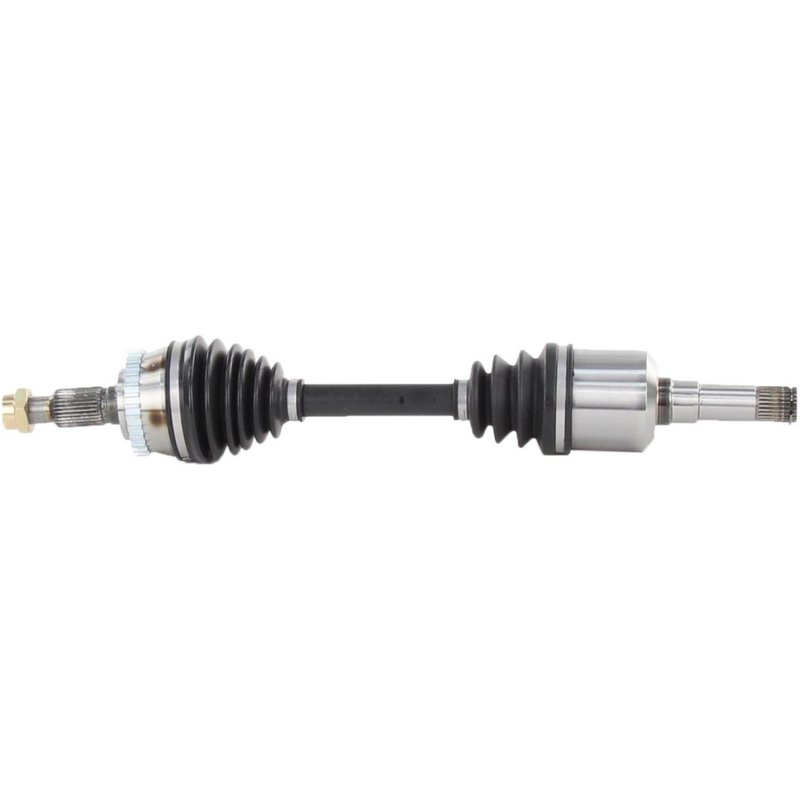

TrakMotive SA-8022 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SA-8022 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 29 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.21 |
| Overall Compressed Length (mm) | 615 |
| Product line | CV Axle Shaft |
| Fits | Saab · 18 vehicles |
New axle shaft. Built with a neoprene boot for durable CV joint protection.
ABS tone ring included. Toothed ring comes installed for compatible ABS applications.
Axle nut included. Self-locking hex nut is provided for a complete install.
Cross-references Cardone New 66-9273, TrakMotive SA-8022 and 0020N for the same application. See all 8.
TrakMotive SA-8022 CV Axle Shaft for Saab 9-5
The TrakMotive SA-8022 CV axle shaft is a new driveline replacement for Saab 9-5 front axle applications. It is built for 2002-2010 Saab 9-5 front left and front right positions, including 2010 models with VIN E as the 5th digit.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SA-8022
- New axle shaft, not remanufactured
- Fits front left and front right Saab 9-5 applications
- Overall compressed length: 24.21 in. (615 mm)
- 27 inboard splines and 30 outboard splines
- Male inboard shaft connection with spline outboard connection
- Conventional outboard joint type
- Neoprene boot material
- ABS tone ring included; 29-tooth toothed ABS ring
- Axle nut included with self-locking M24 x 1.5 thread
Product Details
TrakMotive SA-8022 is a CV axle shaft for Saab 9-5 driveline repair, built to match the original axle layout used on front left and front right positions across 2002-2010 model years. The axle includes an ABS tone ring and toothed ABS ring setup, making it appropriate for ABS-equipped service where specified. The neoprene boot and new construction support consistent joint protection and driveline operation in everyday use. This part cross-references Cardone New 66-9273 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint during turns
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn CV boot
- ABS warning light concerns related to a failed tone ring or axle sensor interface
- Driveline noise caused by spline or joint wear
Installation Notes and Tips
Verify the vehicle position, spline count, axle nut thread size, and ABS ring configuration before installation. For 2010 Saab 9-5 applications, confirm VIN E at the 5th digit when matching the listed fitment. Inspect hub, seals, and mating components for wear before installing the new axle shaft, and torque the axle nut to the vehicle manufacturer specification.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states that its products are manufactured under ISO 9001:1007 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Saab | 9-5 | AWD | Front Right | VIN E (5th Digit); CV Axle Shaft |
| 2010 | Saab | 9-5 | AWD | Front Left | VIN E (5th Digit); CV Axle Shaft |
| 2009 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2009 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
| 2008 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2008 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
| 2007 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2007 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
| 2006 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2006 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
| 2005 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2005 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
| 2004 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2004 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
| 2003 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2003 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
| 2002 | Saab | 9-5 | FWD | Front Right | CV Axle Shaft |
| 2002 | Saab | 9-5 | FWD | Front Left | CV Axle Shaft |
