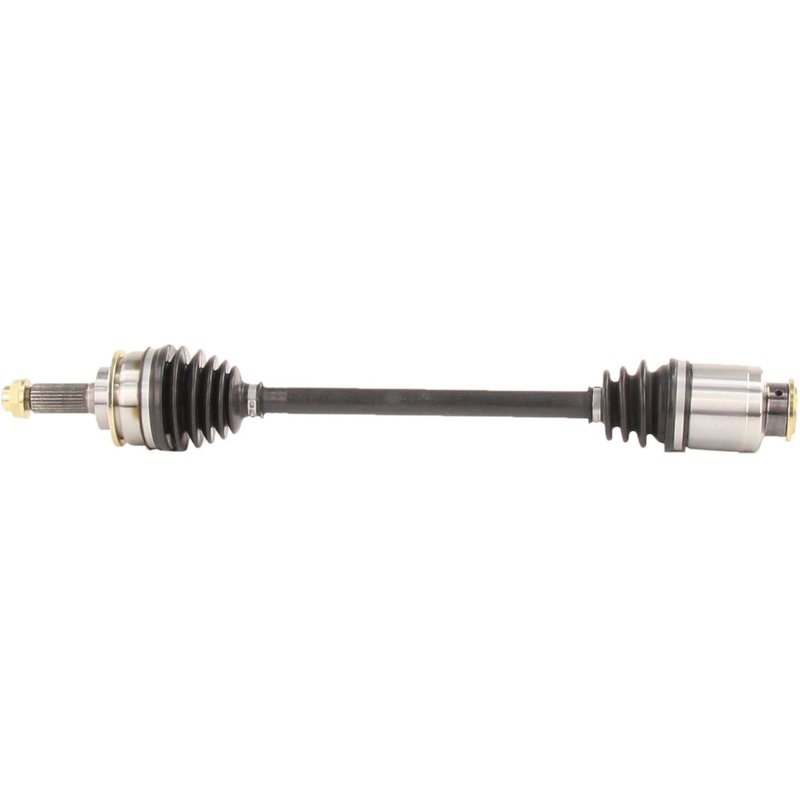

TrakMotive SB-8001 CV Axle Shaft - Front
Reliable CV Axle Shaft for Subaru Forester, Impreza, and Legacy
The TrakMotive AAR CV Axle Shaft SB-8001 is engineered to provide dependable driveline performance for select Subaru models. Designed specifically for the Forester, Impreza, and Legacy, this new CV axle shaft ensures precise fitment and consistent operation.
Key Features of the TrakMotive SB-8001 CV Axle Shaft
- Brand Line: AAR CV Axle Shaft, known for quality CV components
- Axle Nut Included with a hex head type for secure fastening
- Axle Nut Dimensions: 4/5 inch (20 mm) height, 1 1/4 inch (31.8 mm) hex size, 1 1/3 inch (34.4 mm) length
- Axle Nut Thread Size: M22*1.5 with stake locking type for reliable retention
- Boot Material: Durable neoprene to protect joints from contaminants
- Inboard Joint Type: Female with 25 splines for precise shaft connection
- Outboard Joint Type: Conventional with 27 splines for smooth power transfer
- Overall Compressed Length: 26.93 inches (684 mm) for exact fitment
About the AAR CV Axle Shaft Product Line
The AAR CV Axle Shaft line by TrakMotive focuses on delivering high-quality constant velocity components tailored for specific vehicle applications. This product line emphasizes durability and exact fitment, making it suitable for Subaru models requiring reliable driveline parts. The SB-8001 is part of this line, offering a new axle shaft designed to meet OEM specifications.
Detailed Product Description
The TrakMotive SB-8001 CV Axle Shaft is a new replacement part designed to restore driveline integrity in Subaru Forester, Impreza, and Legacy vehicles. Featuring a neoprene boot, it provides effective protection against dirt and moisture, extending joint life. The axle nut included has a hex head type with a stake locking mechanism, ensuring secure installation and preventing loosening during operation. The inboard and outboard joints are engineered with 25 and 27 splines respectively, allowing for precise engagement and smooth torque transfer. With an overall compressed length of 26.93 inches, this axle shaft fits the specified Subaru models without modification.
Common Applications and Issues Addressed
- Replacement of worn or damaged CV axle shafts in Subaru Forester, Impreza, and Legacy
- Eliminating clicking or popping noises during turns caused by joint wear
- Resolving vibration or shuddering issues related to axle imbalance or damage
- Fixing grease leaks from torn or degraded CV boots
- Restoring driveline performance after axle shaft bending or breakage
Installation Notes and Tips
Ensure the vehicle is securely lifted and supported before beginning installation. Verify the axle nut thread size (M22*1.5) and use the included hex head axle nut with a 1 1/4 inch hex size for proper torque application. Inspect the axle shaft splines for damage and confirm compatibility with the inboard female joint and outboard conventional joint styles. Properly seat the neoprene boot to prevent contamination and extend service life. Follow manufacturer torque specifications for the stake locking axle nut to ensure secure fastening.
Quality Assurance and Warranty
The TrakMotive AAR CV Axle Shaft SB-8001 is a new, not remanufactured, component built to meet or exceed OEM standards. Manufactured with durable materials including a neoprene boot and precision-machined splines, this axle shaft is designed for long-term reliability. Warranty details should be confirmed with the product provider, as they may vary.
| Brand | TrakMotive |
| Part Number | SB-8001 |
| Position | AAR CV Axle Shaft, Front |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.93 |
| Overall Compressed Length (mm) | 684 |
This part fits 22 vehicles. Search below:
| Year | Make | Model | Submodel | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Subaru | Impreza | L | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | ||
| 2000 | Subaru | Forester | Front | Before 02/00; AAR CV Axle Shaft | |||
| 2000 | Subaru | Impreza | L | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | ||
| 1999 | Subaru | Forester | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1999 | Subaru | Impreza | L | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | ||
| 1999 | Subaru | Legacy | Manual | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | ||
| 1998 | Subaru | Forester | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1998 | Subaru | Impreza | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1998 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1997 | Subaru | Impreza | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1997 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1996 | Subaru | Impreza | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1996 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1995 | Subaru | Impreza | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1995 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1994 | Subaru | Impreza | FWD | Automatic | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |
| 1994 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1993 | Subaru | Impreza | FWD | Automatic | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |
| 1993 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1992 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1991 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 1990 | Subaru | Legacy | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
