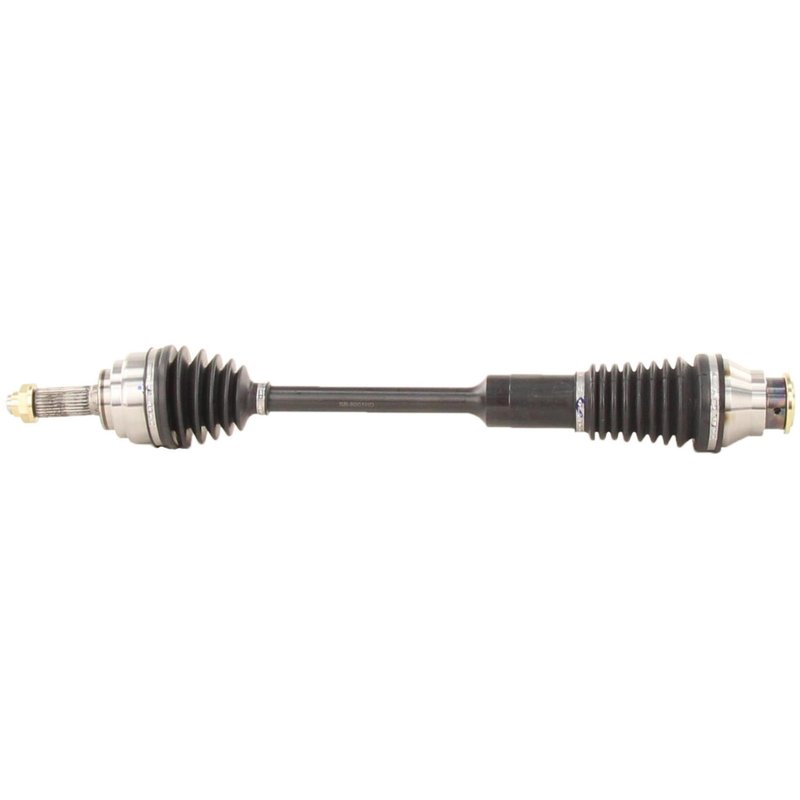

TrakMotive SB-8001XTT CV Axle Shaft - Front Left or Front Right
Overview of TrakMotive Extended Travel CV Axle Shaft SB-8001XTT
The TrakMotive Extended Travel CV Axle Shaft SB-8001XTT is engineered for Subaru Forester, Impreza, and Legacy models requiring reliable driveline performance. Designed to accommodate extended suspension travel, this CV axle shaft ensures consistent power delivery and durability under demanding conditions.
- Compatible with Subaru Forester, Impreza, and Legacy
- Part Number: SB-8001XTT
- Axle nut included with stake locking type
- Neoprene boot material for enhanced durability
- Female inboard joint with 25 splines and conventional outboard joint with 27 splines
- Overall compressed length of 26.93 inches (684 mm)
- Hex axle nut head type with 1 1/4 inch (31.8 mm) hex size
Features and Specifications
This CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, extending the life of the joint. The inboard joint is female type with 25 splines, while the outboard joint is conventional with 27 splines, ensuring proper fit and function with the specified Subaru models. The included axle nut is a hex head type, measuring 1 1/4 inches across flats, with a stake locking mechanism to secure the assembly. The overall compressed length of 26.93 inches (684 mm) is designed to accommodate extended suspension travel without compromising driveline integrity.
About the Extended Travel CV Axle Shaft Line
The TrakMotive Extended Travel CV Axle Shaft product line is specifically designed for vehicles that require additional axle length due to suspension modifications or lifted setups. This line provides enhanced axle travel capability while maintaining OEM-level fitment and performance. The SB-8001XTT model is part of this line, offering a balance of durability and compatibility for Subaru Forester, Impreza, and Legacy models.
Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Subaru Forester, Impreza, and Legacy
- Addresses issues related to extended suspension travel in lifted or modified vehicles
- Eliminates axle binding or premature joint wear caused by insufficient axle length
- Restores smooth power transfer and reduces driveline vibrations
- Prevents boot damage and grease leakage with durable neoprene material
Installation Notes and Tips
- Ensure compatibility with vehicle make and model before installation
- Use the included hex axle nut with stake locking to secure the axle shaft
- Inspect surrounding suspension components for wear during replacement
- Properly torque axle nut to manufacturer specifications to avoid loosening
- Check boot condition and joint movement after installation for smooth operation
Quality Assurance and Warranty
The TrakMotive Extended Travel CV Axle Shaft SB-8001XTT is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and a stake-type locking axle nut for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Subaru Forester, Impreza, and Legacy vehicles.
| Brand | TrakMotive |
| Part Number | SB-8001XTT |
| Position | Extended Travel CV Axle Shaft, Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.93 |
| Overall Compressed Length (mm) | 684 |
This part fits 48 vehicles. Search below:
| Year | Make | Model | Submodel | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Subaru | Impreza | L | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2001 | Subaru | Impreza | L | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2000 | Subaru | Forester | Front Right | Before 02/00; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2000 | Subaru | Forester | Front Left | Before 02/00; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2000 | Subaru | Impreza | L | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2000 | Subaru | Impreza | L | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1999 | Subaru | Forester | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1999 | Subaru | Forester | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1999 | Subaru | Impreza | L | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1999 | Subaru | Impreza | L | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1999 | Subaru | Legacy | Manual | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1999 | Subaru | Legacy | Manual | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1998 | Subaru | Forester | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1998 | Subaru | Forester | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1998 | Subaru | Impreza | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1998 | Subaru | Impreza | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1998 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1998 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1997 | Subaru | Impreza | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1997 | Subaru | Impreza | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1997 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1997 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1996 | Subaru | Impreza | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1996 | Subaru | Impreza | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1996 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1996 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1995 | Subaru | Impreza | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1995 | Subaru | Impreza | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1995 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1995 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1994 | Subaru | Impreza | FWD | Automatic | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |
| 1994 | Subaru | Impreza | FWD | Automatic | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |
| 1994 | Subaru | Impreza | AWD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1994 | Subaru | Impreza | AWD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1994 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1994 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1993 | Subaru | Impreza | FWD | Automatic | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |
| 1993 | Subaru | Impreza | FWD | Automatic | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |
| 1993 | Subaru | Impreza | AWD | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1993 | Subaru | Impreza | AWD | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1993 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1993 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1992 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1992 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1991 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1991 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1990 | Subaru | Legacy | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1990 | Subaru | Legacy | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
