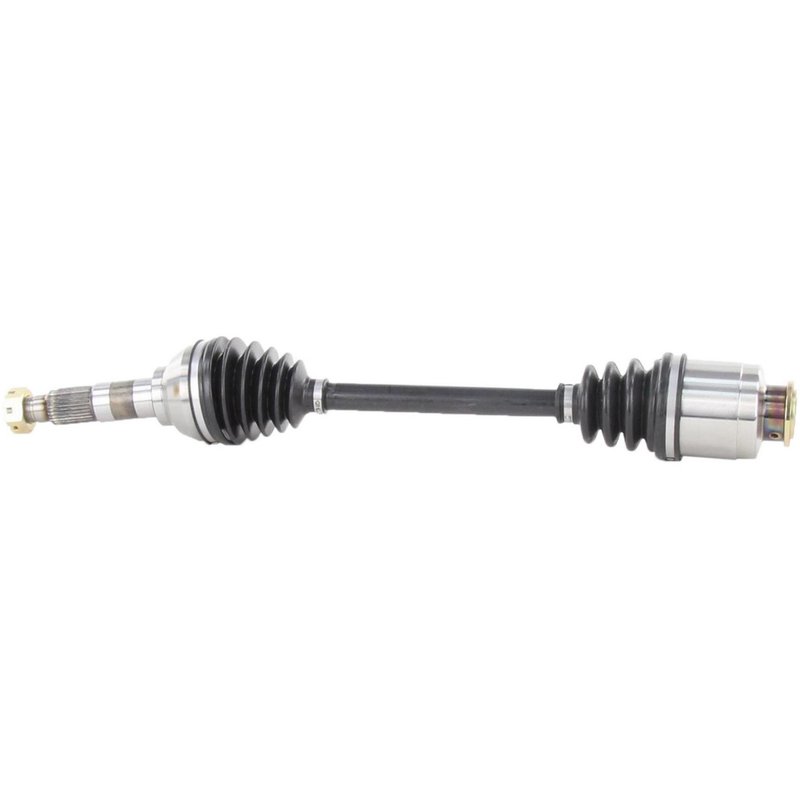

TrakMotive SB-8010 CV Axle Shaft - Front Left or Front Right

TrakMotive CV Axle Shaft SB-8010 Overview

The TrakMotive CV Axle Shaft SB-8010 is designed specifically for Subaru Standard models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Subaru Standard models
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Includes axle nut with cotter pin locking mechanism
• Hex head axle nut with 35.5 mm hex size
• Overall compressed length of 25.47 inches (647 mm)
• Female inboard joint with 23 splines and conventional outboard joint with 30 splines

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. This line emphasizes precise fitment and quality materials, such as neoprene boots and secure axle nut designs, to maintain driveline integrity and vehicle safety. The SB-8010 model exemplifies these standards with its detailed specifications and Subaru compatibility.

Detailed Product Description

The SB-8010 CV axle shaft features a neoprene boot that resists wear and environmental damage, helping to protect the joint from contaminants. The inboard joint is a female type with 23 splines, while the outboard joint is conventional with 30 splines, ensuring proper torque transfer and smooth operation. The included axle nut is a hex head type measuring 35.5 mm across flats, with a height of 17.5 mm and a length of 41 mm. It uses a cotter pin locking mechanism for secure installation. The overall compressed length of 25.47 inches (647 mm) matches Subaru Standard specifications for direct replacement.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Subaru Standard models
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by replacing torn or degraded boots
• Restores driveline stability and vehicle handling performance

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the old axle shaft carefully, noting the cotter pin and hex nut locking mechanism. Use the included axle nut and cotter pin to secure the new SB-8010 axle shaft. Verify spline engagement on both inboard and outboard joints to avoid premature wear. Proper torque specifications should be followed according to Subaru service guidelines.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SB-8010 is a new part manufactured to meet OEM standards for Subaru Standard vehicles. It includes a neoprene boot for durability and a secure axle nut with cotter pin locking. While specific warranty details are not provided, TrakMotive parts typically adhere to industry quality controls to ensure reliable performance and fitment.
