OE Quality
60-Day Returns
TrakMotive

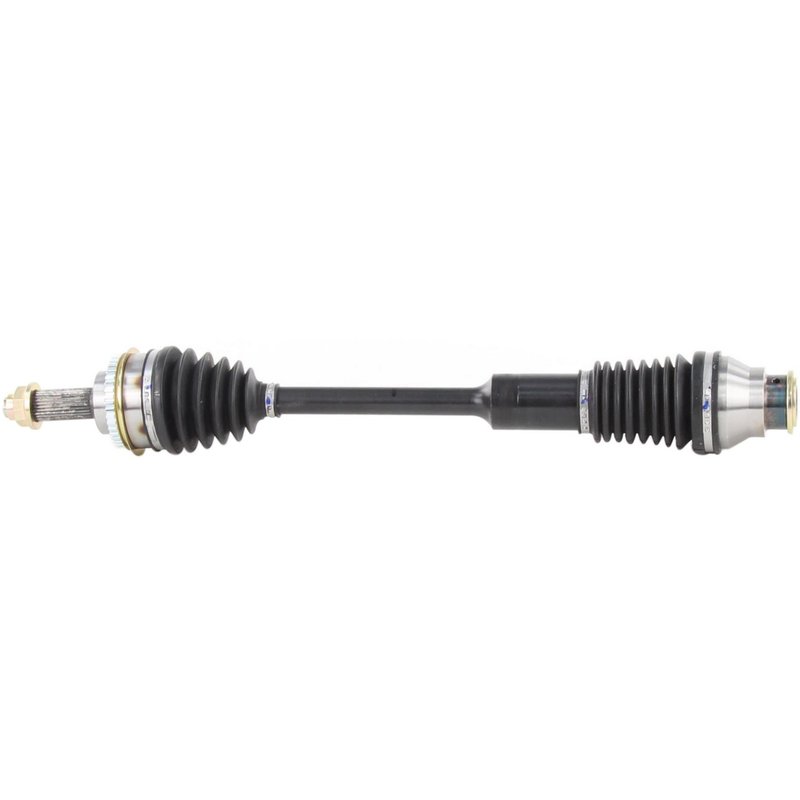

Extended Travel CV Axle ShaftTrakMotive SB-8011XTT CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SB-8011XTT |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.81 |
| Overall Compressed Length (mm) | 681 |
| Product line | Extended Travel CV Axle Shaft |
| Fits | Subaru · 68 vehicles |
Extended travel design. Sliding center bar provides up to 44mm more travel than an OEM CV shaft.
Greater articulation angle. CV joints reach up to 47 degrees for more suspension movement.
New CV axle shaft. Includes a neoprene boot and a toothed ABS tone ring.
Cross-references TrakMotive SB-8011XTT for the same application. See all 1.
$171.57Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
Extended Travel CV Axle for Subaru Front Applications
The TrakMotive Extended Travel CV Axle Shaft SB-8011XTT is built for Subaru front-drive applications that need more suspension movement than a standard OE axle can provide. It is a new CV axle shaft with an extended-travel design for vehicles used in extreme articulation conditions.
Compatible With 1999-2006 Subaru Impreza, Legacy, Outback, Baja, and Forester front left or front right positions, depending on model year and application details.
Key Features
- Extended travel design with a sliding center bar for up to 44 mm more travel than a typical OEM CV shaft
- CV joints engineered for up to 47 degrees of articulation, compared with a typical 23-degree OE joint angle
- New CV axle shaft with neoprene boot material
- Includes axle nut and ABS tone ring
- ABS ring tooth count: 44
- Inboard joint type: female; outboard joint type: conventional
- Overall compressed length: 26.81 in. (681 mm)
- Axle nut thread size: M22 x 1.5; hex size: 32 mm
Product Details
TrakMotive SB-8011XTT is part of the Extended Travel CV Axle Shaft line, a product line focused on driveline service for vehicles that operate at greater suspension angles than standard street use. This axle is built to address front axle movement demands in Subaru Impreza, Legacy, Outback, Baja, and Forester applications where additional plunge and articulation are required. The extended-travel center bar and high-angle CV joint design help maintain driveline engagement through suspension travel changes.
This part cross-references TrakMotive SB-8011XTT for the same application.
What It Helps Address
- Front axle binding during suspension droop or compression
- CV joint angle limitations on lifted or high-articulation Subaru setups
- Axle plunge issues caused by increased suspension travel
- ABS signal concerns when replacing a worn axle with an integrated tone ring design
- Noise or vibration from a worn front CV axle shaft
Installation Notes
- Fits 2003-2006 Subaru Baja, front right and front left
- Fits 2004 Subaru Impreza, front right and front left, to 9/03
- Fits 1999-2004 Subaru Legacy, front right and front left
- Fits 2004 Subaru Outback, front right and front left
- Fits 2000-2002 Subaru Outback, front right and front left
- Fits 1999-2003 Subaru Impreza, front right and front left
- Fits 2003 Subaru Impreza, front right and front left, to 9/03
- Fits 2003 Subaru Outback, front right and front left, to 9/03
- Fits 2001-2002 Subaru Forester, front right and front left
- Fits 2000 Subaru Forester, front right and front left, from 02/00
Verify axle nut thread size, spline count, and position before installation. Always confirm the vehicle build date where noted, especially for 2000 Subaru Forester, 2003 Subaru Impreza, and 2004 Subaru Impreza applications. Replace in pairs when servicing the front axle system to maintain balanced driveline operation.
Quality Assurance
TrakMotive SB-8011XTT is a new replacement CV axle shaft built to published fitment and dimensional specifications for Subaru front applications. The design includes an ABS tone ring, correct spline counts, and application-specific joint configuration for direct service use.
This part fits 68 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Subaru | Baja | — | — | Manual | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Baja | — | — | Manual | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Baja | — | — | Automatic | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Baja | — | — | Automatic | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Baja | — | — | Manual | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Baja | — | — | Manual | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Baja | — | — | Automatic | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Baja | — | — | Automatic | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Baja | — | — | Manual | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Baja | — | — | Manual | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Baja | — | — | Automatic | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Baja | — | — | Automatic | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Impreza | — | Wagon | — | Front Right | For Extreme Articulation; Always Replace in Pairs; To 9/03; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Impreza | — | Wagon | — | Front Left | For Extreme Articulation; Always Replace in Pairs; To 9/03; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Legacy | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Legacy | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Outback | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Outback | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Baja | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Baja | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Impreza | WRX | Wagon | Manual | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Impreza | WRX | Wagon | Manual | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Impreza | TS | — | — | Front Right | To 9/03; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Impreza | TS | — | — | Front Left | To 9/03; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Impreza | Outback | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Impreza | Outback | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Legacy | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Legacy | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Outback | — | — | — | Front Right | To 9/03; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Outback | — | — | — | Front Left | To 9/03; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Forester | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Forester | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Impreza | WRX | Wagon | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Impreza | WRX | Wagon | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Impreza | TS | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Impreza | TS | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Impreza | Outback | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Impreza | Outback | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Legacy | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Legacy | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Outback | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Outback | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Forester | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Forester | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Impreza | RS | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Impreza | RS | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Impreza | Outback | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Impreza | Outback | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Legacy | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Legacy | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Outback | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2001 | Subaru | Outback | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Forester | — | — | — | Front Right | From 02/00; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Forester | — | — | — | Front Left | From 02/00; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Impreza | RS | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Impreza | RS | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Impreza | Outback | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Impreza | Outback | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Legacy | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Legacy | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Outback | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2000 | Subaru | Outback | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 1999 | Subaru | Impreza | RS | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 1999 | Subaru | Impreza | RS | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 1999 | Subaru | Impreza | Outback | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 1999 | Subaru | Impreza | Outback | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 1999 | Subaru | Legacy | — | — | Automatic | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 1999 | Subaru | Legacy | — | — | Automatic | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| No rows match your filter. | |||||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
