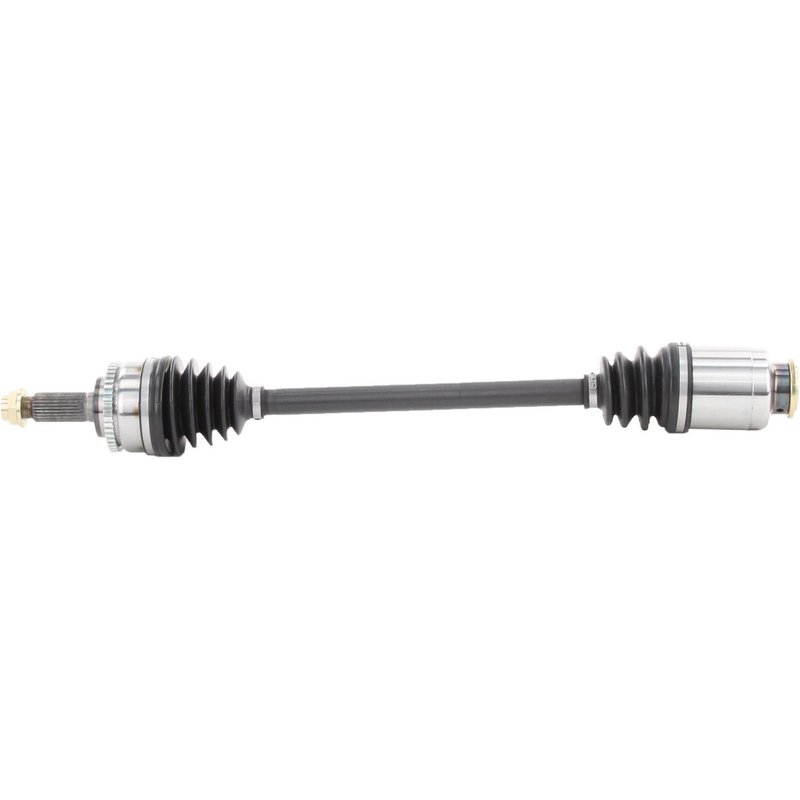

TrakMotive SB-8014 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft SB-8014 for Subaru Impreza

The TrakMotive CV Axle Shaft SB-8014 is engineered specifically for Subaru Impreza models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Subaru Impreza vehicles
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for durability and protection
• Stake locking axle nut included with M22*1.5 thread size
• Overall compressed length of 27.28 inches (693 mm)
• Female inboard joint with 25 splines and conventional outboard joint with 27 splines
• Hex head axle nut measuring 1 1/4 inch (31.8 mm) across flats

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV Axle Shaft line emphasizes quality materials such as neoprene boots and includes essential hardware like the stake locking axle nut. The inclusion of an ABS tone ring supports vehicle safety systems, making it suitable for Subaru Impreza models requiring reliable CV joint performance.

Technical Specifications and Features

This CV Axle Shaft features a 44-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is female type with 25 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with Subaru Impreza driveline components. The axle nut is a hex head type, 1 1/4 inch (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inch (34.4 mm), featuring a stake locking mechanism for secure installation.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Subaru Impreza
• Restoring proper ABS sensor function with included tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing grease leaks caused by torn or degraded boots
• Ensuring secure axle nut fitment with included locking hardware

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SB-8014 on a Subaru Impreza, verify the spline counts and joint types match the vehicle specifications. Use the included stake locking axle nut to secure the axle shaft properly, ensuring the nut is staked after torqueing to prevent loosening. Inspect the neoprene boot for any damage during installation and apply appropriate grease to the joints. Proper alignment and torque specifications should be followed according to Subaru service manuals.

Quality Assurance and Warranty Information

This CV Axle Shaft is a new, OEM-quality replacement part designed to meet or exceed factory standards. The inclusion of the ABS tone ring and stake locking axle nut reflects attention to detail in safety and durability. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in Subaru Impreza driveline repairs.
