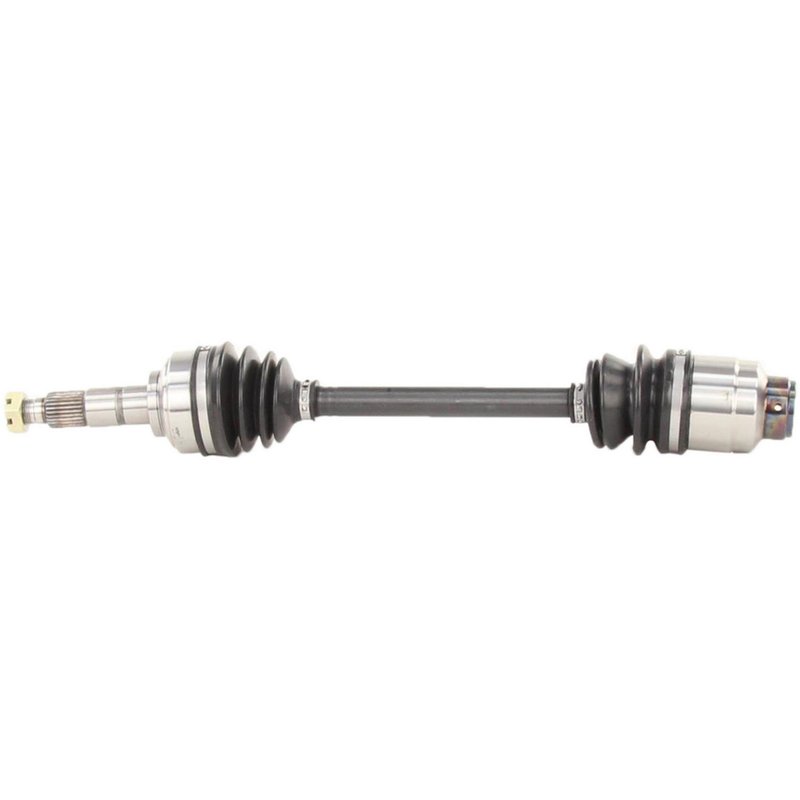

TrakMotive SB-8027 CV Axle Shaft - Front Left or Front Right

Overview of the TrakMotive CV Axle Shaft SB-8027

The TrakMotive CV Axle Shaft SB-8027 is a new replacement part designed for driveline and axle repairs. Engineered with precision, this CV axle shaft is built to restore proper vehicle drivability and performance for compatible makes and models.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: SB-8027
• Axle Nut Included with Cotter Pin Locking Type
• Neoprene Boot Material for Durability
• Inboard Joint Type: Female with 23 Splines
• Outboard Joint Type: Conventional with 27 Splines
• Overall Compressed Length: 22.13 inches (562 mm)
• Axle Nut Hex Size: 1 1/6 inches (29.8 mm)
• Axle Nut Thread Size: M20*1.5

Detailed Product Features and Specifications

The TrakMotive CV Axle Shaft SB-8027 is part of the CV Axle Shaft product line, which focuses on delivering reliable constant velocity joint components for driveline repairs. This new axle shaft features a neoprene boot that offers resistance to wear and environmental factors, ensuring long-lasting protection of the joint. The inboard joint uses a female connection style with 23 splines, while the outboard joint is conventional with 27 splines, providing compatibility with specific vehicle drivetrains.

The included axle nut is a hex head type measuring 1/2 inch (13 mm) in height and 1 1/6 inches (29.8 mm) across the flats, with a length of 1 1/3 inches (34.4 mm). It uses a cotter pin locking mechanism and has an M20*1.5 thread size, ensuring secure fastening during installation. The overall compressed length of 22.13 inches (562 mm) is designed to fit within the specified vehicle applications.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts causing vibration or noise
• Fixing torn or leaking CV boots to prevent grease loss and joint contamination
• Resolving axle shaft joint failure that leads to driveline binding or clicking sounds
• Addressing axle nut wear or damage affecting wheel security
• Restoring proper axle spline engagement for smooth power transfer

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SB-8027, ensure the axle nut is torqued to the vehicle manufacturer’s specifications and secured with the cotter pin to prevent loosening. Verify the spline counts and joint types match the vehicle’s original equipment to avoid fitment issues. The neoprene boot should be inspected for proper seating to maintain joint protection. It is recommended to use appropriate tools for hex nut installation and to check for any signs of wear on surrounding components during replacement.

Quality Assurance and Warranty Information

This CV axle shaft is a new, not remanufactured, component from TrakMotive, designed to meet or exceed OEM standards for durability and performance. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable operation in compatible vehicles. Always consult the product documentation or manufacturer for exact warranty terms.
