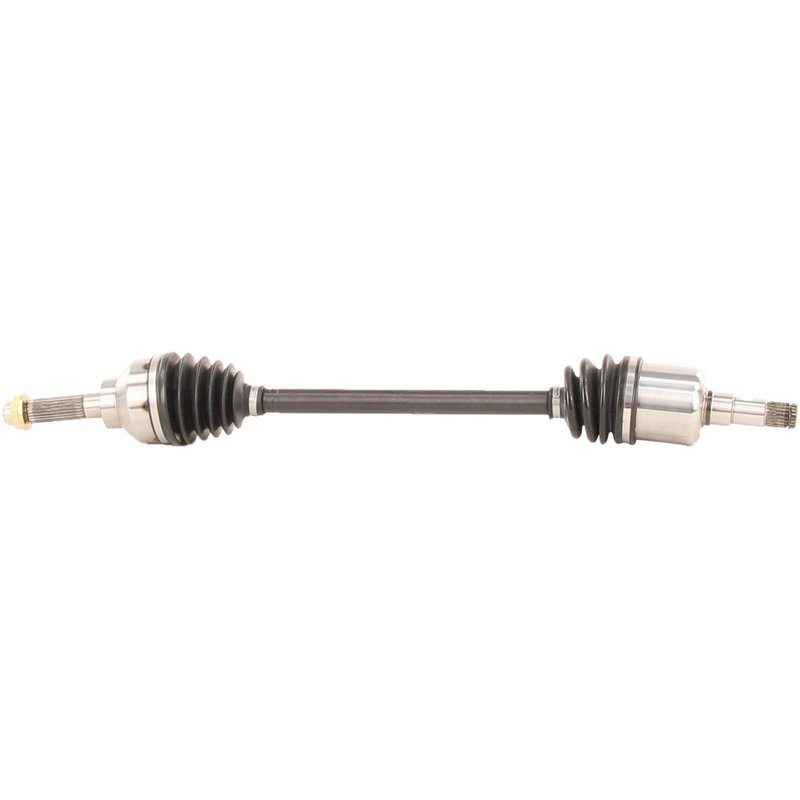

TrakMotive SB-8037 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive SB-8037 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30 |
| Overall Compressed Length (mm) | 762 |
| Product line | CV Axle Shaft |
| Fits | Subaru · 38 vehicles |
New axle shaft. Fresh replacement part with a conventional outboard joint.
Neoprene boot. Durable material helps protect the joint from wear and contamination.
Axle nut included. Comes with a hex nut for easier installation.
Cross-references Cardone New 66-7264, Cardone Reman 60-7264 and TrakMotive SB-8037 for the same application. See all 14.
TrakMotive CV Axle Shaft SB-8037
TrakMotive SB-8037 is a new CV axle shaft for Subaru rear driveline service, built for direct replacement on select Impreza and Legacy applications. It is specified for rear left and rear right positions and includes the axle nut for a more complete repair.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SB-8037
- New axle shaft construction
- Overall compressed length: 30 in. (762 mm)
- Inboard joint type: Male
- Outboard joint type: Conventional
- Boot material: Neoprene
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake-lock type
- No ABS tone ring included
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
This CV axle shaft is built for Subaru rear axle replacement where the original shaft has worn joints, torn boots, vibration, or driveline noise. The SB-8037 uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support dependable operation in rear driveline service. It cross-references Cardone New 66-7264 and Cardone Reman 60-7264 for the same application. Fits 1993-1999 Subaru Impreza, rear left and rear right; fits 1995-1999 Subaru Legacy, rear left and rear right; fits 2000 Subaru Impreza, rear left and rear right, thru 12/99.
Common Repair Uses
- Restores rear axle function after CV joint wear
- Addresses clicking, binding, or vibration from a damaged axle shaft
- Replaces a torn or leaking CV boot assembly
- Corrects driveline noise on Subaru Impreza rear axle service
- Supports repair of Subaru Legacy rear axle wear and looseness
Installation Notes
Verify rear left or rear right position before installation and confirm axle nut thread size, hex size, and locking style match the vehicle. Check spline counts, hub engagement, and overall compressed length against the original part before assembly. This axle is listed for non-ABS applications unless otherwise noted; no ABS tone ring is included.
Quality Assurance
TrakMotive manufactures this axle shaft under ISO 9001:1007 and TS 16949:2009 certified processes. SB-8037 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2000 | Subaru | Impreza | — | — | Automatic | — | — | Rear Right | Thru 12/99; CV Axle Shaft |
| 2000 | Subaru | Impreza | — | — | Automatic | — | — | Rear Left | Thru 12/99; CV Axle Shaft |
| 1999 | Subaru | Impreza | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1999 | Subaru | Impreza | — | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1999 | Subaru | Legacy | SUS 30th Anniversary | — | Automatic | 2.2L | H4 | Rear Right | CV Axle Shaft |
| 1999 | Subaru | Legacy | SUS 30th Anniversary | — | Automatic | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1999 | Subaru | Legacy | GT | — | Automatic | 2.2L | H4 | Rear Right | CV Axle Shaft |
| 1999 | Subaru | Legacy | GT | — | Automatic | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1998 | Subaru | Impreza | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1998 | Subaru | Impreza | — | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1998 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1998 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1998 | Subaru | Legacy | Postal | — | Automatic | 2.2L | H4 | Rear Right | CV Axle Shaft |
| 1998 | Subaru | Legacy | Postal | — | Automatic | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1998 | Subaru | Legacy | L | — | Automatic | 2.2L | H4 | Rear Right | CV Axle Shaft |
| 1998 | Subaru | Legacy | L | — | Automatic | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1997 | Subaru | Impreza | — | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1997 | Subaru | Impreza | — | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1997 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1997 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1997 | Subaru | Legacy | Postal | — | Automatic | 2.2L | H4 | Rear Right | CV Axle Shaft |
| 1997 | Subaru | Legacy | Postal | — | Automatic | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1997 | Subaru | Legacy | L | — | Automatic | 2.2L | H4 | Rear Right | CV Axle Shaft |
| 1997 | Subaru | Legacy | L | — | Automatic | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1996 | Subaru | Impreza | — | AWD | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1996 | Subaru | Impreza | — | AWD | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1996 | Subaru | Impreza | — | AWD | Manual | 1.8L | H4 | Rear Right | CV Axle Shaft |
| 1996 | Subaru | Impreza | — | AWD | Manual | 1.8L | H4 | Rear Left | CV Axle Shaft |
| 1996 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1996 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1995 | Subaru | Impreza | — | AWD | — | 1.8L | H4 | Rear Left | CV Axle Shaft |
| 1995 | Subaru | Impreza | — | AWD | Manual | 1.8L | H4 | Rear Right | CV Axle Shaft |
| 1995 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Right | CV Axle Shaft |
| 1995 | Subaru | Legacy | Brighton | — | Automatic | — | — | Rear Left | CV Axle Shaft |
| 1994 | Subaru | Impreza | — | AWD | — | — | — | Rear Right | CV Axle Shaft |
| 1994 | Subaru | Impreza | — | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 1993 | Subaru | Impreza | — | AWD | — | — | — | Rear Right | CV Axle Shaft |
| 1993 | Subaru | Impreza | — | AWD | — | — | — | Rear Left | CV Axle Shaft |
