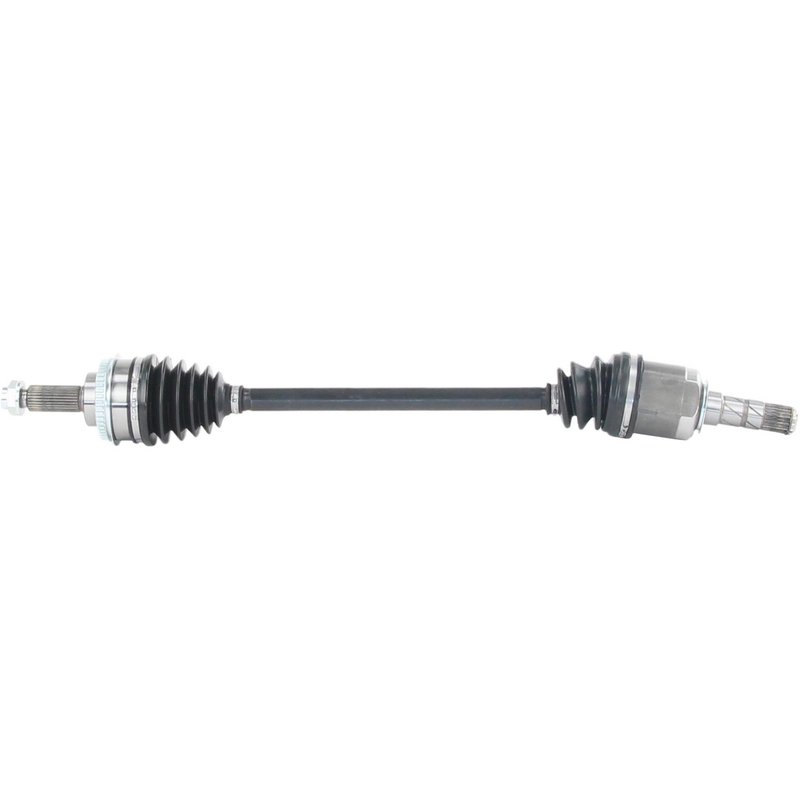

TrakMotive SB-8040 CV Axle Shaft - Front Left or Front Right

TrakMotive CV Axle Shaft for Subaru Fitments

The TrakMotive CV Axle Shaft SB-8040 is a new front axle assembly built for specific Subaru Forester and Subaru Impreza applications. It is engineered with a neoprene boot, a toothed ABS ring with 44 teeth, and included axle nut details to match the listed driveline requirements.

TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. For this application, SB-8040 is built as a front axle shaft for Subaru models with the listed spline counts, joint styles, and compressed length.

Key Features

• Part number: SB-8040
• New CV axle shaft for front axle replacement
• Fits front right and front left positions on listed Subaru applications
• Neoprene boot material for the CV joint assembly
• ABS tone ring included with 44-tooth toothed ring
• Male inboard shaft connection style
• Conventional outboard joint type and shaft connection style
• 25 inboard splines and 27 outboard splines
• Overall compressed length: 30.71 in. (780 mm)
• Axle nut included: M22 x 1.5 thread, 31.8 mm hex size, stake locking type

Detailed Description

SB-8040 is a TrakMotive CV axle shaft designed for Subaru Forester and Subaru Impreza front axle service where the listed dimensions and spline counts match the vehicle. It measures 30.71 inches compressed, uses a male inboard connection, and a conventional outboard joint layout. The included ABS tone ring and 44-tooth ring support applications that require wheel speed signal integration. This part cross-references Cardone New 66-7281 and Cardone Reman 60-7281 for the same application.

Compatible with 2003-2008 Subaru Forester, front right; 2003-2008 Subaru Forester, front left; 2007 Subaru Impreza, front right; 2004 Subaru Impreza, front right; 2007 Subaru Impreza, front left; 2006 Subaru Impreza, front right, exc. STi; 2006 Subaru Impreza, front left, exc. STi; 2005 Subaru Impreza, front right, standard duty; 2005 Subaru Impreza, front left, standard duty; 2004 Subaru Impreza, front right, from 9/03; and 2004 Subaru Impreza, front left, from 9/03.

Common Replacement Uses

• Front axle noise from worn CV joints
• Clicking during turns on Subaru Forester or Subaru Impreza
• Vibration under acceleration from a worn axle shaft
• Boot damage that has led to grease loss and joint wear
• ABS-related axle replacement where the tone ring is required

Installation Notes and Tips

Verify spline count, compressed length, axle nut thread size, and ABS ring requirements before installation. Confirm whether the vehicle is front right or front left and match the listed year, model, and notes exactly, especially for 2004-2006 Subaru Impreza applications with trim or production-date restrictions. Inspect hub, seals, and related suspension components during axle replacement to help prevent repeat driveline noise.

Quality Assurance

TrakMotive lists this CV axle shaft as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification.
