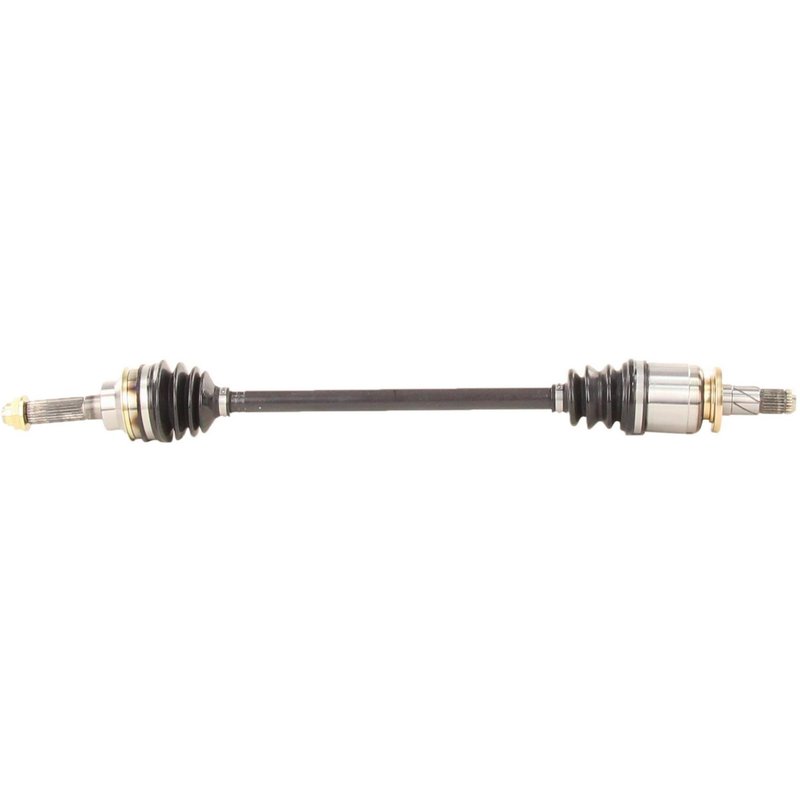

TrakMotive SB-8041 CV Axle Shaft - Rear Left
| Brand | TrakMotive SB-8041 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 29.84 |
| Overall Compressed Length (mm) | 758 |
| Product line | CV Axle Shaft |
| Fits | Subaru and Saab · 19 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a hex nut for installation.
Cross-references AP Exhaust 7304, Protech CV SB10501 and TrakMotive SB-8041 for the same application. See all 16.
CV Axle Shaft for Subaru Rear Left Applications
TrakMotive SB-8041 is a new CV axle shaft built for rear left driveline service on select Subaru and Saab applications. It is specified for vehicles that need a direct replacement axle with the correct spline counts, compressed length, and axle nut details for proper fitment.
- New CV axle shaft for rear left position
- Overall compressed length: 29.84 in. (758 mm)
- Inboard joint type: male; outboard joint type: conventional
- Inboard splines: 25; outboard splines: 24
- Neoprene boot material
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- ABS tone ring not included
Product Line Details
As part of TrakMotive’s CV Axle Shaft line, SB-8041 is focused on replacement driveline fitment with application-specific dimensions and connection styles. The part is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company, and it is backed by a limited lifetime warranty.
Detailed Description
TrakMotive SB-8041 is a replacement CV axle shaft for rear left service on 1995-2000 Subaru Impreza, 1998-2002 Subaru Forester, 1995-1999 Subaru Legacy, and 2006-2007 Subaru Impreza, plus 2006 Saab 9-2X. This Subaru rear left CV axle shaft is built with a male inboard shaft connection, conventional outboard connection, 25 inboard splines, and 24 outboard splines to match the listed applications. The included axle nut uses an M22 x 1.5 thread with a 1 1/4 in. hex size and stake locking design. SB-8041 is also referenced as a direct replacement for select cross-reference numbers in the aftermarket, including Monroe Shocks & Struts 172286 and 182286 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn rear axle joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive drivetrain play from spline or joint wear
- Noise from a failing rear left CV axle on Subaru Impreza, Forester, or Legacy models
Installation Notes and Tips
Verify rear left fitment by year, model, and spline count before installation. Confirm axle nut thread size, hex size, and locking style match the vehicle specification. Inspect hub, bearing, and seal surfaces during replacement, and replace any worn related components before final assembly. ABS tone ring is not included, so confirm the vehicle does not require one for the application.
Quality Assurance
TrakMotive manufactures this axle shaft under ISO 9001:1007 and TS 16949:2009 quality systems. SB-8041 includes a limited lifetime warranty.
| Year | Make | Model | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2007 | Subaru | Impreza | Wagon | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 2006 | Saab | 9-2X | — | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 2006 | Subaru | Impreza | Wagon | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 2002 | Subaru | Forester | — | — | — | — | — | Rear Left | CV Axle Shaft |
| 2001 | Subaru | Forester | — | — | — | — | — | Rear Left | CV Axle Shaft |
| 2000 | Subaru | Forester | — | — | — | — | — | Rear Left | CV Axle Shaft |
| 2000 | Subaru | Impreza | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1999 | Subaru | Forester | — | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 1999 | Subaru | Impreza | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1999 | Subaru | Legacy | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1998 | Subaru | Forester | — | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 1998 | Subaru | Impreza | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1998 | Subaru | Legacy | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1997 | Subaru | Impreza | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1997 | Subaru | Legacy | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1996 | Subaru | Impreza | — | AWD | Manual | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1996 | Subaru | Legacy | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
| 1995 | Subaru | Impreza | — | AWD | — | 2.2L | H4 | Rear Left | CV Axle Shaft |
| 1995 | Subaru | Legacy | — | — | Manual | — | — | Rear Left | CV Axle Shaft |
