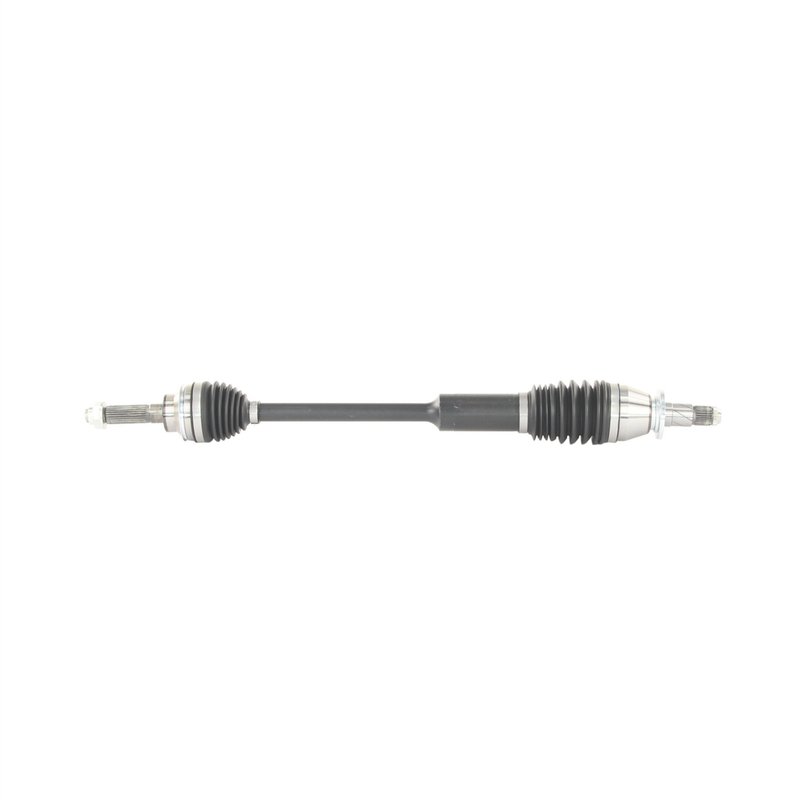

TrakMotive SB-8044XTT CV Axle Shaft - Rear Right
| Brand | TrakMotive SB-8044XTT |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.63 |
| Overall Compressed Length (mm) | 778 |
| Overall Extended Length (in) | 32.6 |
| Overall Extended Length (mm) | 828 |
| Product line | Extended Travel CV Axle Shaft |
| Fits | Subaru · 12 vehicles |
Extended travel design. Sliding center bar adds up to 44 mm more travel than a typical OEM shaft.
High articulation angle. CV joints reach up to 47 degrees for greater movement range.
Premium construction. Thermoplastic boots and spline connections support durable driveline performance.
Cross-references TrakMotive SB-8044XTT for the same application. See all 1.
Extended Travel Rear Right CV Axle
TrakMotive SB-8044XTT is an extended travel CV axle shaft for the rear right position on select Subaru applications. It is built for Subaru Forester and Subaru Impreza fitments where additional suspension movement and joint articulation are needed.
The Extended Travel CV Axle Shaft line uses a sliding center bar to provide up to 44 mm more travel than a standard OEM CV shaft. The CV joints are engineered for up to 47 degrees of articulation, compared with a typical 23-degree OE joint angle.
Key Features
- Part number: SB-8044XTT
- Extended travel CV axle shaft for rear right installation
- Sliding center bar design for increased suspension travel
- Up to 44 mm more travel than an OEM CV shaft
- Up to 47-degree CV joint articulation
- Premium grade construction
- Inboard joint type: male, with 25 inboard splines
- Outboard joint type: conventional, with 24 outboard splines
- Thermoplastic boot material on inboard and outboard joints
- Axle nut included; M22x1.5 thread, 32 mm hex size
Detailed Description
TrakMotive SB-8044XTT is designed for drivers who need an extended travel rear right CV axle shaft for Subaru suspension setups. It measures 778 mm compressed and 828 mm extended, and its increased articulation range helps the axle operate through greater suspension movement than a typical OE-style shaft. This makes it a direct-fit driveline service part for select Subaru Forester and Subaru Impreza rear right applications.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or binding from a worn rear right CV axle
- Axle stress caused by increased suspension travel
- Driveline vibration related to CV joint wear
- Loss of smooth power transfer at the rear wheel
- Fitment needs for lifted or travel-increased Subaru suspension setups
Installation Notes
- Fits 2003-2004 Subaru Forester, rear right.
- Fits 2005 Subaru Forester, rear right, thru 01/14/05.
- Fits 2006-2008 Subaru Forester, rear right.
- Fits 2002-2007 Subaru Impreza, rear right.
- Always replace in pairs when servicing the axle on these applications.
- Verify spline count, axle nut thread size, and position before installation.
Quality Assurance
TrakMotive positions this axle in its premium grade driveline lineup and builds it with thermoplastic boots and extended-travel geometry for demanding Subaru rear suspension applications. Part number SB-8044XTT is engineered to meet the fitment and dimensional requirements listed above.
| Year | Make | Model | Submodel | Body Type | # Doors | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2008 | Subaru | Forester | — | — | — | AWD | — | — | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Forester | — | — | — | — | — | — | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Impreza | WRX STI | Sedan | — | — | 2.5L | H4 | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Forester | — | — | — | — | — | — | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Impreza | WRX STI | Sedan | — | — | 2.5L | H4 | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Forester | — | — | — | — | — | — | Rear Right | Thru 01/14/05; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Impreza | RS | Sedan | 4 Door | — | 2.5L | H4 | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Forester | — | — | — | — | — | — | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2004 | Subaru | Impreza | RS | Sedan | 4 Door | — | 2.5L | H4 | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Forester | — | — | — | — | — | — | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2003 | Subaru | Impreza | RS | Sedan | 4 Door | — | 2.5L | H4 | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2002 | Subaru | Impreza | RS | Sedan | 4 Door | — | 2.5L | H4 | Rear Right | Always Replace in Pairs; Extended Travel CV Axle Shaft |
