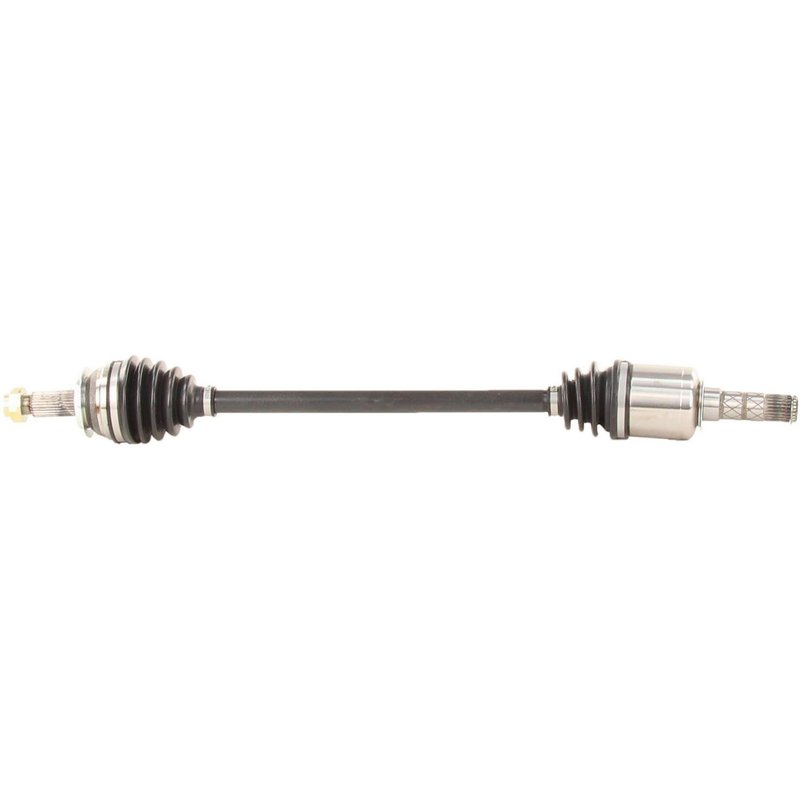

TrakMotive SB-8047 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SB-8047 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.63 |
| Overall Compressed Length (mm) | 778 |
| Product line | CV Axle Shaft |
| Fits | Subaru · 56 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Stake-lock design with a hex head for secure installation.
Cross-references AMS Automotive 4146, Cardone New 66-7355 and Cardone Reman 60-7310 for the same application. See all 30.
CV Axle Shaft for Subaru Impreza, Legacy, Outback
TrakMotive SB-8047 is a new CV axle shaft built for front axle service on select Subaru Impreza, Legacy, and Outback applications. It is specified with a male inboard connection, conventional outboard joint, neoprene boot material, and includes the axle nut for the listed applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SB-8047
- New replacement axle shaft
- Male inboard shaft connection with 25 inboard splines
- Conventional outboard shaft connection with 27 outboard splines
- Overall compressed length: 30.63 in. (778 mm)
- Neoprene boot material for driveline service
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- No ABS tone ring included
- Limited Lifetime Warranty
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Detailed Description
TrakMotive SB-8047 is a front CV axle shaft for Subaru driveline repair, engineered for the listed Impreza, Legacy, and Outback fitments. This axle shaft uses a male inboard joint and a conventional outboard joint, with dimensions and spline counts matched to the application for proper installation and driveline engagement. The included axle nut and stake-lock design support a complete front axle replacement on the specified vehicles.
This part cross-references Cardone New 66-7355 and AMS Automotive 4146 for the same application. Fits 2008-2011 Subaru Impreza, front right; Fits 2008-2011 Subaru Impreza, front left; Fits 2008-2009 Subaru Legacy, front right; Fits 2005-2006 Subaru Legacy, front right; Fits 2005-2009 Subaru Legacy, front left; Fits 2008-2009 Subaru Legacy, front right, w/ Vehicle Dynamic Control; Fits 2008-2009 Subaru Legacy, front left, w/ Vehicle Dynamic Control; Fits 2005-2009 Subaru Outback, front right; Fits 2005-2009 Subaru Outback, front left; Fits 2007 Subaru Legacy, front right, Exc. B-Spec; Fits 2007 Subaru Legacy, front left, Exc. B-Spec.
Common Repair Uses
- Restores front-wheel driveline operation after CV axle wear
- Addresses clicking or popping during turns caused by joint wear
- Helps correct vibration from a damaged or imbalanced axle shaft
- Replaces a torn boot or grease-loss condition on the front axle
- Supports repair after spline, joint, or shaft damage
Installation Notes and Tips
Verify the vehicle position, spline count, and axle nut thread size before installation. This axle is listed for front right and front left applications depending on the Subaru model and year, so match the exact fitment row to the vehicle. Inspect hub, seal, and transmission-side engagement surfaces during service, and torque the axle nut to the vehicle manufacturer specification.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:1007 and TS 16949:2009 certified processes. SB-8047 is a new part and is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2011 | Subaru | Impreza | Outback Sport | — | — | 2.5L | H4 | Front Right | CV Axle Shaft |
| 2011 | Subaru | Impreza | Outback Sport | — | — | 2.5L | H4 | Front Left | CV Axle Shaft |
| 2011 | Subaru | Impreza | 2.5i | — | — | 2.5L | H4 | Front Right | CV Axle Shaft |
| 2011 | Subaru | Impreza | 2.5i | — | — | 2.5L | H4 | Front Left | CV Axle Shaft |
| 2010 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Right | CV Axle Shaft |
| 2010 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Left | CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5i | — | — | — | — | Front Right | CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5i | — | — | — | — | Front Left | CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Right | CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Left | CV Axle Shaft |
| 2009 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Right | CV Axle Shaft |
| 2009 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Left | CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5i | — | — | — | — | Front Right | CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5i | — | — | — | — | Front Left | CV Axle Shaft |
| 2009 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Right | CV Axle Shaft |
| 2009 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Left | CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Right | CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Left | CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Right | w/ Vehicle Dynamic Control; CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Left | w/ Vehicle Dynamic Control; CV Axle Shaft |
| 2009 | Subaru | Outback | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2009 | Subaru | Outback | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2008 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Right | CV Axle Shaft |
| 2008 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Left | CV Axle Shaft |
| 2008 | Subaru | Impreza | Sport | — | — | 2.5L | H4 | Front Right | CV Axle Shaft |
| 2008 | Subaru | Impreza | Sport | — | — | 2.5L | H4 | Front Left | CV Axle Shaft |
| 2008 | Subaru | Impreza | Outback Sport | — | — | 2.5L | H4 | Front Right | CV Axle Shaft |
| 2008 | Subaru | Impreza | Outback Sport | — | — | 2.5L | H4 | Front Left | CV Axle Shaft |
| 2008 | Subaru | Impreza | 2.5i | — | — | 2.5L | H4 | Front Right | CV Axle Shaft |
| 2008 | Subaru | Impreza | 2.5i | — | — | 2.5L | H4 | Front Left | CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Right | w/ Vehicle Dynamic Control; CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Left | w/ Vehicle Dynamic Control; CV Axle Shaft |
| 2008 | Subaru | Outback | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2008 | Subaru | Outback | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2007 | Subaru | Legacy | GT | — | — | — | — | Front Right | Exc. B-Spec; CV Axle Shaft |
| 2007 | Subaru | Legacy | GT | — | — | — | — | Front Left | Exc. B-Spec; CV Axle Shaft |
| 2007 | Subaru | Legacy | GT Limited | — | — | — | — | Front Right | Exc. B-Spec; CV Axle Shaft |
| 2007 | Subaru | Legacy | GT Limited | — | — | — | — | Front Left | CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i | AWD | Manual | — | — | Front Right | Exc. B-Spec; CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i | AWD | Manual | — | — | Front Left | Exc. B-Spec; CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i Special Edition | AWD | Manual | — | — | Front Right | Exc. B-Spec; CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i Special Edition | AWD | Manual | — | — | Front Left | Exc. B-Spec; CV Axle Shaft |
| 2007 | Subaru | Outback | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2007 | Subaru | Outback | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2006 | Subaru | Legacy | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2006 | Subaru | Legacy | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2006 | Subaru | Outback | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2006 | Subaru | Outback | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2005 | Subaru | Legacy | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2005 | Subaru | Legacy | — | — | — | — | — | Front Left | CV Axle Shaft |
| 2005 | Subaru | Outback | — | — | — | — | — | Front Right | CV Axle Shaft |
| 2005 | Subaru | Outback | — | — | — | — | — | Front Left | CV Axle Shaft |
